Hardware options installation 78
To install the component:
1. Power down the server (on page 23).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend the server from the rack (on page 23).
4. Remove the access panel (on page 24).

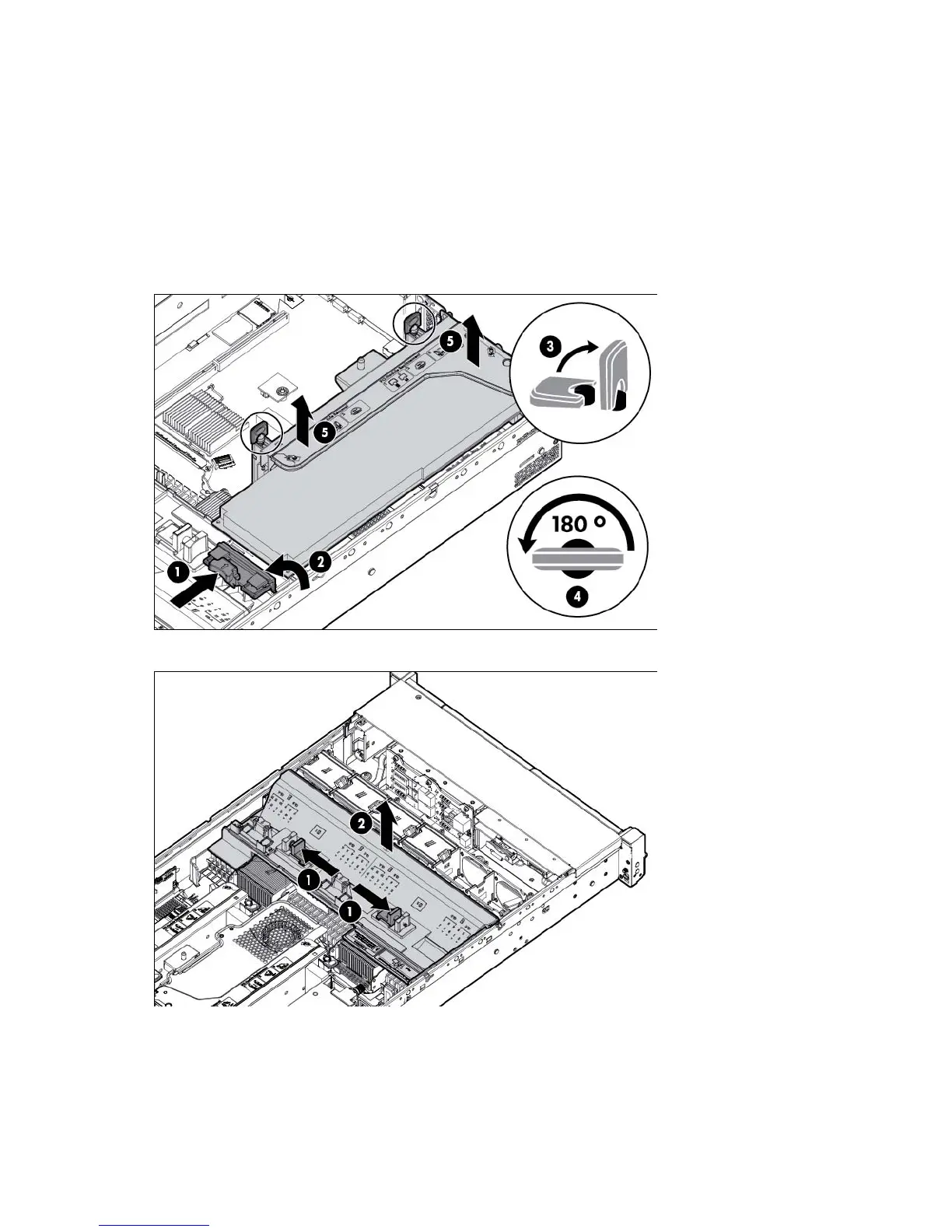

5. Release the full-length expansion board retainer, and then remove the PCI riser cage.
6. Remove the air baffle.
