Hardware options installation 26
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do the following:
a. Unlock the tower bezel (on page 14).
b. Remove the tower bezel (on page 14).
4. Place the server on its side.
5. Remove the access panel (on page 15).
6. Remove the air baffle (on page 17).

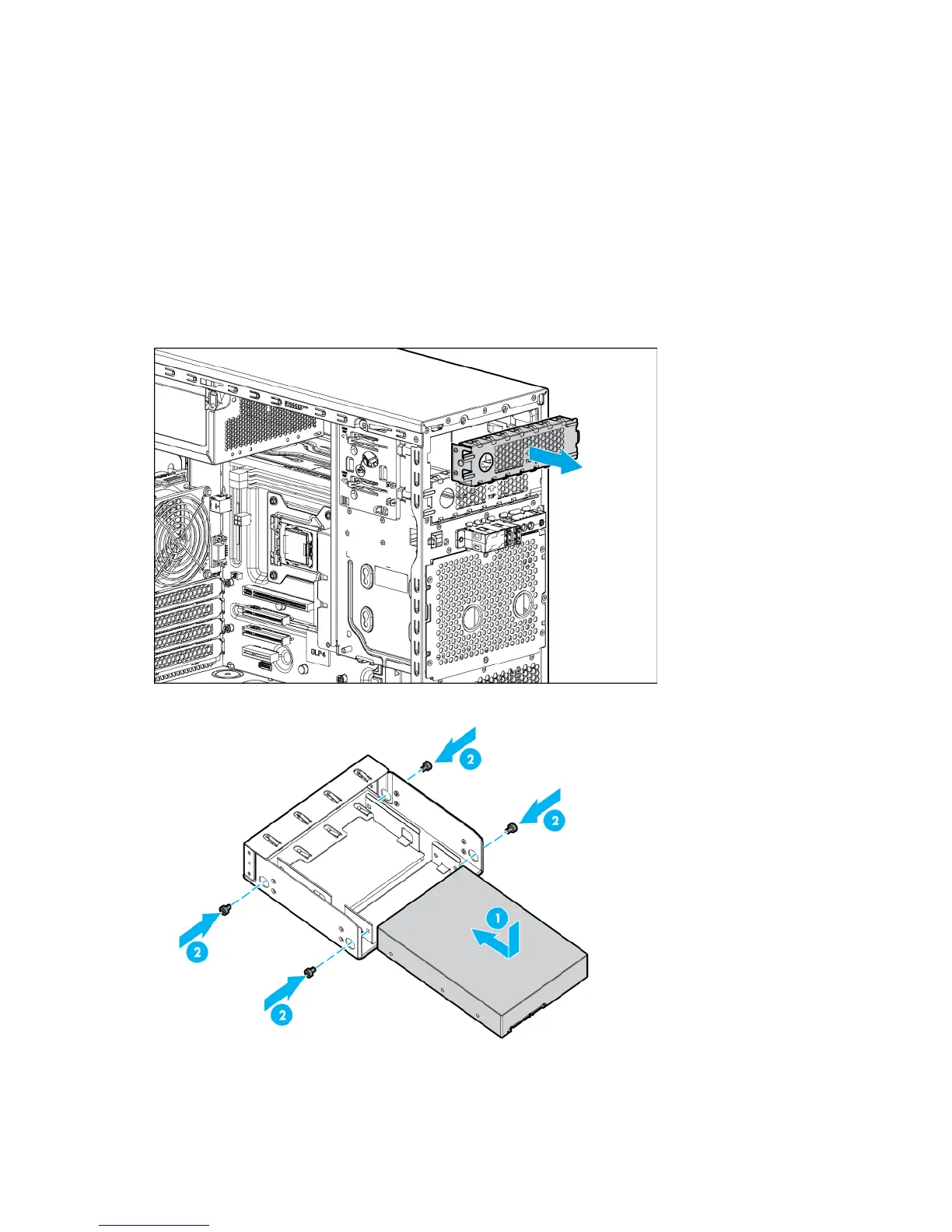

7. Remove the EMI shield.
8. Install the drive into the drive carrier and secure it with the T-15 screws.
