HP ProLiant ML10 v2 User Manual

Hardware options installation 33
Memory options
IMPORTANT: This server does not support mixing LRDIMMs, RDIMMs, or UDIMMs. Attempting
to mix any combination of these DIMMs can cause the server to halt during BIOS initialization.
The server supports dual-rank UDIMMs operating at a speed of up to 1600 MHz. Depending on the
processor model and the number of DIMMs installed, the memory clock speed might be reduced to 1333 or
1066 MHz. The server supports a maximum system memory of 32 GB, using 4-GB, and 8-GB UDIMMs.
HP SmartMemory
HP SmartMemory, introduced for Gen8 servers, authenticates and unlocks certain features available only on
HP Qualified memory and verifies whether installed memory has passed HP qualification and test processes.
Qualified memory is performance-tuned for HP ProLiant and BladeSystem servers and provides future
enhanced support through manageability software.
Certain performance features are unique with HP SmartMemory. The industry supports UDIMM at 2 DIMMs
per channel at 1066 MT/s. HP SmartMemory supports 2 DIMMs per channel at 1600 MT/s, or 25% greater
bandwidth.
DIMM identification

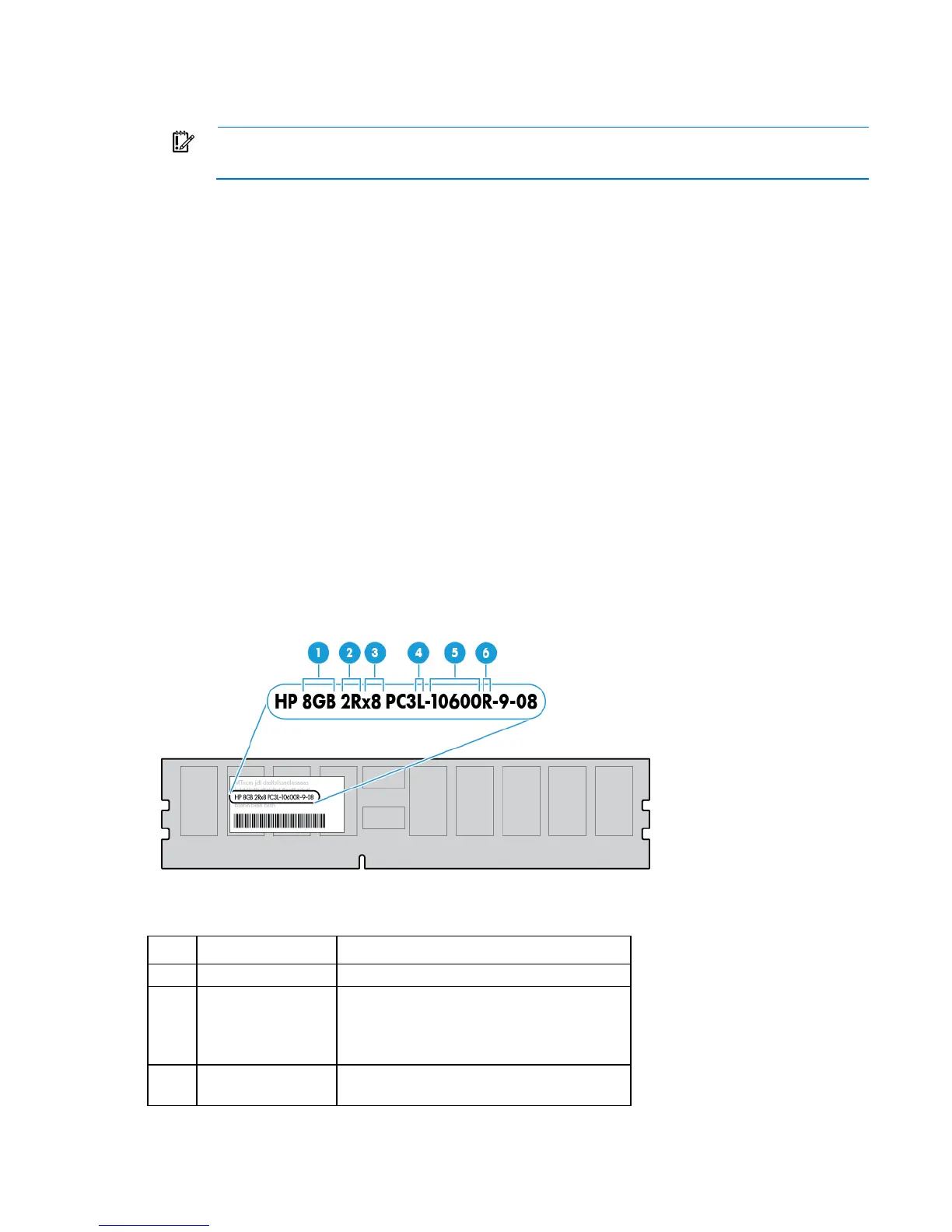

To determine DIMM characteristics, use the label attached to the DIMM and the following illustration and
table.
Item Description Definition
1
Size —
2
Rank 1R = Single-rank
2R = Dual-rank
3R = Three-rank
4R = Quad-rank
3
Data width x4 = 4-bit
x8 = 8-bit

HP ProLiant ML10 v2 Specifications

General

Bus type	DMI
Stepping	C0
FSB Parity	No
Scalability	1S
Processor cache	8 MB
Processor cores	4
Processor model	E3-1220V3
System bus rate	5 GT/s
Processor series	Intel Xeon E3-1200 v3
Processor socket	LGA 1150 (Socket H3)
Processor codename	Haswell
Motherboard chipset	Intel® C222
Processor frequency	3.1 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor front side bus	- MHz
Processor boost frequency	3.5 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
PCI Express configurations	1x8, 1x16, 2x4, 2x8
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Design Power (TDP)	80 W
Compatible processor series	Intel® Xeon®
Number of processors installed	1
Thermal solution specification	PCG 2013D
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
HDD size	3.5 \
HDD interface	-
SSD interface	Serial Attached SCSI (SAS)
Total storage capacity	1000 GB
Maximum storage capacity	24 TB
Memory slots	4x DIMM
Internal memory	8 GB
Memory clock speed	1600 MHz
Graphics card	G200
DVD interface type	SATA
Graphics card family	Matrox
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Serial ports quantity	0
USB 2.0 ports quantity	2
PCI Express slots version	3.0
Performance management	HP iLO
Compatible operating systems	Microsoft Windows Server\\r Canonical Ubuntu\\r Red Hat Enterprise Linux (RHEL)\\r SUSE Linux Enterprise Server (SLES)\\r VMware
Processor ARK ID	75052
Intel Identity Protection Technology version	1.00
Chassis type	Tower (4U)
Power supply	350 W
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 9144 m
Storage temperature (T-T)	-30 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
On-board graphics card model	Not available

Weight and Dimensions

Depth	475.2 mm
Width	175 mm
Height	368.2 mm
