HP ProLiant ML10 v2 User Manual

Component identification 7

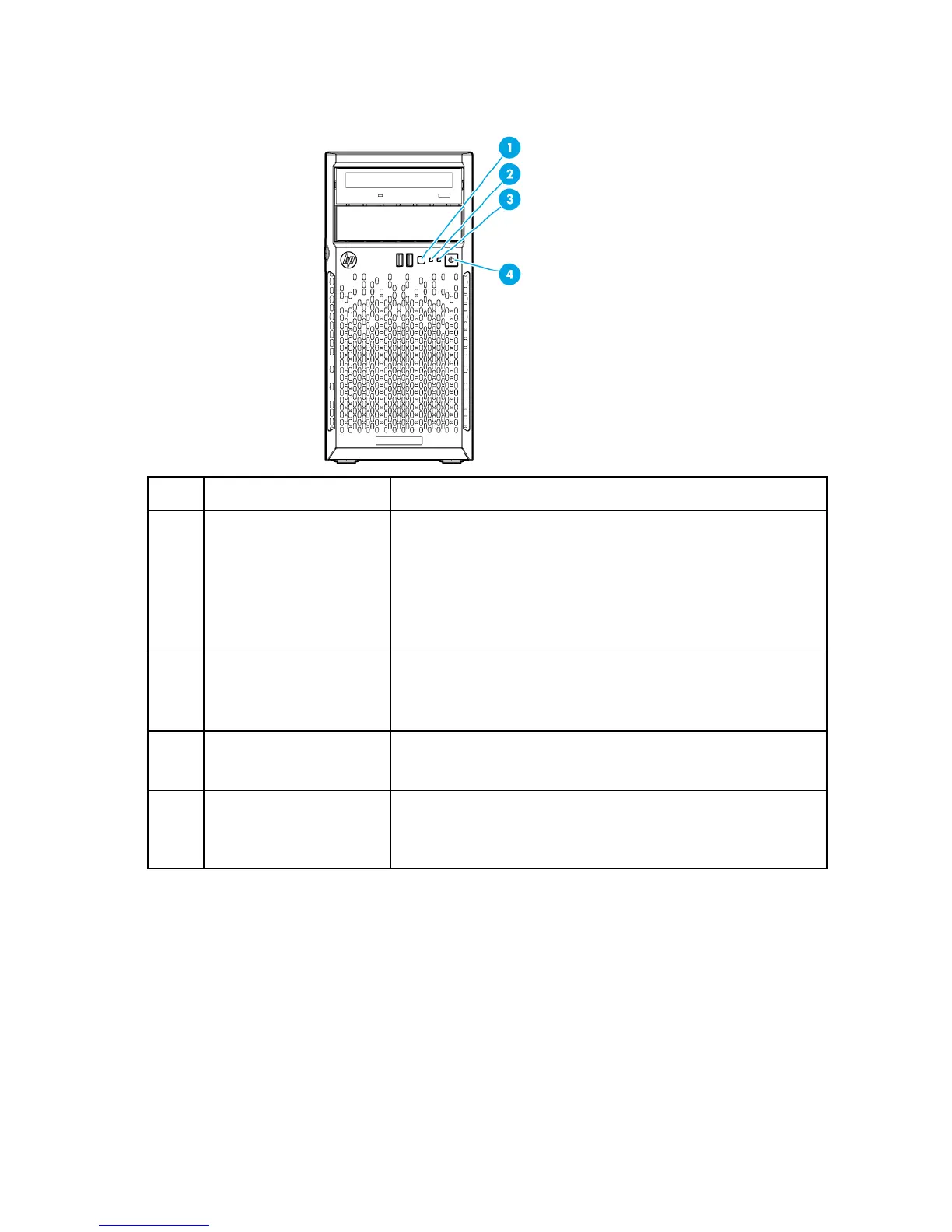

Front panel LEDs and buttons
Item Description Status
1
UID button/LED* Solid blue = Activated
Flashing blue:
•
1 Hz/cycle per sec = Remote management or firmware upgrade in
progress
•
4 Hz/cycle per sec = iLO manual reboot sequence initiated
•
8 Hz/cycle per sec = iLO manual reboot sequence in progress
Off = Deactivated
2
Health LED* Solid green = Normal
Flashing green (1 Hz/cycle per sec) = iLO is rebooting.
Flashing amber = System degraded**
Flashing red (1 Hz/cycle per sec) = System critical**
3
NIC status LED* Solid green = Link to network
Flashing green (1 Hz/cycle per sec) = Network active
Off = No network activity
4
Power On/Standby button
and system power LED*
Solid green = System on
Flashing green (1 Hz/cycle per sec) = Performing power on sequence
Solid amber = System in standby
Off = No power present†
* When all four LEDs described in this table flash simultaneously, a power fault has occurred. For more information, see
"Front panel LED power fault codes (on page 7)."
** If the health LED indicates a degraded or critical state, review the system IML or use iLO to review the system health
status.
† Facility power is not present, power cord is not attached, no power supplies are installed, power supply failure has
occurred, or the power button cable is disconnected.
Front panel LED power fault codes
The following table provides a list of power fault codes, and the subsystems that are affected. Not all power
faults are used by all servers.

HP ProLiant ML10 v2 Specifications

General

Bus type	DMI
Stepping	C0
FSB Parity	No
Scalability	1S
Processor cache	8 MB
Processor cores	4
Processor model	E3-1220V3
System bus rate	5 GT/s
Processor series	Intel Xeon E3-1200 v3
Processor socket	LGA 1150 (Socket H3)
Processor codename	Haswell
Motherboard chipset	Intel® C222
Processor frequency	3.1 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor front side bus	- MHz
Processor boost frequency	3.5 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
PCI Express configurations	1x8, 1x16, 2x4, 2x8
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Design Power (TDP)	80 W
Compatible processor series	Intel® Xeon®
Number of processors installed	1
Thermal solution specification	PCG 2013D
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
HDD size	3.5 \
HDD interface	-
SSD interface	Serial Attached SCSI (SAS)
Total storage capacity	1000 GB
Maximum storage capacity	24 TB
Memory slots	4x DIMM
Internal memory	8 GB
Memory clock speed	1600 MHz
Graphics card	G200
DVD interface type	SATA
Graphics card family	Matrox
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Serial ports quantity	0
USB 2.0 ports quantity	2
PCI Express slots version	3.0
Performance management	HP iLO
Compatible operating systems	Microsoft Windows Server\\r Canonical Ubuntu\\r Red Hat Enterprise Linux (RHEL)\\r SUSE Linux Enterprise Server (SLES)\\r VMware
Processor ARK ID	75052
Intel Identity Protection Technology version	1.00
Chassis type	Tower (4U)
Power supply	350 W
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 9144 m
Storage temperature (T-T)	-30 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
On-board graphics card model	Not available

Weight and Dimensions

Depth	475.2 mm
Width	175 mm
Height	368.2 mm
