HP ProLiant ML110 - G2 Server User Manual

Hardware options installation 31
• HP Smart Array E200 controller card

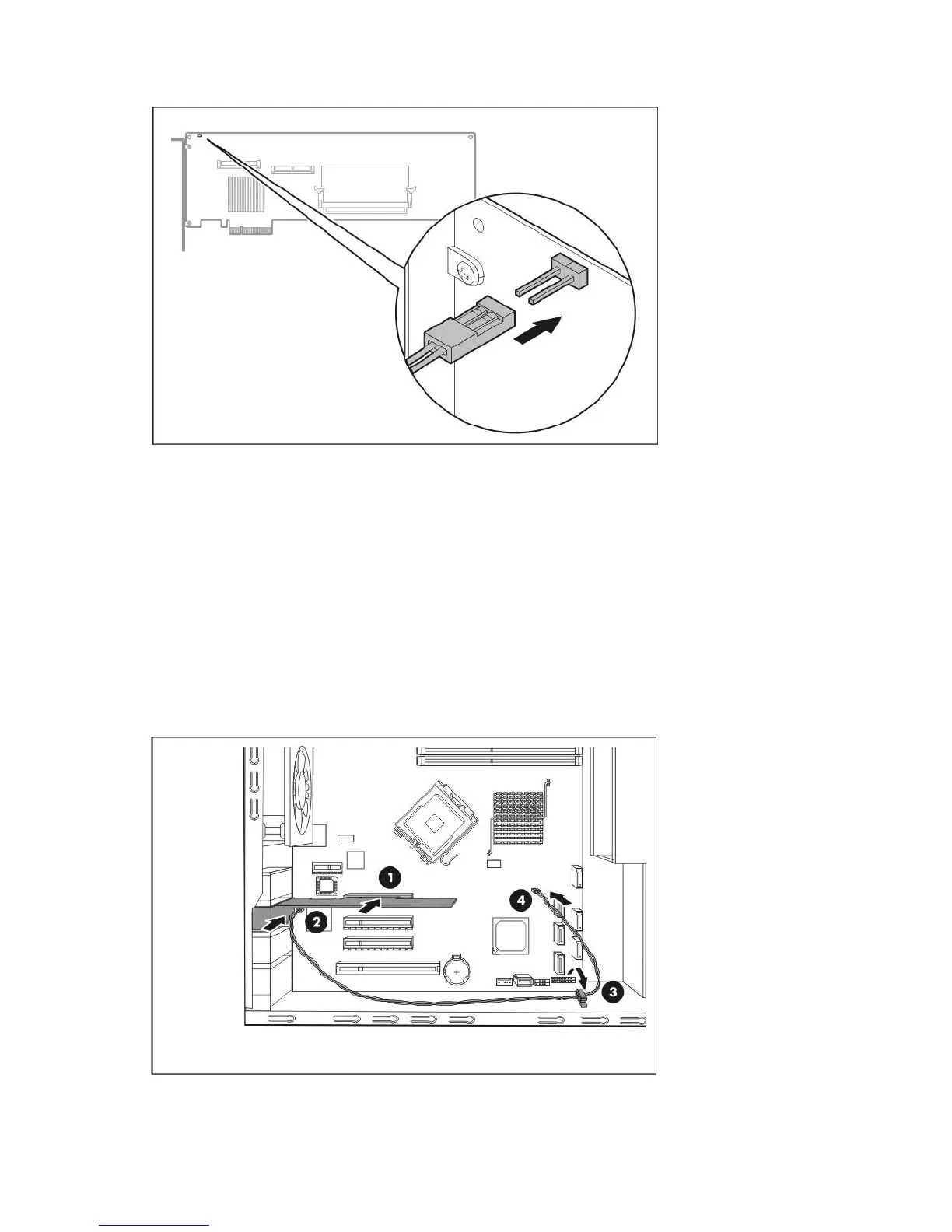

Cabling a controller card (ML110 G5, ML115, ML115 G5, and ML150 G5)
1. Power down the server (on page 6).
2. Remove the access panel ("Access panel" on page 6).
3. Install the storage controller card.
For more information, see the documentation that ships with the option and see "Expansion board
options (on page 41)."
4. Connect the LED cable to the storage controller card.
5. Secure the cable with the cable clamp.
6. Connect the LED cable to the system board.
o HP ProLiant ML110 Generation 5 Server

HP ProLiant ML110 - G2 Server Specifications

General

Server Type	Tower
Chipset	Intel E7210
Memory Type	DDR SDRAM
Maximum Memory	4 GB
Optical Drive	Optional
Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Pentium 4
Storage Controller	Integrated SATA
Drive Bays	2 x 3.5" internal
Network Controller	Integrated Broadcom Gigabit Ethernet
Power Supply	300W
Operating System Support	Microsoft Windows Server 2003, Red Hat Linux
