Hardware options installation 37
6.

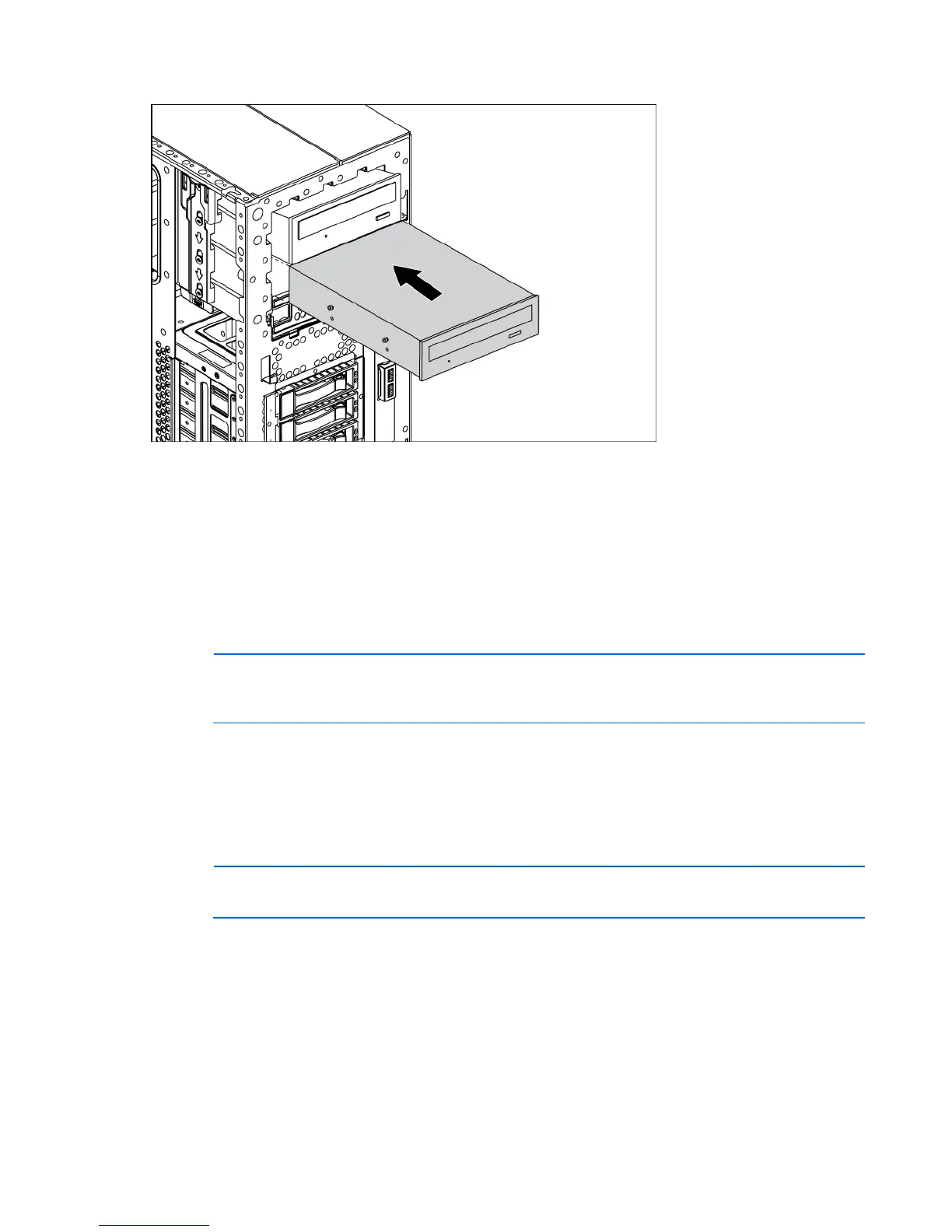

Slide the media device into the bay until it clicks.
7. Connect the four-pin power cable to the media drive.
8. Connect the device cable to the device and the system board or to an expansion board, as directed
by the option documentation.
9. Slide the media drive fully into the bay until it is seated securely.
Installing media devices with wire retainers
Installing a half-height media device
NOTE: This process only represents one installation method. For specific instructions for
installing the media device into the server, refer to the installation sheet for your specific
server.
1. Power down the server (on page 6).
2. Extend the server from the rack, if applicable.
3. Remove the access panel ("Access panel" on page 6).
4. Access the removable media cage.
5. Remove the bezel blank.
NOTE: HP recommends that you remove all bezel blanks to facilitate drive installation.
