Hardware options installation 41
5.

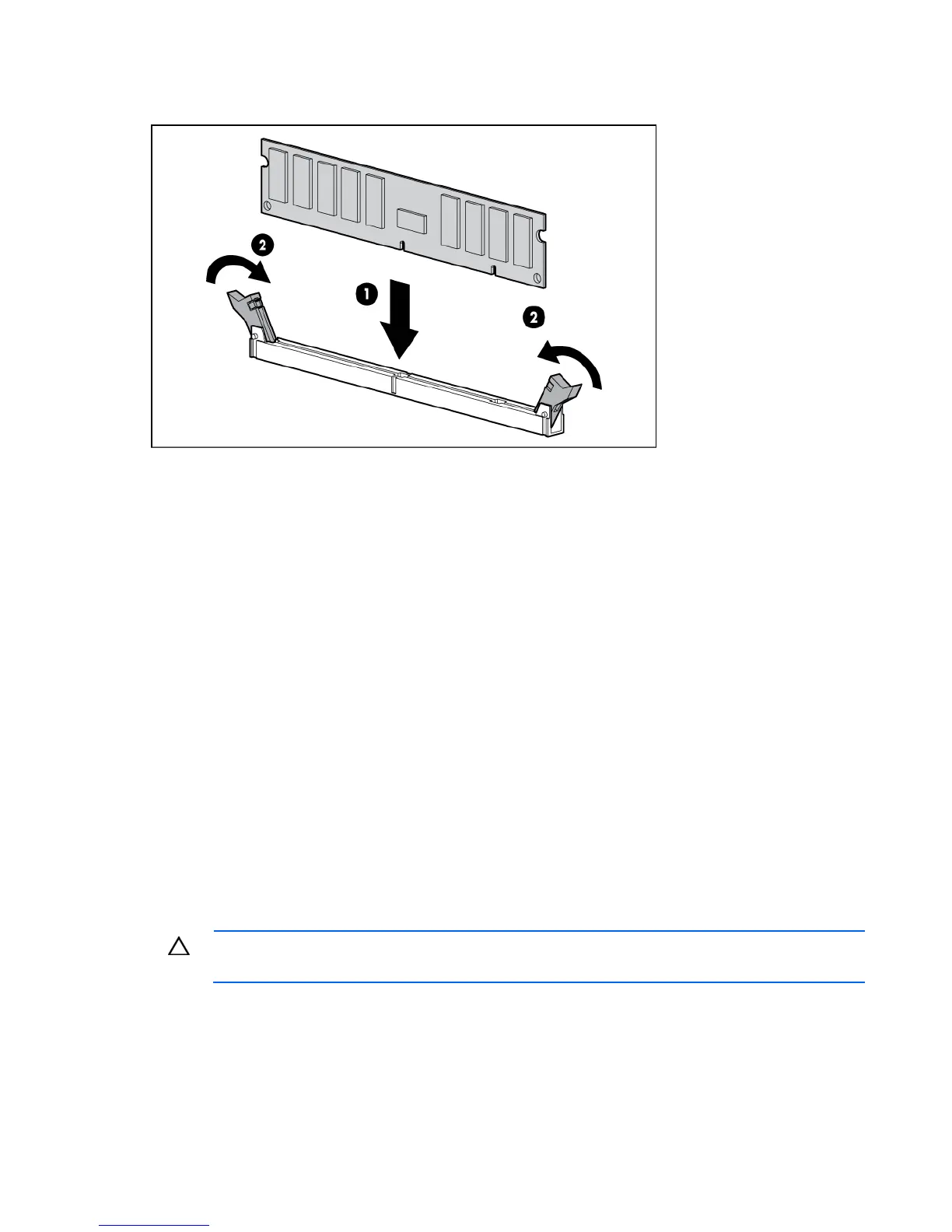

Install the DIMM. Refer to the installation sheet for server-specific configuration and population
guidelines.
6. Replace the access panel ("Access panel" on page 6).
Expansion board options
Depending on the model, HP ProLiant 100 Series servers use one of the following methods to retain
expansion boards within the server:
• A single expansion board retainer for all expansion boards (internal)
• Individual retainers for each expansion board
• A single expansion board retainer for all expansion boards (external)
This document provides the following procedures for installing expansion boards into HP ProLiant 100
Series servers:
• Installing an expansion board with a single retainer (on page 41)
• Installing an expansion board with individual retainers (on page 43)
• Installing an expansion board with an external retainer
For server-specific expansion board installation instructions, refer to the installation sheet that ships with
the server.
Installing an expansion board with a single retainer
CAUTION: To prevent damage to the server or expansion boards, power down the server
and remove all AC power cords before removing or installing the expansion boards.
To install an expansion board:
1. Power down the server (on page 6).
2. Extend the server from the rack, if applicable.
3. Remove the access panel ("Access panel" on page 6).
