HP ProLiant ML110 - G2 Server User Manual

Hardware options installation 16
Installing a processor in HP ProLiant ML110 Generation 5
Servers
The server uses an embedded PPM as a DC-to-DC converter to provide the proper power to the processor.
To install the component:
1. Power down the server (on page 6).
2. Extend the server from the rack.
3. Remove the access panel ("Access panel" on page 6).

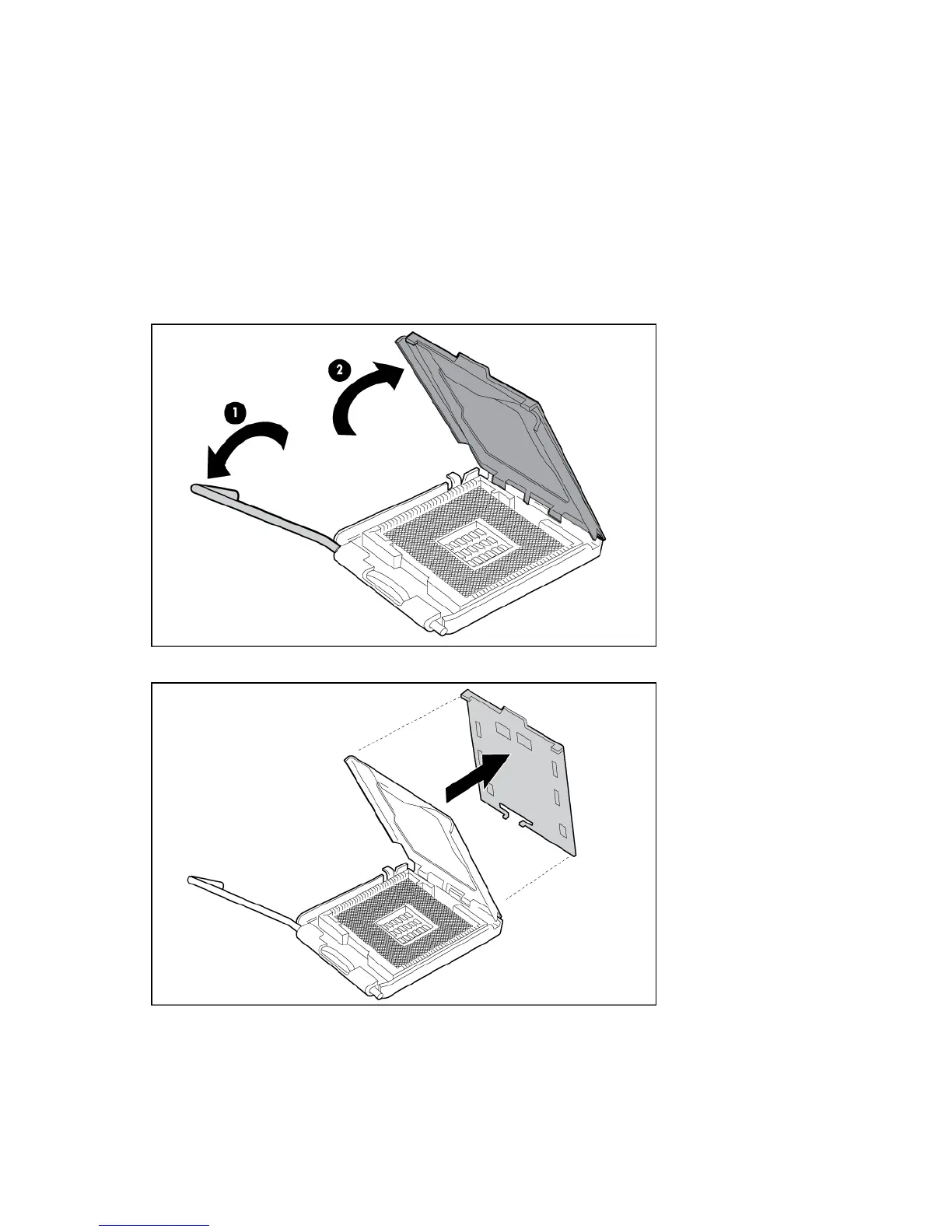

4. Open the processor retaining latch and the processor socket retaining bracket.
5. Remove the processor socket protective cover.

HP ProLiant ML110 - G2 Server Specifications

General

Server Type	Tower
Chipset	Intel E7210
Memory Type	DDR SDRAM
Maximum Memory	4 GB
Optical Drive	Optional
Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Pentium 4
Storage Controller	Integrated SATA
Drive Bays	2 x 3.5" internal
Network Controller	Integrated Broadcom Gigabit Ethernet
Power Supply	300W
Operating System Support	Microsoft Windows Server 2003, Red Hat Linux
