HP ProLiant DL140 Server Setup and Installation Guide 14
3. Insert an expansion board into the expansion slot by aligning the expansion board with the
board guide and slide the expansion board into the slot until the board seats firmly (1).
4. Tighten the slot cover screw (2).

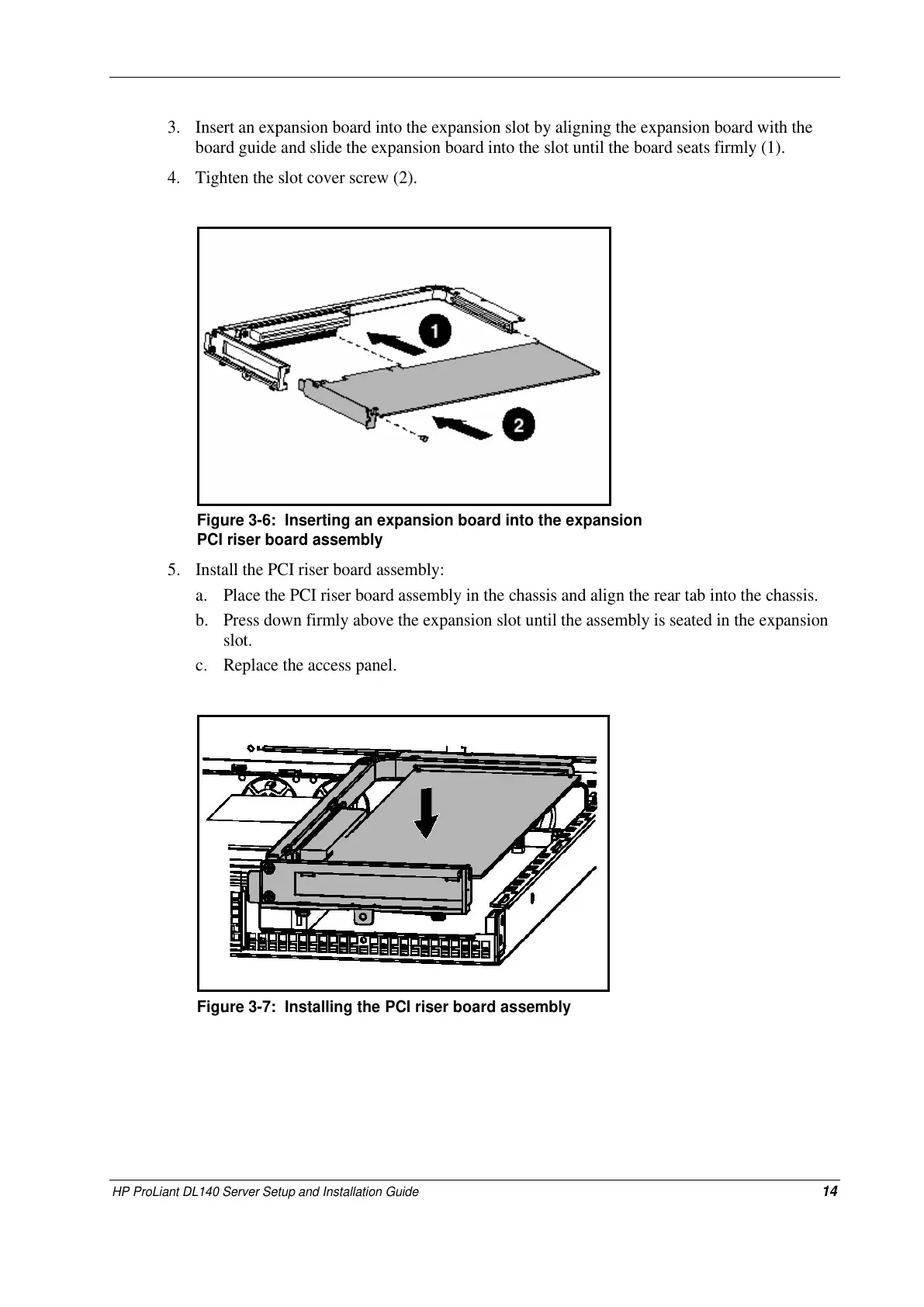

Figure 3-6: Inserting an expansion board into the expansion
PCI riser board assembly
5. Install the PCI riser board assembly:
a. Place the PCI riser board assembly in the chassis and align the rear tab into the chassis.
b. Press down firmly above the expansion slot until the assembly is seated in the expansion
slot.
c. Replace the access panel.
Figure 3-7: Installing the PCI riser board assembly
