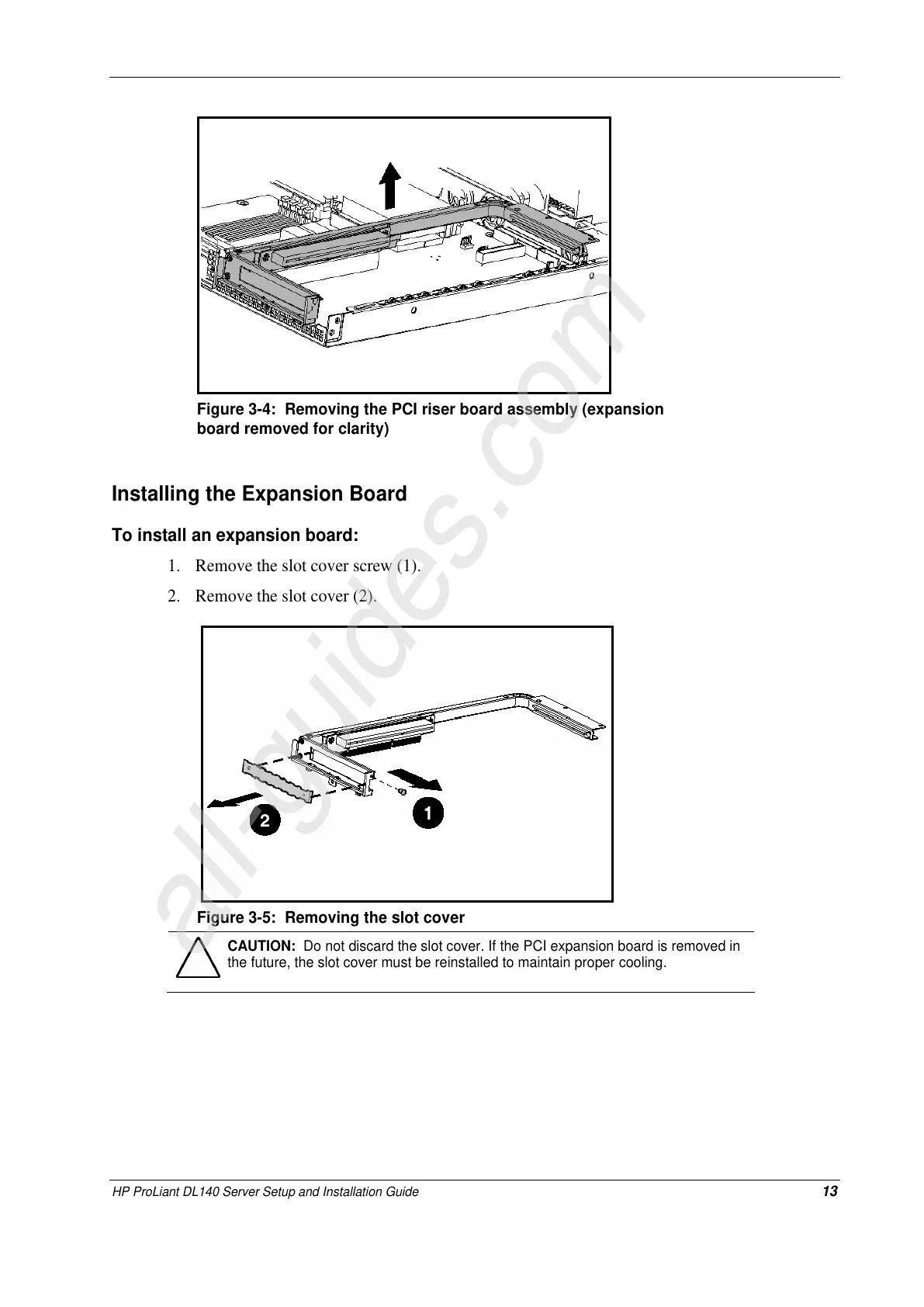

Figure 3-4: Removing the PCI riser board assembly (expansion
board removed for clarity)
Installing the Expansion Board
To install an expansion board:
1. Remove the slot cover screw (1).
2. Remove the slot cover (2).
Figure 3-5: Removing the slot cover
CAUTION: Do not discard the slot cover. If the PCI expansion board is removed in
the future, the slot cover must be reinstalled to maintain proper cooling.
