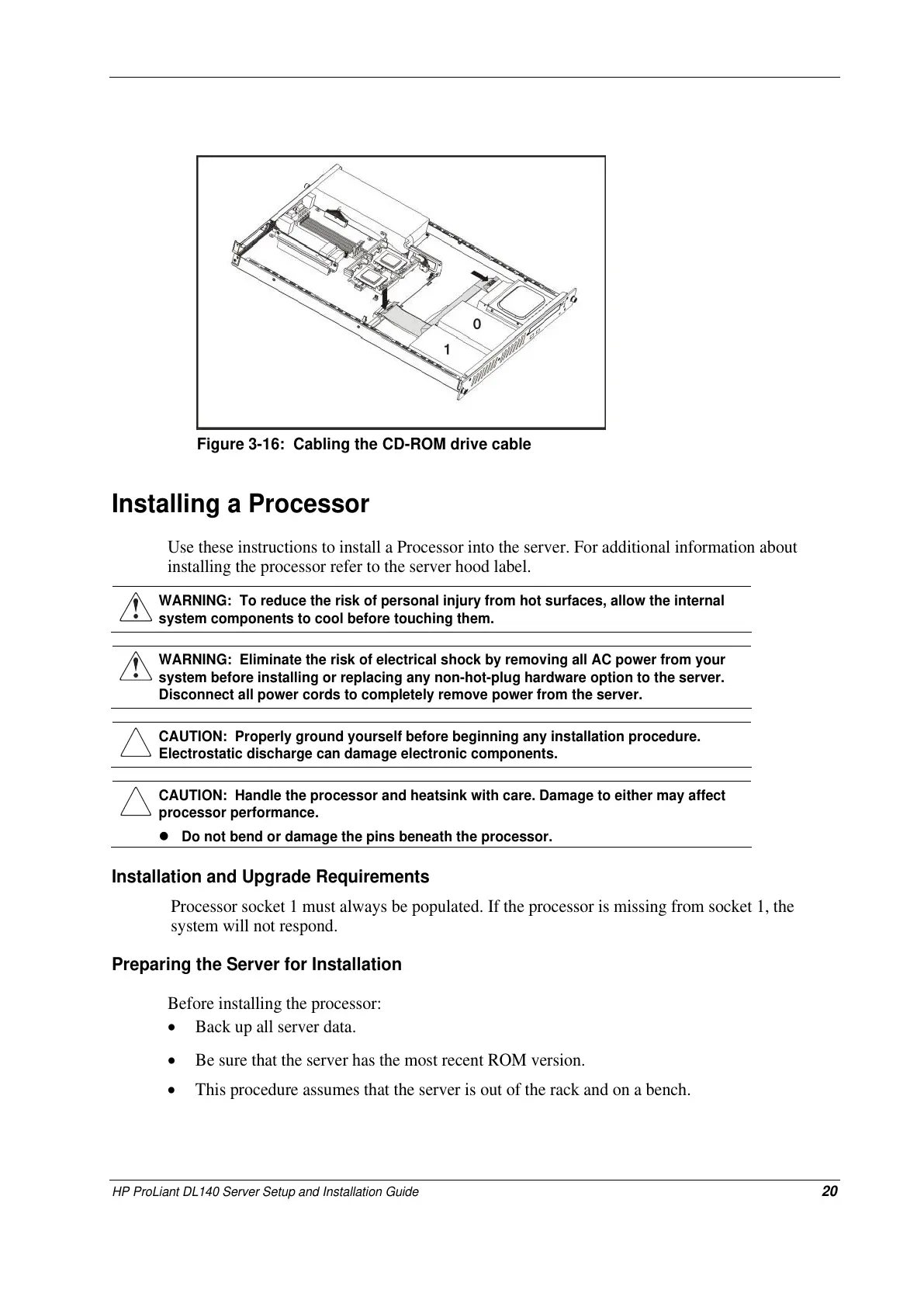

HP ProLiant DL140 Server Setup and Installation Guide 20
Figure 3-16: Cabling the CD-ROM drive cable
Installing a Processor
Use these instructions to install a Processor into the server. For additional information about
installing the processor refer to the server hood label.
WARNING: To reduce the risk of personal injury from hot surfaces, allow the internal
system components to cool before touching them.
WARNING: Eliminate the risk of electrical shock by removing all AC power from your
system before installing or replacing any non-hot-plug hardware option to the server.
Disconnect all power cords to completely remove power from the server.
CAUTION: Properly ground yourself before beginning any installation procedure.
Electrostatic discharge can damage electronic components.
CAUTION: Handle the processor and heatsink with care. Damage to either may affect
processor performance.
z Do not bend or damage the pins beneath the processor.
Installation and Upgrade Requirements
Processor socket 1 must always be populated. If the processor is missing from socket 1, the
system will not respond.
Preparing the Server for Installation
Before installing the processor:
• Back up all server data.
• Be sure that the server has the most recent ROM version.
• This procedure assumes that the server is out of the rack and on a bench.
