HP ProLiant DL140 Server Setup and Installation Guide 16
To install an ATA hard drive:
1. Align the ATA hard drive on the hard drive tray (1) and secure it with the four hard drive
mounting screws (2).
NOTE: Arrows on the hard drive tray indicate which holes to install the hard drive tray onto
the drive.

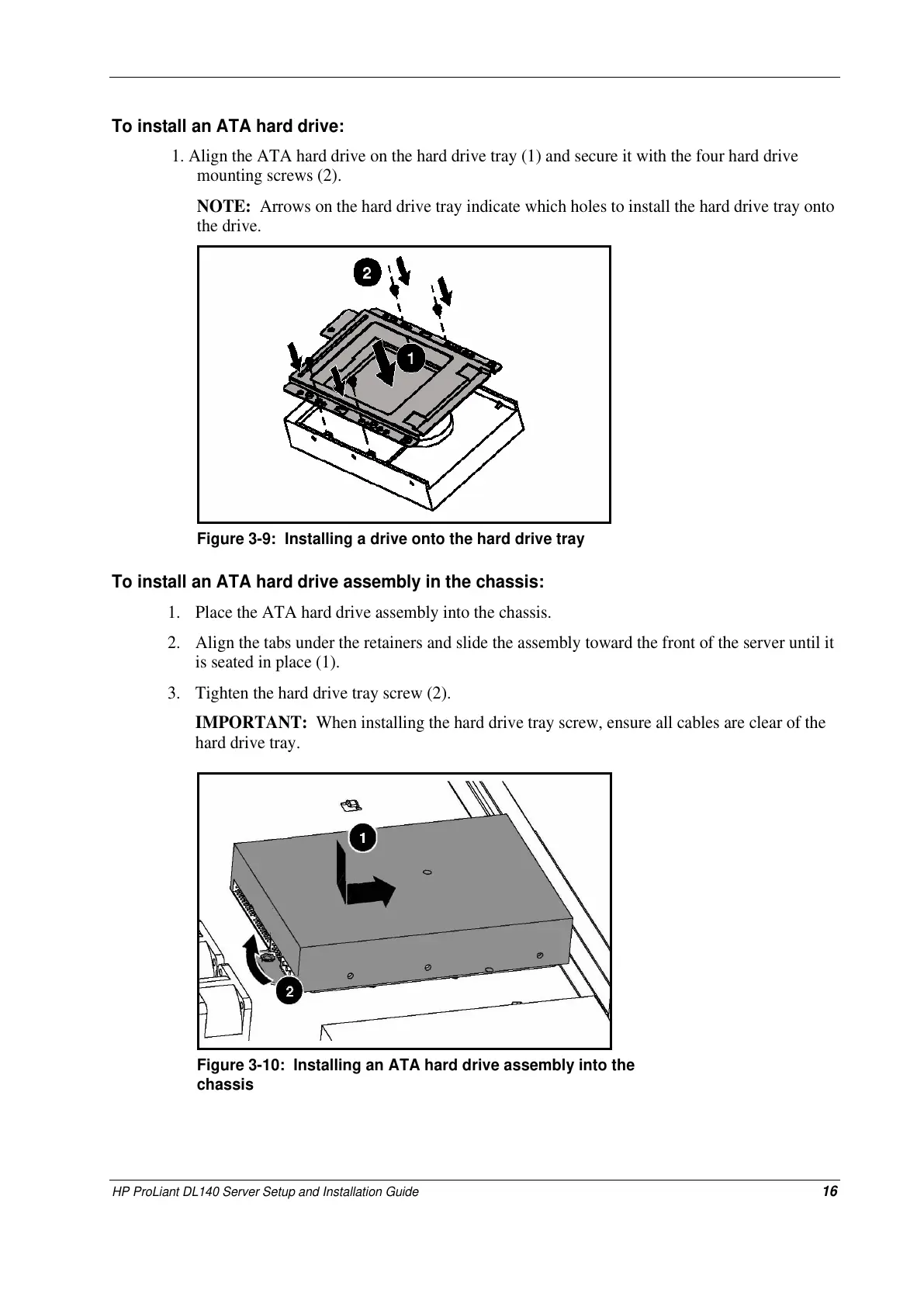

Figure 3-9: Installing a drive onto the hard drive tray
To install an ATA hard drive assembly in the chassis:
1. Place the ATA hard drive assembly into the chassis.
2. Align the tabs under the retainers and slide the assembly toward the front of the server until it
is seated in place (1).
3. Tighten the hard drive tray screw (2).
IMPORTANT: When installing the hard drive tray screw, ensure all cables are clear of the
hard drive tray.
Figure 3-10: Installing an ATA hard drive assembly into the
chassis
