WARNING: Observe the processor and socket key markings (4) to assure the processor
is installed in the correct orientation.

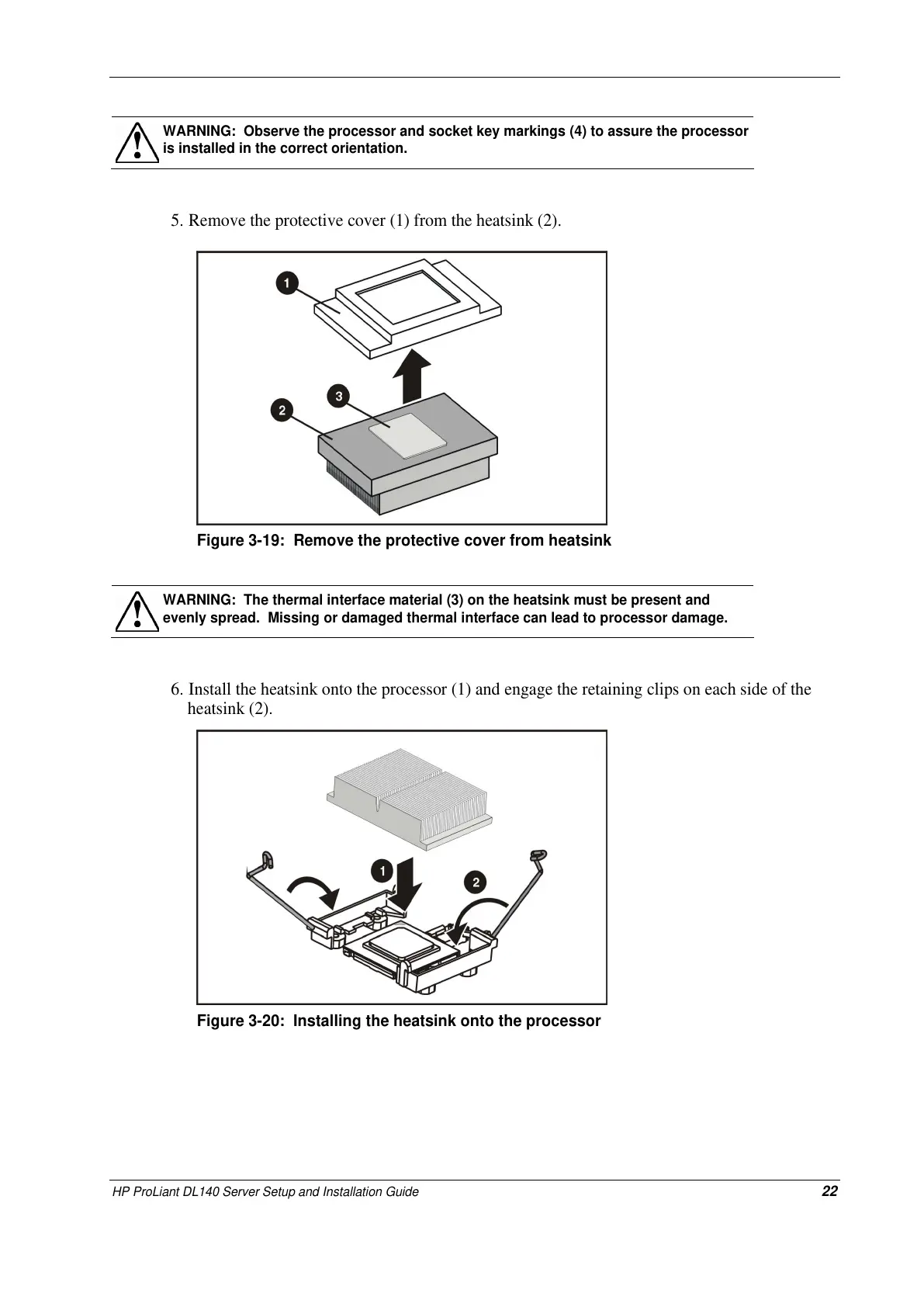

5. Remove the protective cover (1) from the heatsink (2).
Figure 3-19: Remove the protective cover from heatsink
WARNING: The thermal interface material (3) on the heatsink must be present and
evenly spread. Missing or damaged thermal interface can lead to processor damage.
6. Install the heatsink onto the processor (1) and engage the retaining clips on each side of the
heatsink (2).
Figure 3-20: Installing the heatsink onto the processor
