Component identification 8
Item LED description
1 Load Segment 2
2 Load Segment 1
3 General Alarm
4 On Battery
5 Overload
6 Power On
For more information, see "LED and audible alarm troubleshooting (on page 29)."

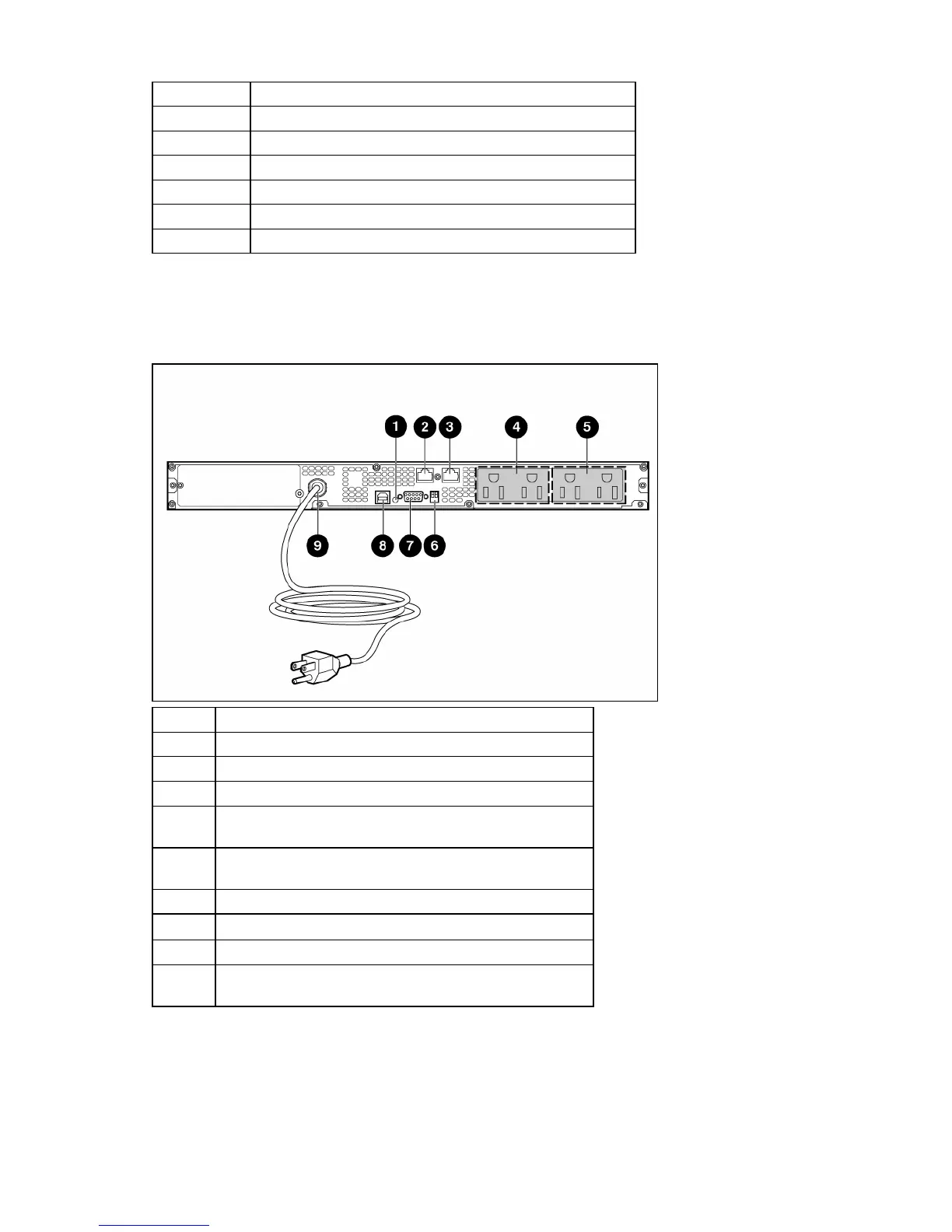

UPS R1500 G2 NA/JPN/TWN rear panel
Item Description
1 Site Wiring Fault LED
2 Network Transient Protector IN jack
3 Network Transient Protector OUT jack
4
Load segment 1 (two NEMA 5-15 output receptacles for
surge and battery backup protection)
5
Load segment 2 (two NEMA 5-15 output receptacles for
surge and battery backup protection)
6 Voltage configuration DIP switches
7 Serial communications port
8 USB communications port
9
Input power cord with NEMA 5-15 plug (BSMI approved for
TWN)
