Component identification 9

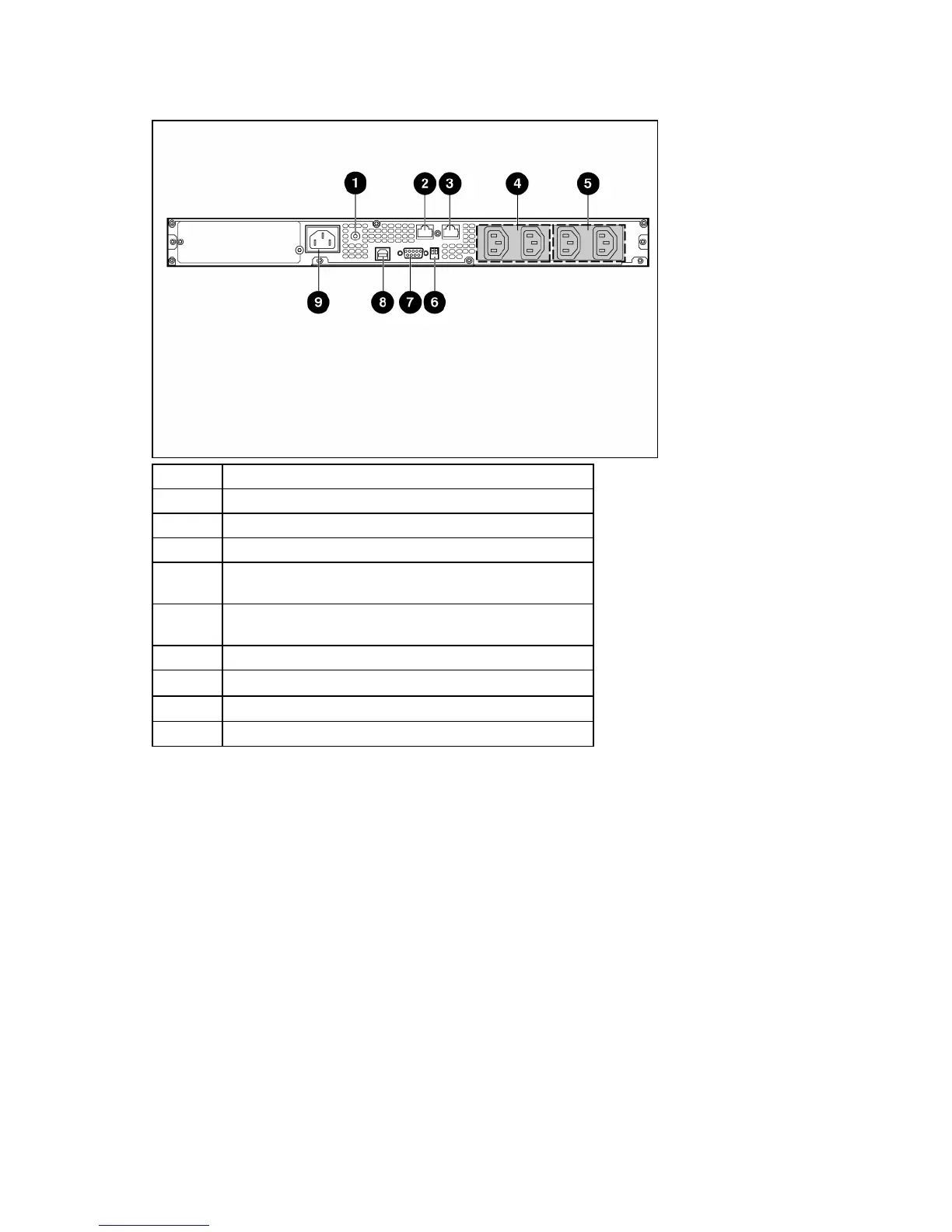

UPS R1500 G2 INTL rear panel
Item Description
1 Input circuit breaker
2 Network Transient Protector IN jack
3 Network Transient Protector OUT jack
4
Load segment 1 (two IEC-320-C13 output receptacles for
surge and battery backup protection)
5
Load segment 2 (two IEC-320-C13 output receptacles for
surge and battery backup protection)
6 Voltage configuration DIP switches
7 Serial communications port
8 USB communications port
9 Input power connector (IEC-320-C14 power inlet)
