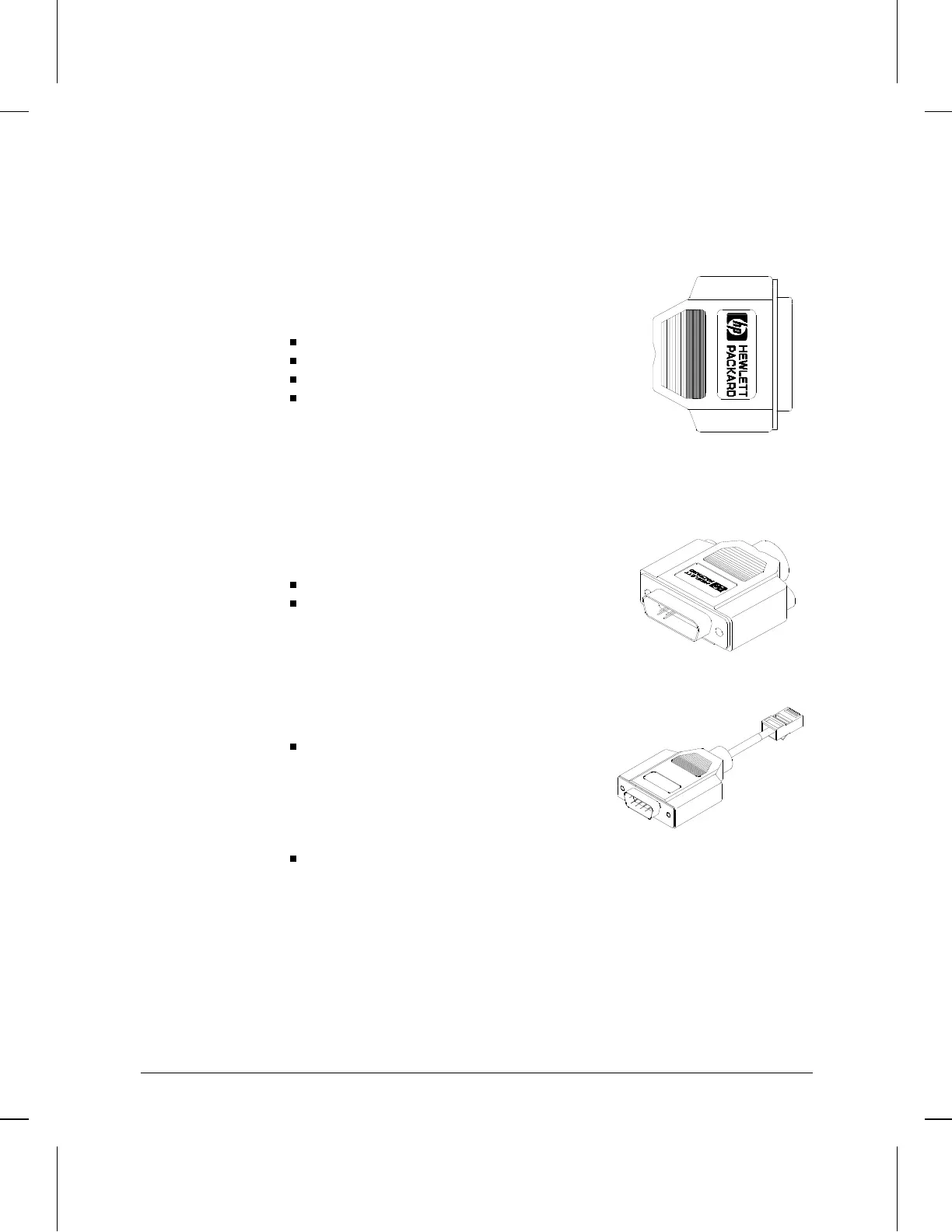

Loopback Connectors
For the Console Port
HP part number 5062-3355; pin connections:
pin 2 to pin 3
pin 4 to pin 5 to pin 8
pin 6 to pin 20 to pin 22
pin 7 to pin 23
For an AUI LAN Port
HP part number 28663-63001; pin connections:
pin 3 to pin 5
pin 10 to pin 12
For a Token Ring/802.5 Port
HP part number 5061-2550; pin connections:
Modular (RJ-45) to subminiature D-
connector:
• pin 3 to pin1
• pin 4 to pin 6
• pin 5 to pin 9
• pin 6 to pin 5
Subminiature D-Connector
• pin 1 to pin 9
• pin 5 to pin 6
