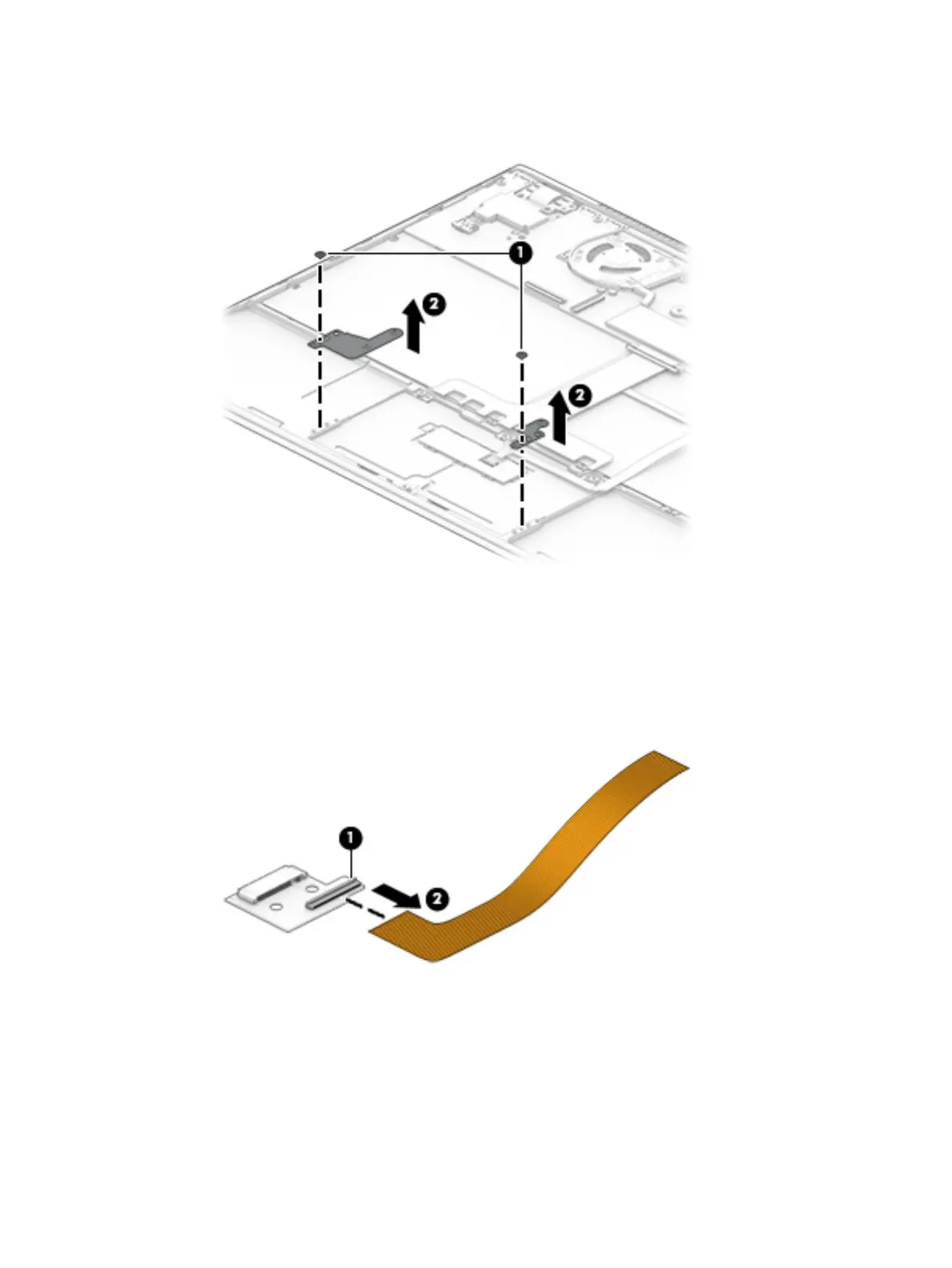

b. Remove the solid-state drive brackets (2).
The solid-state drive brackets are available using spare part number 941841-001.
6. If it is necessary to remove the solid-state drive connector board cable:
a. Turn the solid-state drive connector board upside down.
b. Release the ZIF connector (1) to which the solid-state drive connector board cable is connected, and
then disconnect the solid-state drive connector board cable (2) from the solid-state drive connector
board.
The solid-state drive connector board cable is available using spare part number 941842-001.
Reverse this procedure to install the solid-state drive connector board.
36 Chapter 5 Removal and replacement procedures
