Audio jack board
NOTE: The audio jack board spare part kit does not include the audio jack board cable. The audio jack board
cable is available using spare part number 941844-001.
Description Spare part number
Audio jack board 941843-001
Before removing the audio jack board, follow these steps:
1. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
2. Disconnect all external devices from the computer.
3. Remove the bottom cover (see Bottom cover on page 30), and then remove the following components:
a. Battery (see Battery on page 32)
b. Fans (see Fans on page 39)
c. System board (see System board on page 41)
d. Left speaker (see Speakers on page 49)

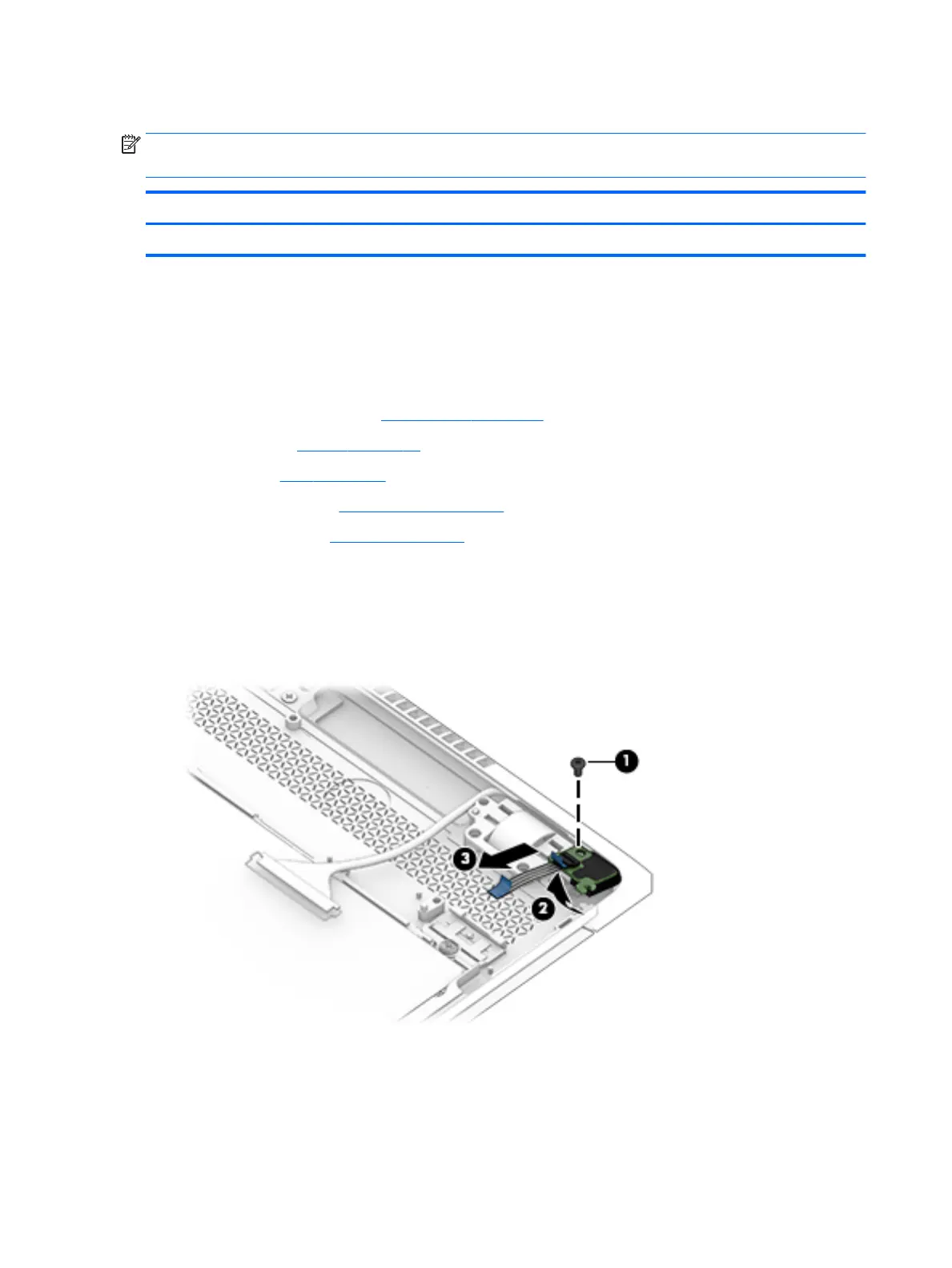

Remove the audio jack board:
1. Remove the Phillips M2.0×3.2 screw (1) that secures the audio jack board to the keyboard/top cover.
2. Lift the front edge of the audio jack board (2) until it rests at an angle.
3. Remove the audio jack board (3) by sliding it up and forward at an angle.
Reverse this procedure to install the audio jack board.
52 Chapter 5 Removal and replacement procedures
