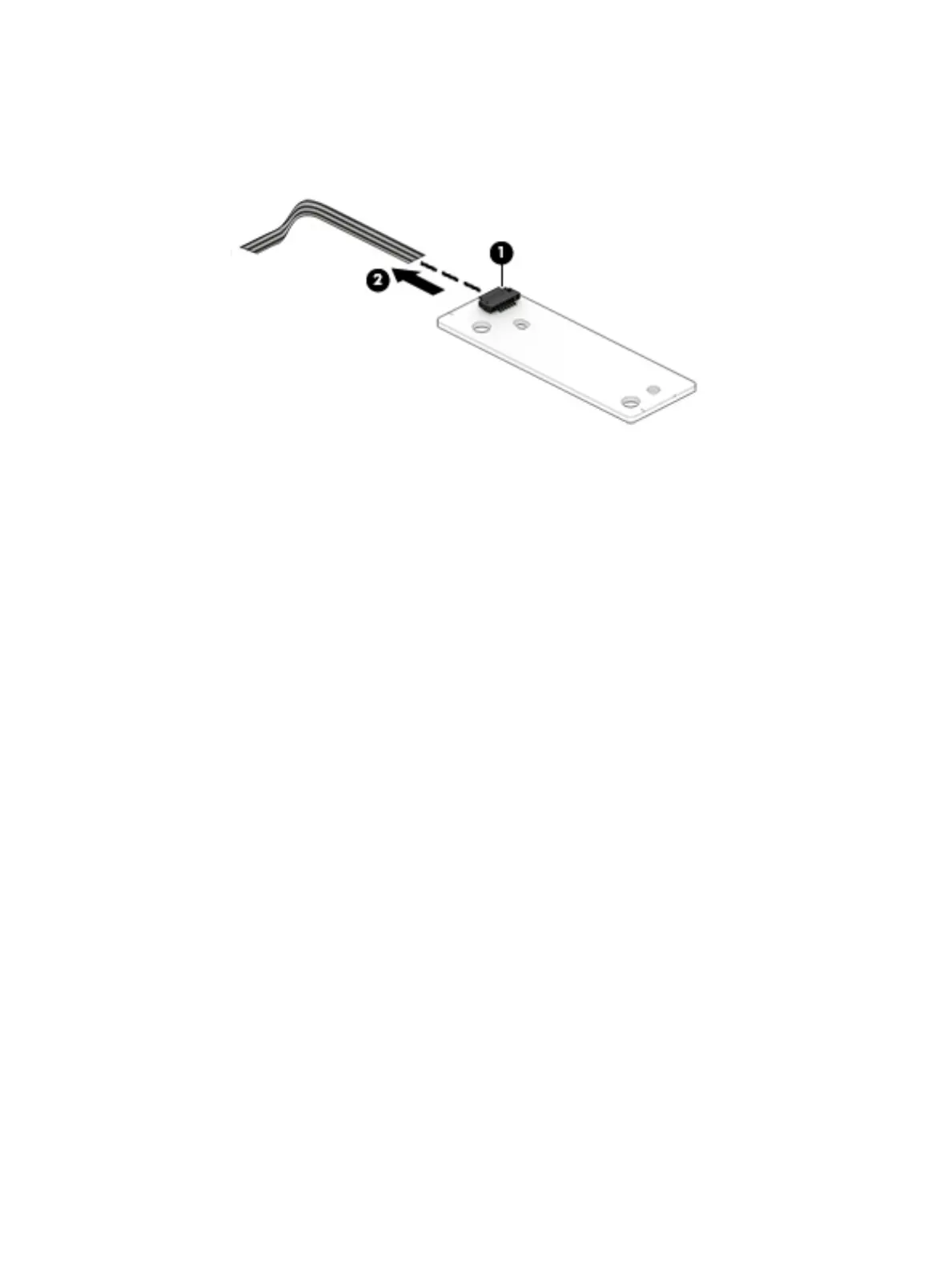

b. Release the ZIF connector (1) to which the thermal sensor board cable is connected, and then
disconnect the thermal sensor board cable (2) from the thermal sensor board.
The thermal sensor board cable is available using spare part number 941846-001.
Reverse this procedure to install the thermal sensor board.
Component replacement procedures 51
