3. Remove the right fan (3).

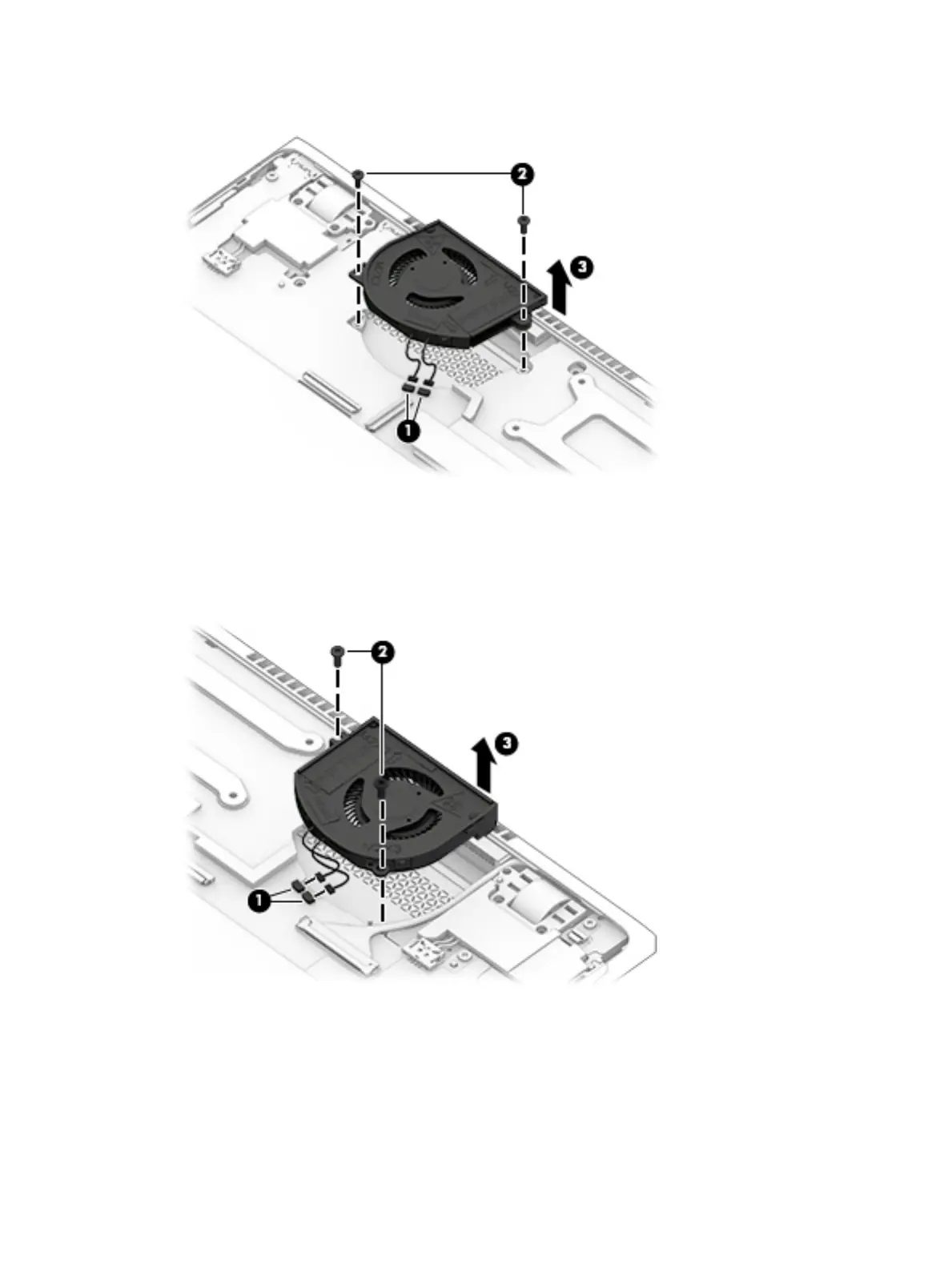

Remove the left fan:
1. Disconnect the left fan cables (1) from the connectors on the system board.
2. Remove the two Phillips M2.0×3.2 screws (2) that secure the left fan to the keyboard/top cover.
3. Remove the left fan (3).
Reverse this procedure to reassemble and install the fans.
40 Chapter 5 Removal and replacement procedures
