Item Component Description
NOTE: When a device is connected to the jack, the
computer speakers are disabled.
NOTE: Be sure that the device cable has a 4-conductor
connector that supports both audio-out (headphone) and
audio-in (microphone).
(3) Power connector Connects an AC adapter.
(4) Alignment post connectors (2) Align and attach the tablet to the keyboard base.
(5) Docking port/power connector Connects the tablet to the keyboard base and connects an AC
adapter.
(6) SIM slot (select models only) Supports a wireless subscriber identity module (SIM).
(7) Micro SD Card Reader Supports micro SD cards.
(8) Volume button Controls speaker volume on the tablet.
●
To increase speaker volume, press the + edge of
the button.
●
To decrease speaker volume, press the – edge of
the button.

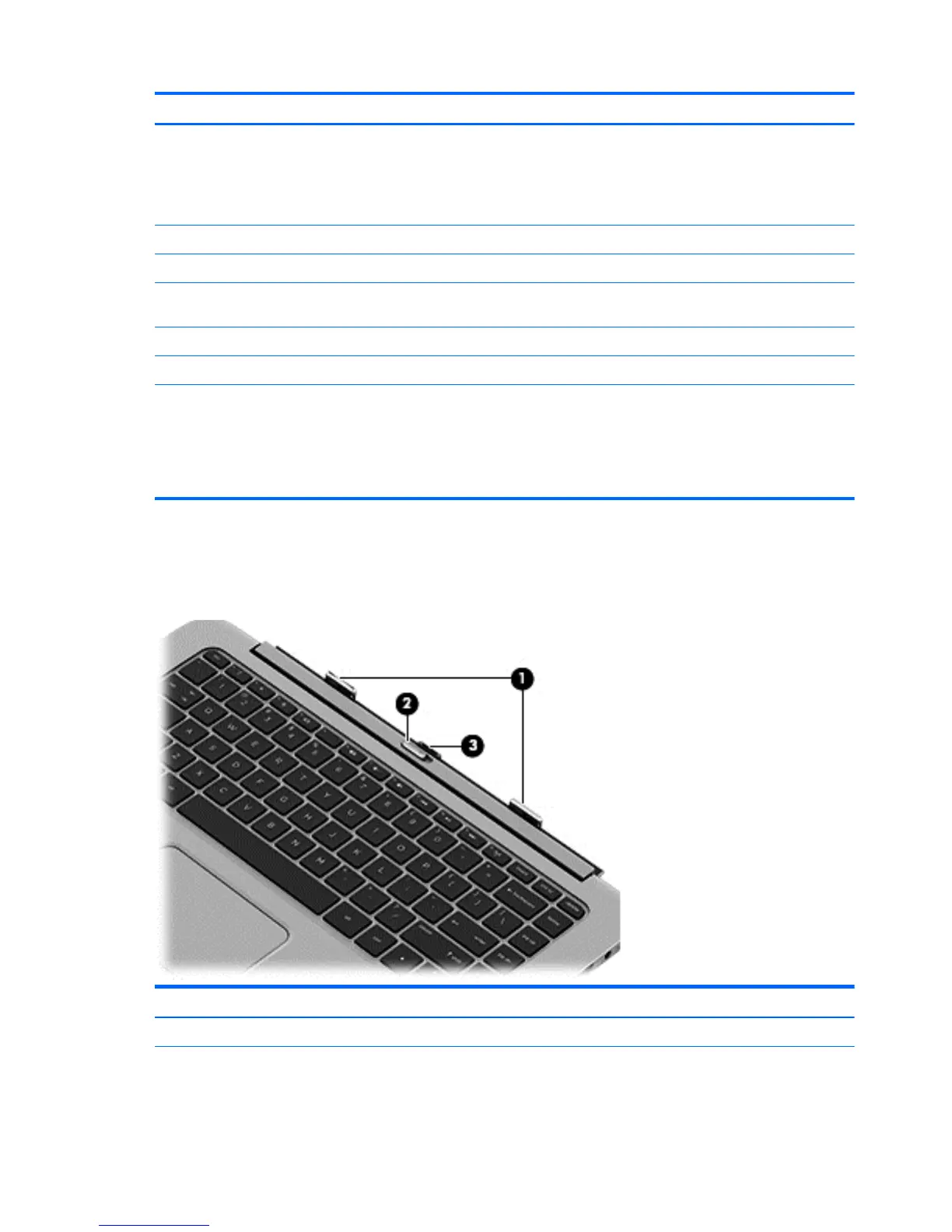

Keyboard base
Top
Item Component Description
(1) Alignment posts Align and attach the tablet to the keyboard base.
8 Chapter 2 External component identification
