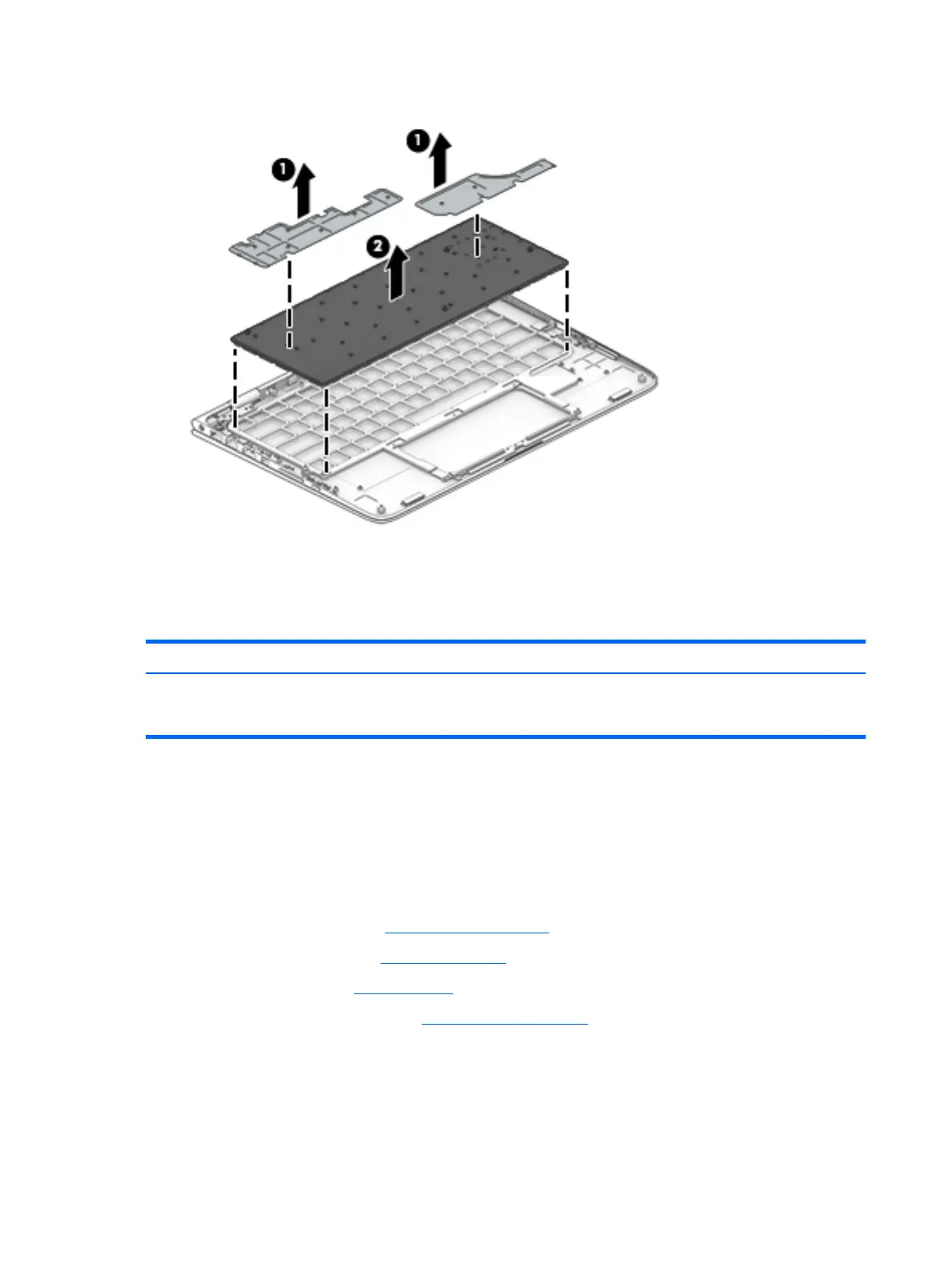

3. Remove the keyboard (2).
Reverse this procedure to install the keyboard.
Display assembly
Description Spare part number
Display assembly (13.3-in, QHD, OLED, BrightView (2560×1440), UWVA, 2.55-mm in ash silver nish,
ultra wide aspect ratio, TouchScreen (includes display panel cable, microphones, hinges, webcam,
and wireless antenna cables and transceivers)
848809-001
Before removing the display assembly, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation,
turn the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 19), and then remove the following components:
a. Remove the battery (see Battery on page 21).
b. Remove the fan (see Fan on page 25).
c. Remove the system board (see System board on page 30).
Remove the display assembly:
1. Open the computer to the interactive position, as shown in the following illustrations.
2. Release the WLAN antenna cables from the retention post (1) built into the top cover.
36 Chapter 5 Removal and replacement procedures
