HP StorageWorks P2000 - G3 MSA Array Systems User Manual

HP StorageWorks P2000 G3 MSA System FC User Guide 17
2Components

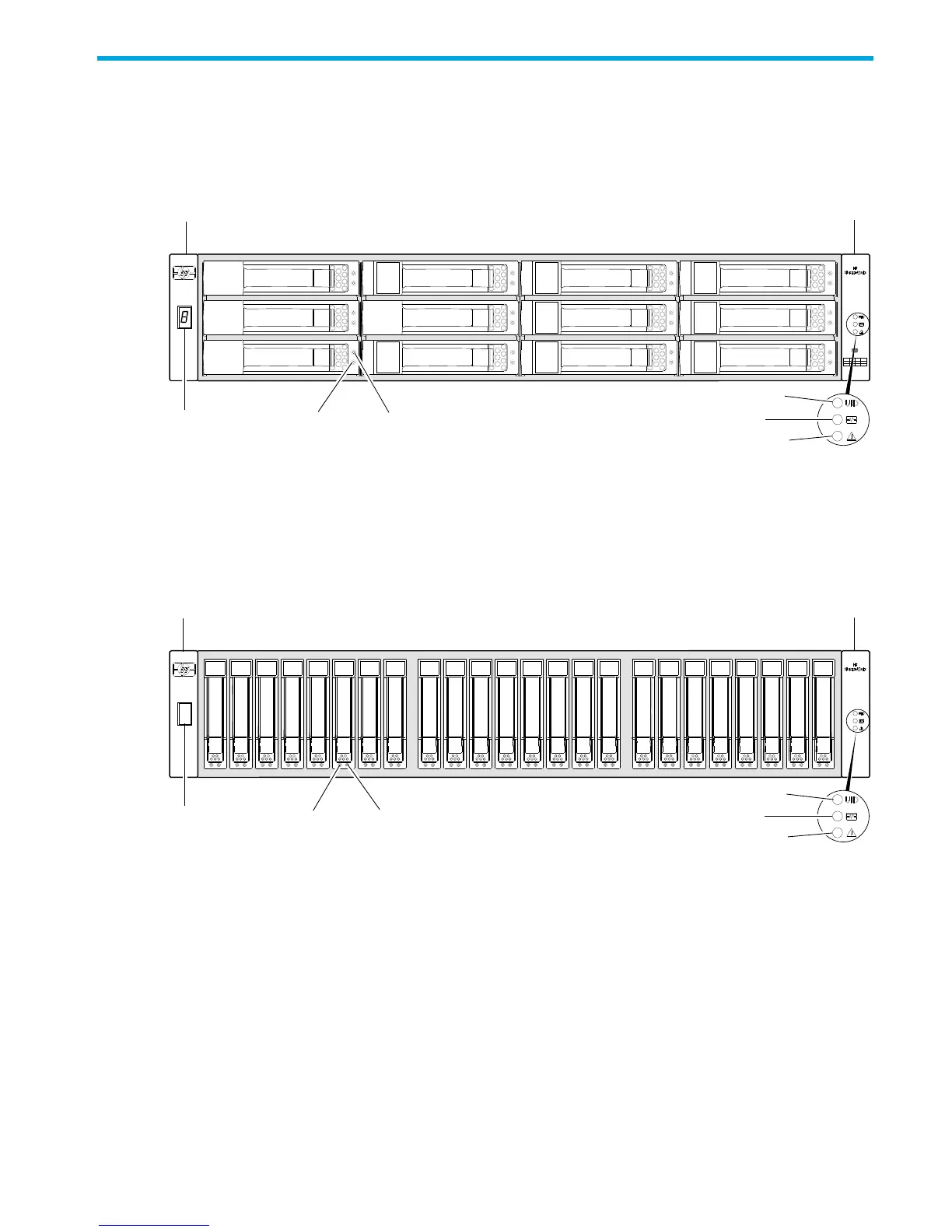

Front panel components
P2000 G3 MSA System FC LFF
P2000 G3 MSA System FC SFF
1 Enclosure ID LED
2 Disk drive Online/Activity LED
3 Disk drive Fault/UID LED
4 Unit Identification (UID) LED
5 Heartbeat LED
6 Fault ID LED
P2000
1
4
7
10
3
6
9
12
132
4
5
6
1 Enclosure ID LED
2 Disk drive Online/Activity LED
3 Disk drive Fault/UID LED
4 Unit Identification (UID) LED
5 Heartbeat LED
6 Fault ID LED
P2000
1
3
2
4
5
6
Left ear
Right ear
Left ear
Right ear

HP StorageWorks P2000 - G3 MSA Array Systems Specifications

General

Drive Types Supported	SAS, SATA
RAID Levels	RAID 0, 1, 3, 5, 6, 10, 50
Operating Temperature	10°C to 35°C (50°F to 95°F)
Model	HP StorageWorks P2000 G3 MSA
Controller Types	Dual Controller
Host Interface	iSCSI, SAS, Fibre Channel
Form Factor	2U
Number of Drive Bays	24
Power Supply	Dual, hot-plug, redundant power supplies
Cache Memory	2 GB per controller
