HP StorageWorks P2000 - G3 MSA Array Systems User Manual

18 Components

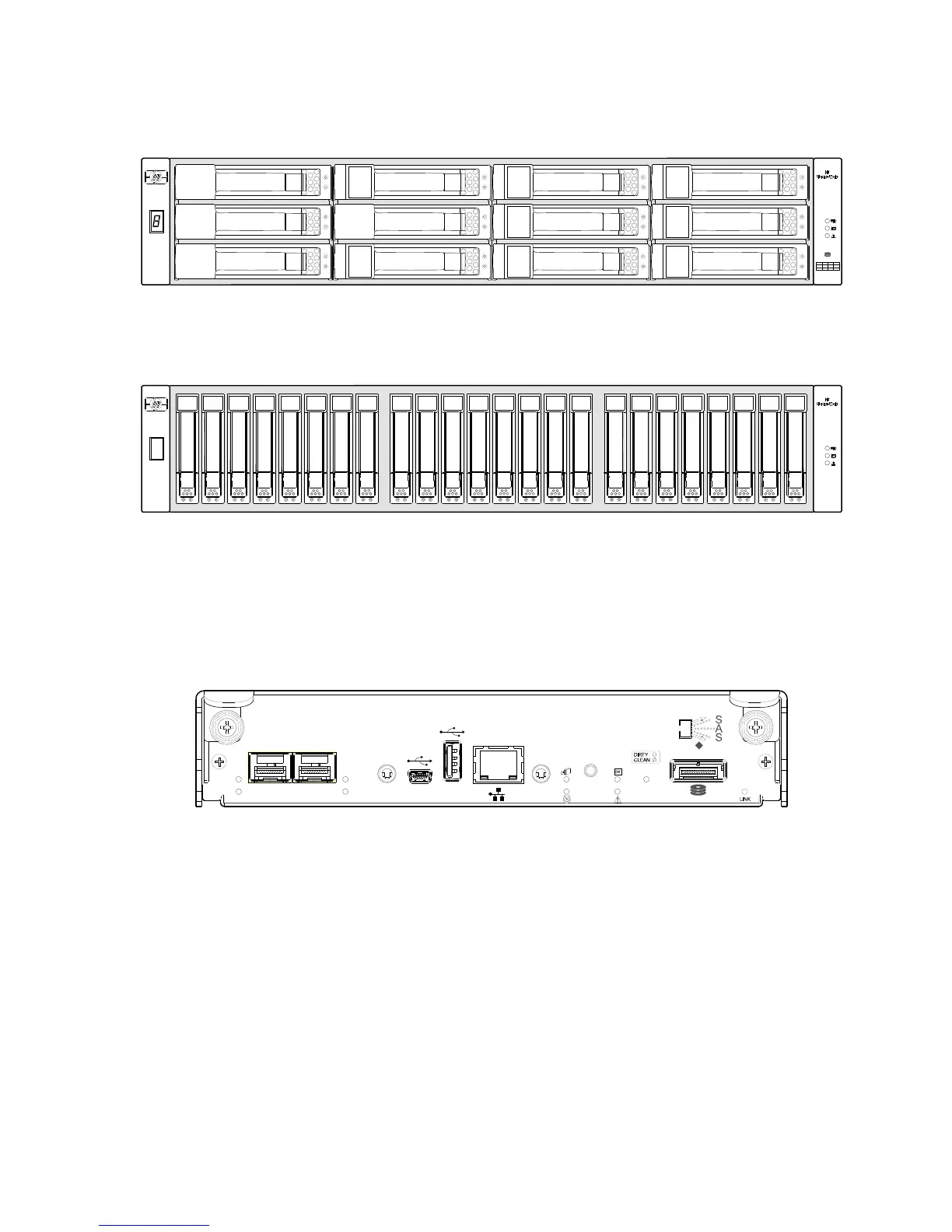

Disk drive bay numbers
P2000G3MSA System FC LFF
P2000G3MSA System FC SFF
Rear panel views — controller modules
The P2000G3MSA System controller module(s) shown below are not proportionately sized relative to
preceding controller enclosure views. Controller module face plates are enlarged to show relevant detail.
P2000 G3 MSA System FC controller module face plate
P2000
1
4
7
10
3
6
9
12
1
2
3
4
5
6
7
8
9
10
11
12
P2000
12345678 9101112131415161718192021222324
SERVICE
1
FC
CACHE
CLI CLI HOST
8G
2,4G
8G
2,4G
LINK
ACT
6Gb/s
2
FC

HP StorageWorks P2000 - G3 MSA Array Systems Specifications

General

Drive Types Supported	SAS, SATA
RAID Levels	RAID 0, 1, 3, 5, 6, 10, 50
Operating Temperature	10°C to 35°C (50°F to 95°F)
Model	HP StorageWorks P2000 G3 MSA
Controller Types	Dual Controller
Host Interface	iSCSI, SAS, Fibre Channel
Form Factor	2U
Number of Drive Bays	24
Power Supply	Dual, hot-plug, redundant power supplies
Cache Memory	2 GB per controller
