HP StorageWorks P2000 - G3 MSA Array Systems User Manual

HP StorageWorks P2000 G3 MSA System FC User Guide 19

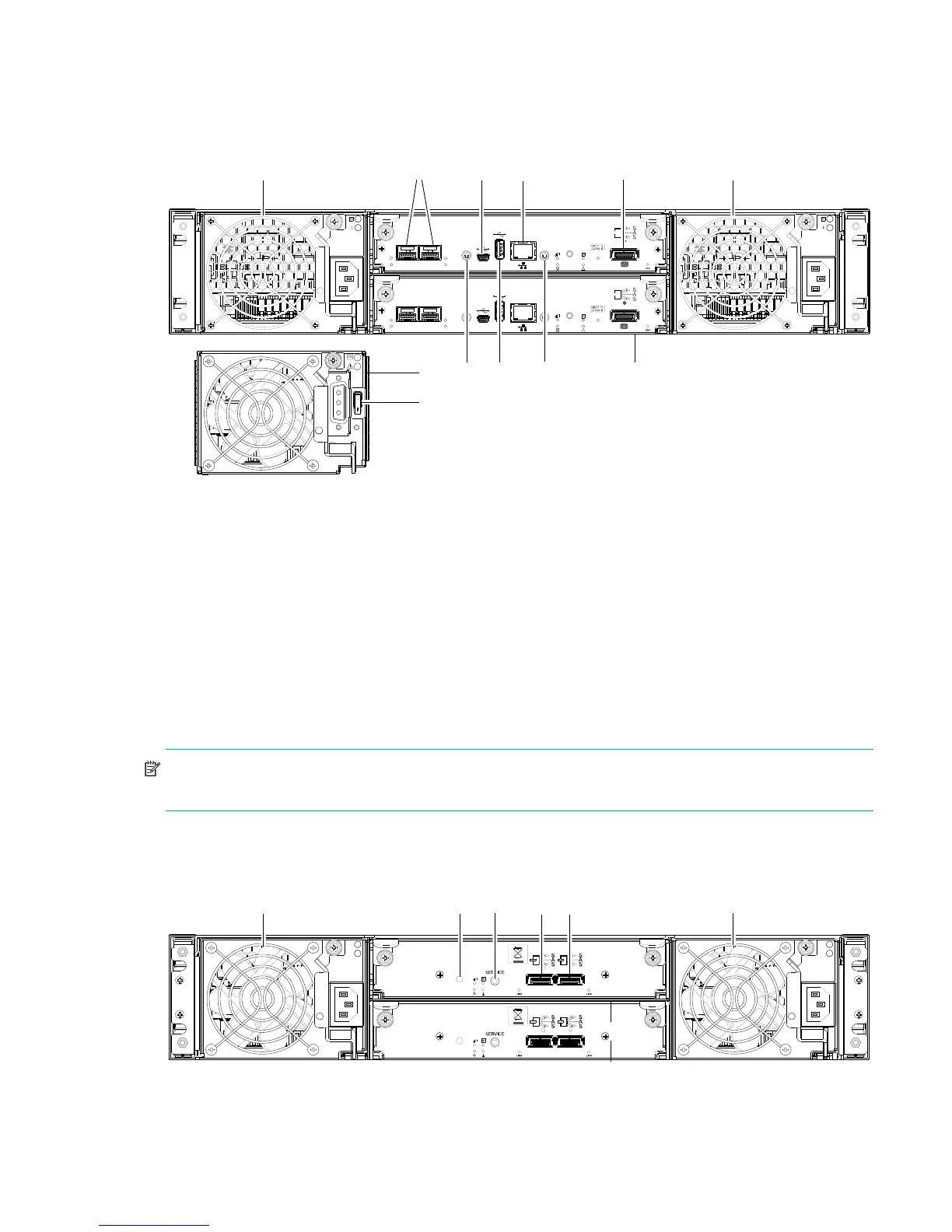

Rear panel components
P2000 G3 MSA System FC SFF and P2000 G3 MSA System FC LFF
*See http://www.hp.com/support/downloads for data pertaining to this port.
Also see P2000 G3 Software Support/Documentation CD for more information about this port.
Drive enclosures supported by the P2000 G3 MSA System controllers are described in the following
sections. The 3Gbps rated drive enclosures supported by the newer controller enclosures are listed for
compatibility and completeness.
NOTE: For optimal performance, 6Gbps rated P2000 G3 MSA System controller enclosures should be
cabled to 6Gbps rated P2000 G3 MSA System drive enclosures when expanding storage capacity.
P2000 6Gb 3.5" 12-drive enclosure
1 AC Power supplies
2 Host interface ports
3 CLI port (RS-232; reserved for future use)
4 CLI port (USB - Type B)*
5 Host port (USB - Type A; reserved for future use)
6 Network port
7 Service port (used by service personnel only)
8 Expansion port
9 Optional FC controller module
10 DC Power supply (2) — (DC model only)
11 DC Power switch
SERVICE
FC 2
FC 1
CACHE
CLI CLI HOST
8G
2,4G
8G
2,4G
SERVICE
CACHE
CLI CLI HOST
8G
2,4G
8G
2,4G
6Gb/s
6Gb/s
FC 2
FC 1
124681
9
q
3 5 7
-
1 Power supplies
2 Disabled button (used by engineering only)
3 Service port (used by service personnel only)
4 SAS In port (connects to controller enclosure)
5 SAS Out port (connects to another drive enclosure)
6 Optional I/O module
00
IN OUT
00
IN OUT
1235
6
14

HP StorageWorks P2000 - G3 MSA Array Systems Specifications

General

Drive Types Supported	SAS, SATA
RAID Levels	RAID 0, 1, 3, 5, 6, 10, 50
Operating Temperature	10°C to 35°C (50°F to 95°F)
Model	HP StorageWorks P2000 G3 MSA
Controller Types	Dual Controller
Host Interface	iSCSI, SAS, Fibre Channel
Form Factor	2U
Number of Drive Bays	24
Power Supply	Dual, hot-plug, redundant power supplies
Cache Memory	2 GB per controller
