HP StorageWorks P2000 G3 MSA System FC User Guide 61

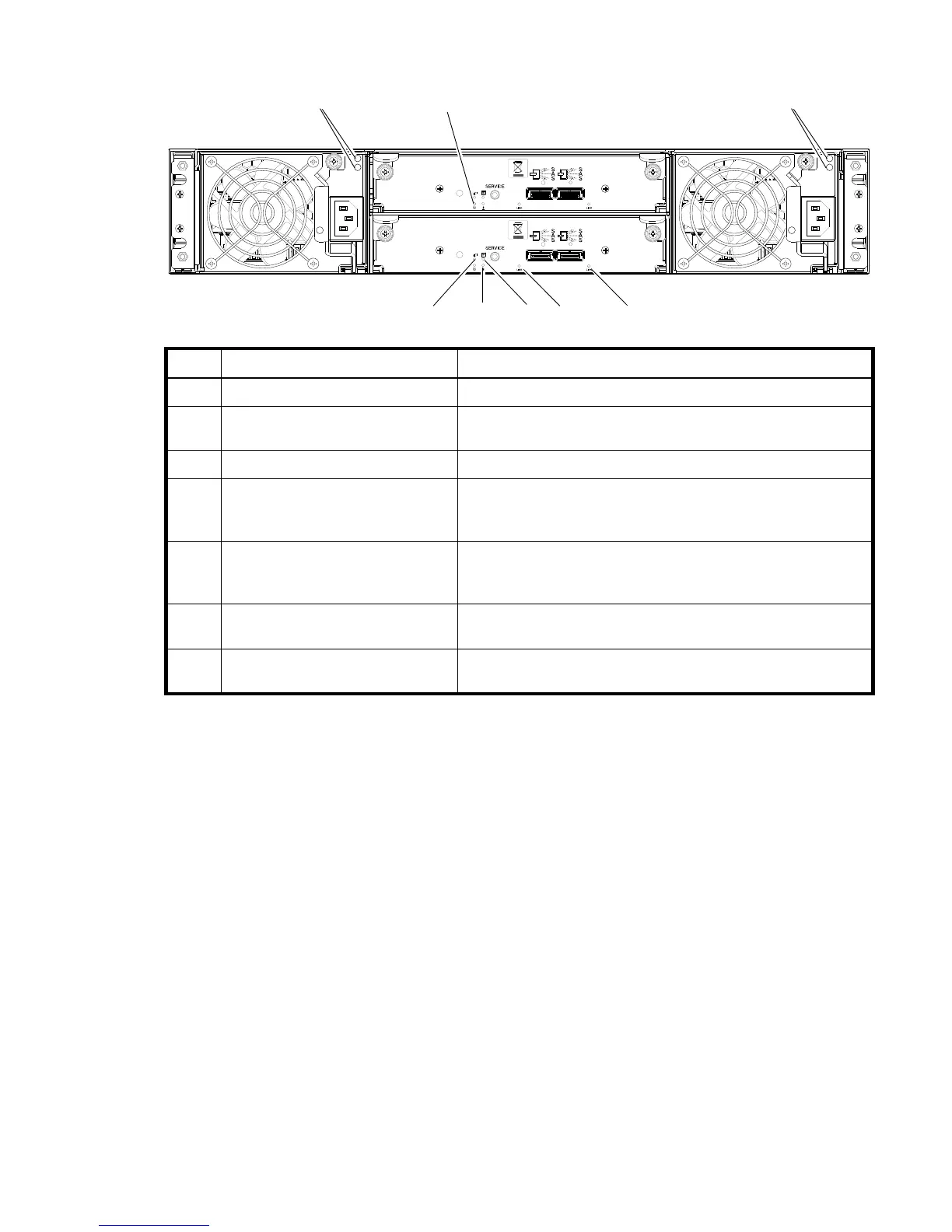

P2000 6Gb 3.5” 12-drive enclosure
LED Description Definition
1 Power supply LEDs See Power supply LEDs on page 63.
2 Unit Locator Off — Normal operation.
Blinking white— Physically identifies the expansion module.
3 OK to Remove Not implemented.
4 Fault/Service Required Amber — A fault has been detected or a service action is required.
Blinking amber — Hardware-controlled powerup or a cache flush
or restore error.
5 FRU OK Green — Expansion module is operating normally.
Blinking green — System is booting.
Off — Expansion module is not OK.
6 SAS In Port Status Green — Port link is up and connected.
Off — Port is empty or link is down.
7 SAS Out Port Status Green — Port link is up and connected.
Off — Port is empty or link is down.
00
IN OUT
00
IN OUT
2
3 4 5
7
1
6
1
