62 LED descriptions

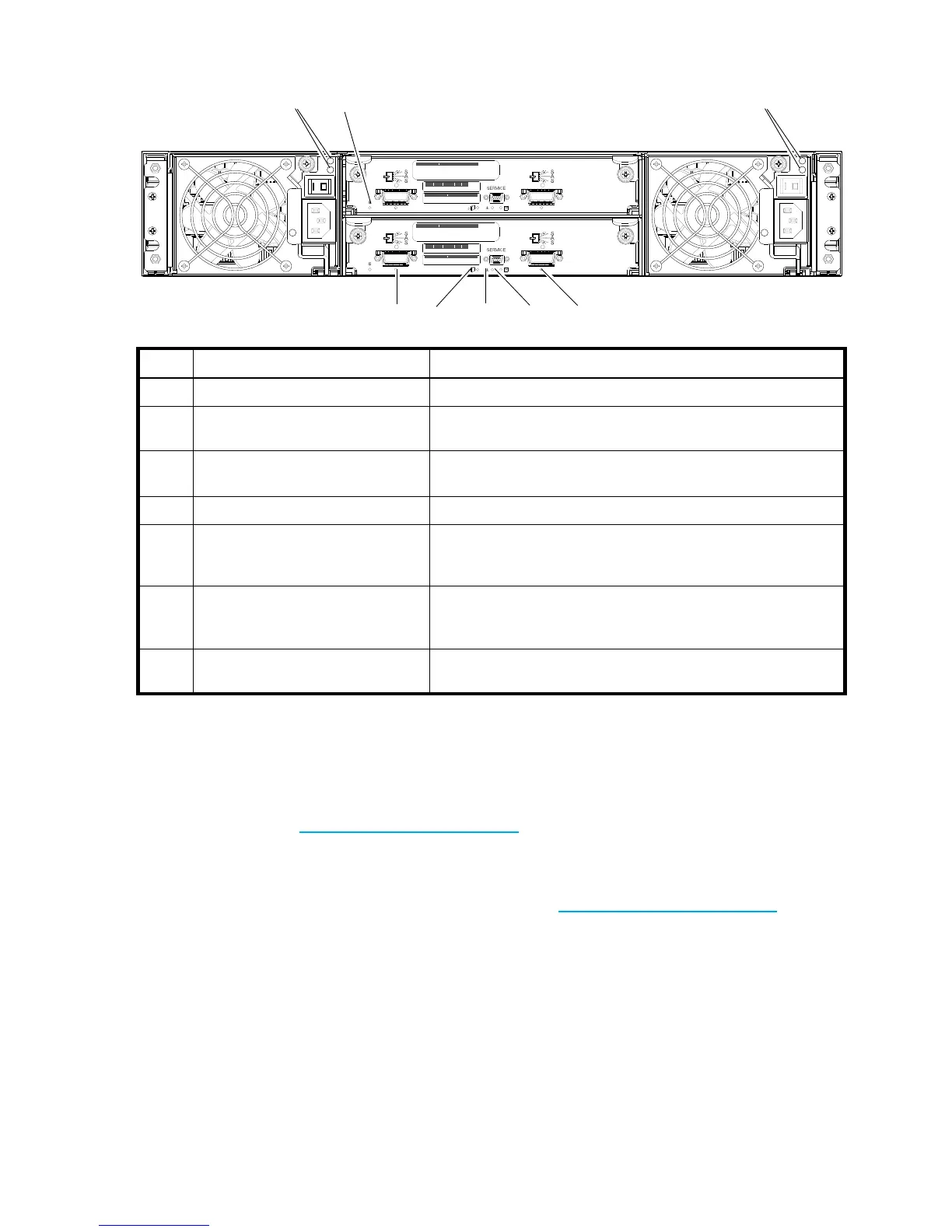

MSA2000 3Gb 3.5" 12-drive enclosure
MSA70 3Gb drive enclosure
The P2000 G3 MSA System FC SFFHP P2000 G3 MSA System FCcan also be attached to an MSA70
3Gb drive enclosure running firmware version 2.18 or later. For information about the MSA70 3Gb drive
enclosure, including detailed steps to upgrade the firmware, see the HP StorageWorks 70 Modular Smart
Array Enclosure User Guide located on the MSA2000 G2 Software Support/Documentation CD shipped
with your product, or at http://hp.com/support/manuals
.
D2700 6Gb drive enclosure
P2000 G3 MSA controller enclosures support D2700 6Gb drive enclosures equipped with 25 disk drives
per enclosure. For information about P2000 G3 products, visit http://www.hp.com/go/p2000
.
LED Description Definition
1 Power supply LEDs See Power supply LEDs on page 63.
2 Unit Locator Off — Normal operation.
Blinking white— Physically identifies the expansion module.
3 SAS In Port Status Green — Port link is up and connected.
Off — Port is empty or link is down.
4 OK to Remove Not implemented.
5 Fault/Service Required Amber — A fault has been detected or a service action is required.
Blinking amber — Hardware-controlled powerup or a cache flush
or restore error.
6 FRU OK Green — Expansion module is operating normally.
Blinking green — System is booting.
Off — Expansion module is not OK.
7 SAS Out Port Status Green — Port link is up and connected.
Off — Port is empty or link is down.
