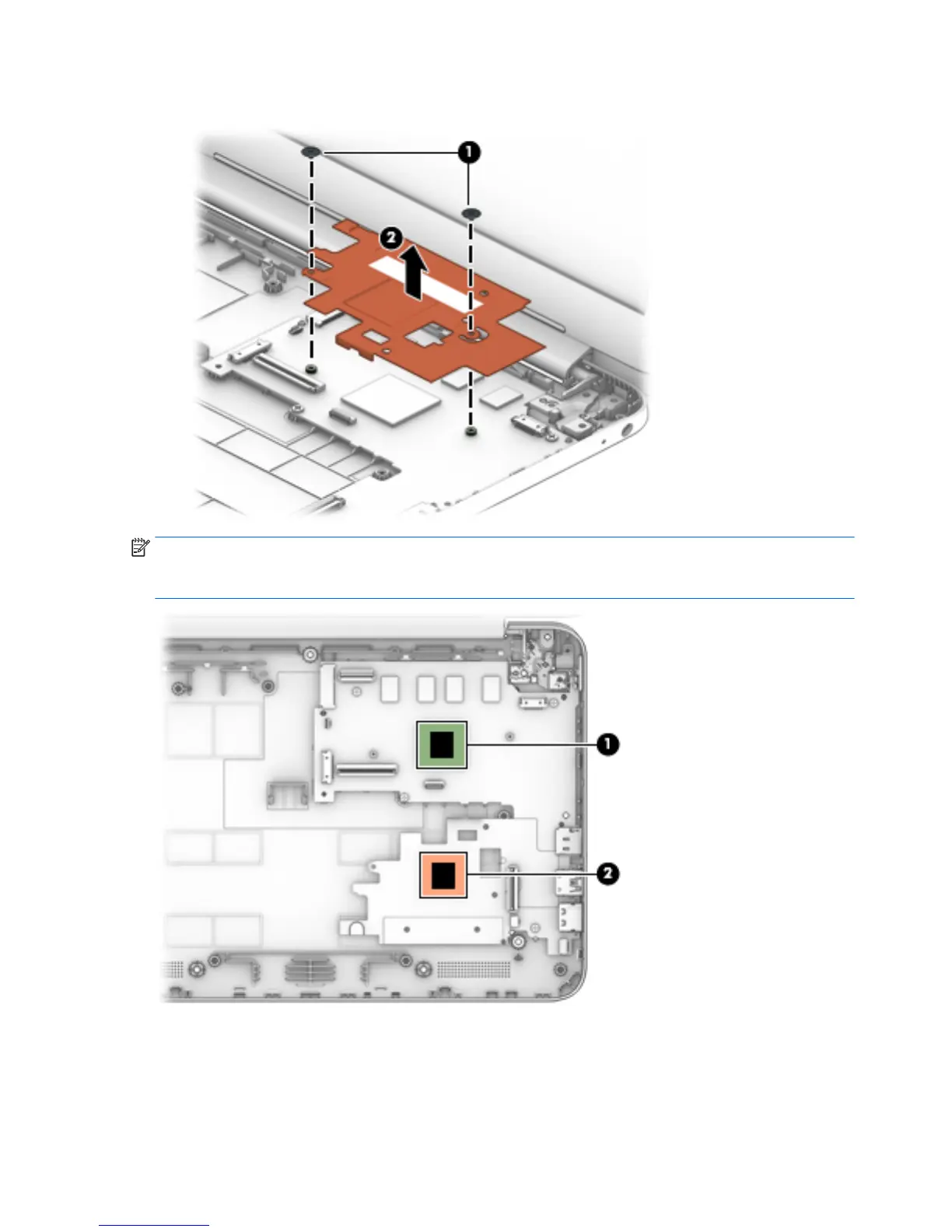

2. Remove the heat sink (2).
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink
and the system board components each time the heat sink is removed. Thermal paste is used on
the processor (1) and the heat sink section (2) that services it.
Reverse this procedure to install the heat sink.
48 Chapter 5 Removal and replacement procedures
