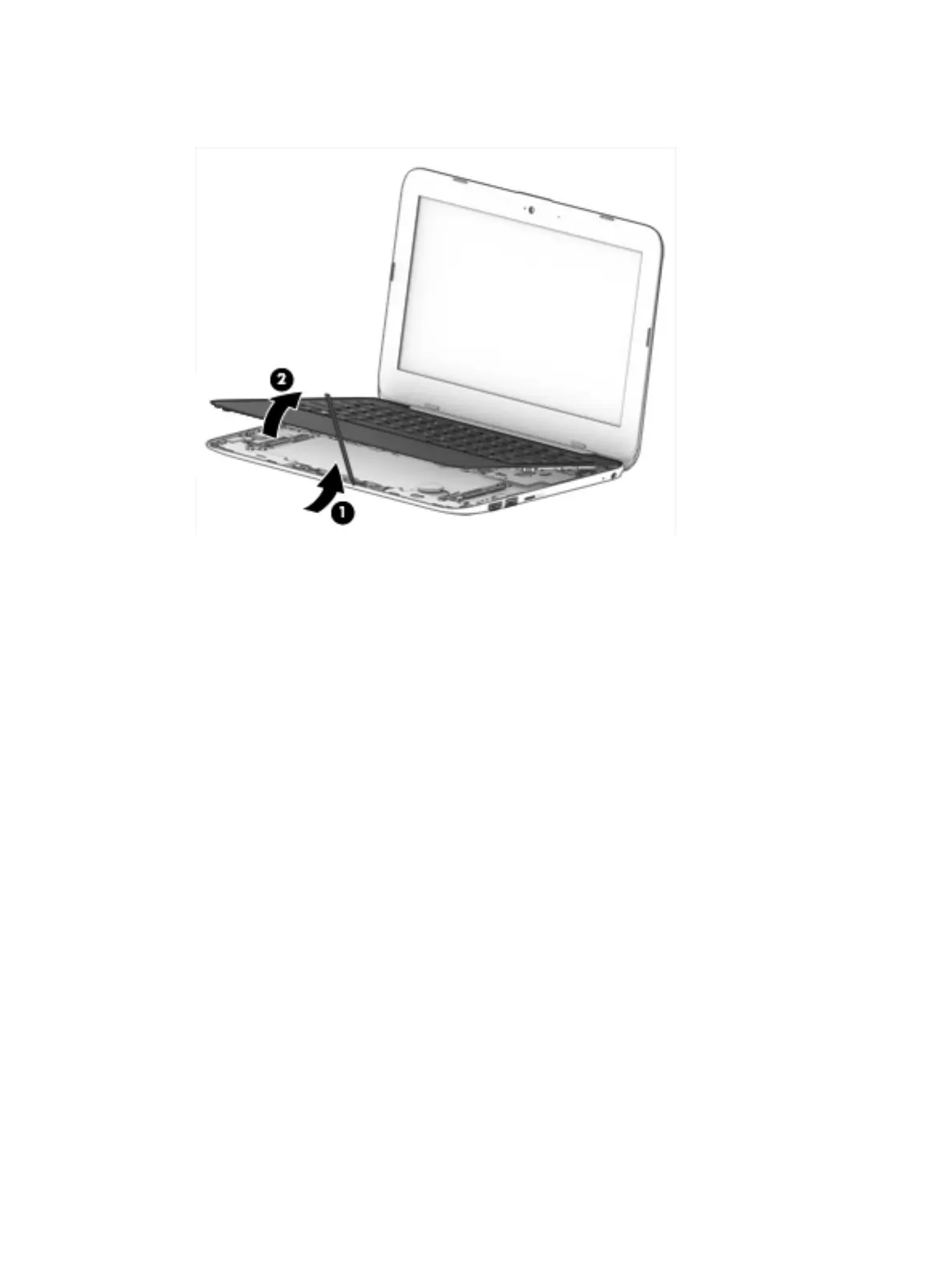

5. Lift the front edge (2) of the keyboard/top cover until it separates from the front edge of
the bottom cover.
6. Disconnect the battery cable from the system board (1).
7. Release the zero insertion force (ZIF) connector (2) to which the power button board cable is attached,
and then disconnect the power button board cable from the system board.
8. Release the ZIF connector (3) to which the keyboard cable is attached, and then disconnect
the keyboard cable from the system board.
9. Release the ZIF connector (4) to which the TouchPad board cable is attached, and then disconnect
the TouchPad board cable from the system board.
Component replacement procedures 23
