Display assembly
NOTE: The display assembly is spared at the subcomponent level only. For more display assembly spare
part information, see the individual removal subsections.
Before removing the display assembly, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the keyboard/top cover (see Keyboard/top cover on page 21).

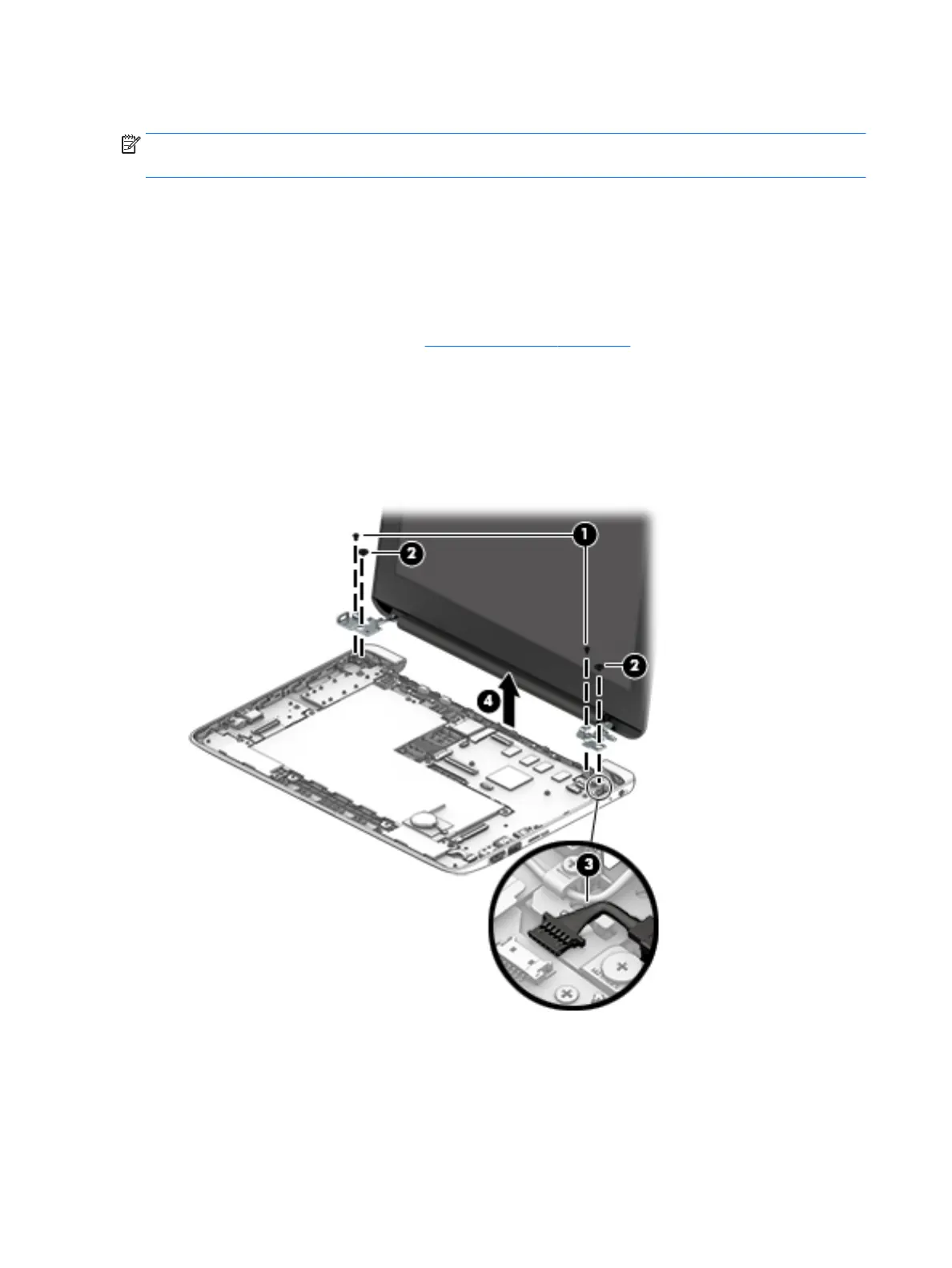

Remove the display assembly:
1. Remove the two Phillips PM2.5×4.0 screws (1) and the two broad head Phillips PM2.5×2.5 screws
(2)that secure the display assembly to the bottom cover.
2. Release the power connector cable (3) from the right hinge area.
3. Remove the display assembly (4).
4. If it is necessary to replace the display bezel or any of the display assembly subcomponents:
36 Chapter 5 Removal and replacement procedures
