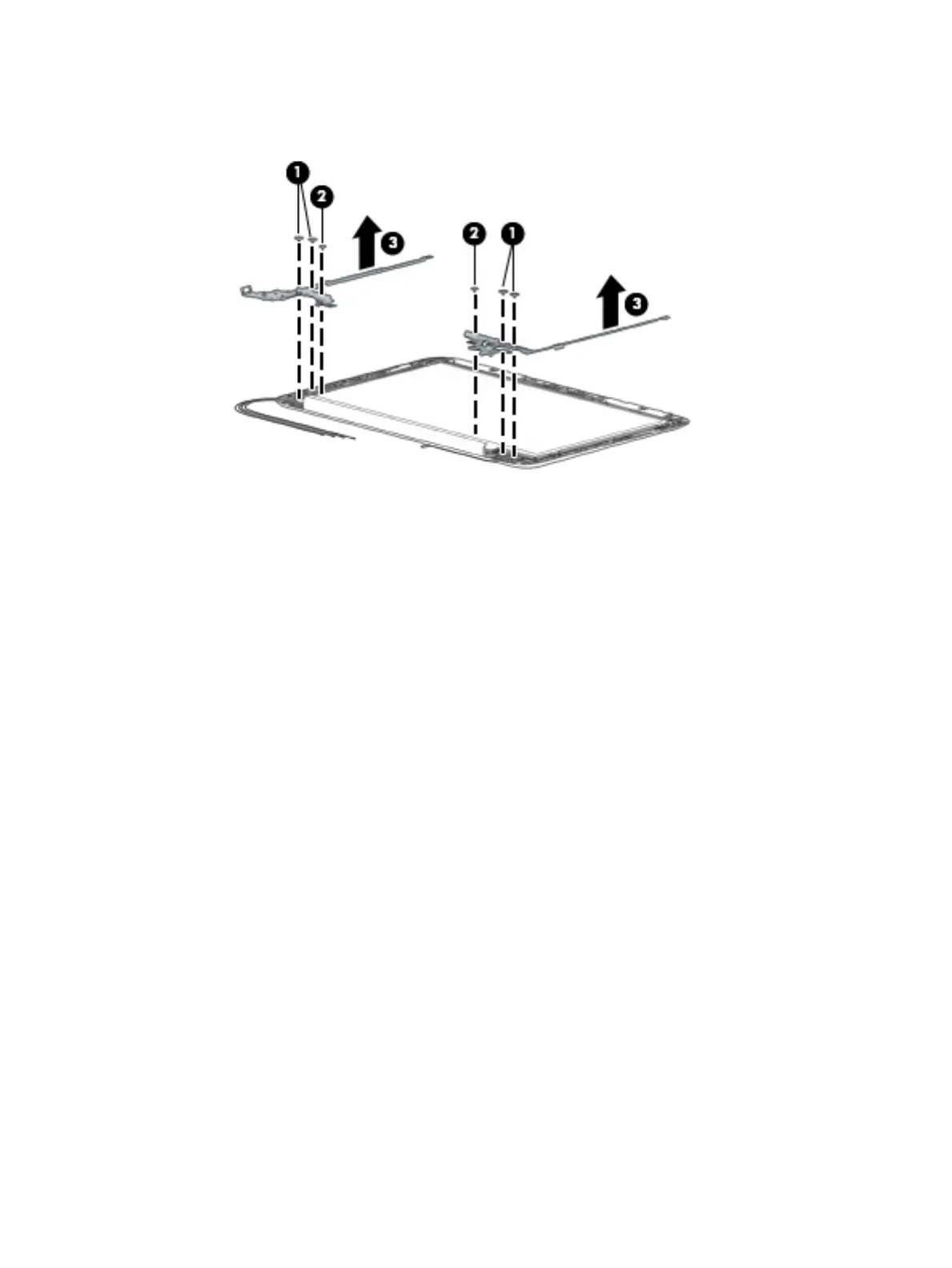

c. Remove the display hinges (3).
The display hinges are included in the Display hinge kit, spare part number L02785-001.
7. If it is necessary to replace the display panel cable:
a. Disconnect the display panel cable (1) from the camera/microphone module.
b. Release the display panel cable from the retention clips (2) and routing channel built into the right
side of the display back cover.
40 Chapter 5 Removal and replacement procedures
