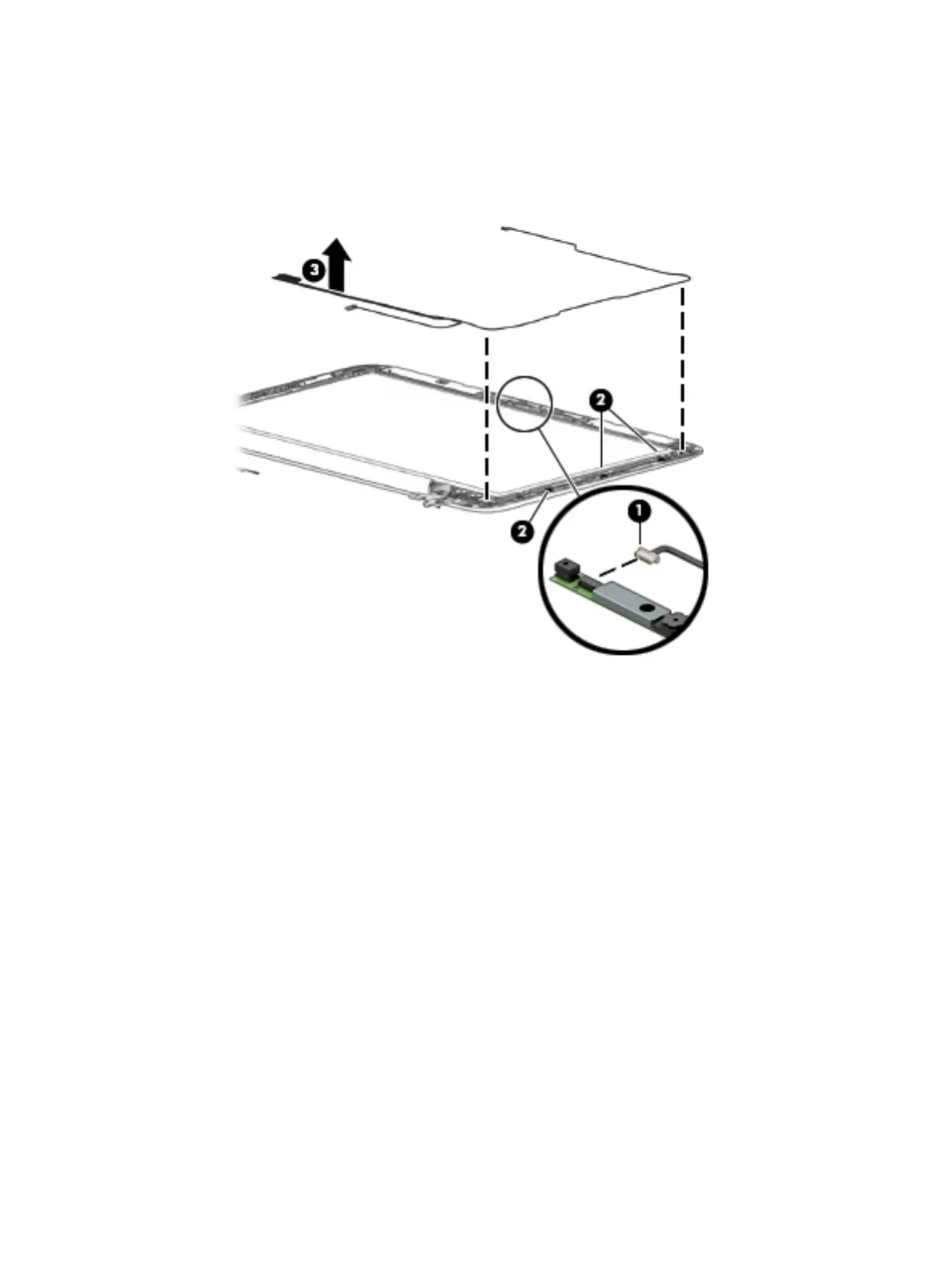

c. Remove the display panel cable (3).
The display panel cable is available using spare part number L04052-001 (for use on models
equipped with LG touchscreen display panels), L04051-001 (for use on models equipped with AUO
touchscreen display panels), and L02786-001 (for use on models equipped with non-touchscreen
display panels).
8. If it is necessary to replace the camera/microphone module:
a. Detach the camera/microphone module (1) from the display back cover. (The camera/microphone
module is attached to the display back cover with double-sided adhesive at two locations.)
b. Disconnect the camera/microphone module cable (2) from the camera/microphone module.
Component replacement procedures 41
