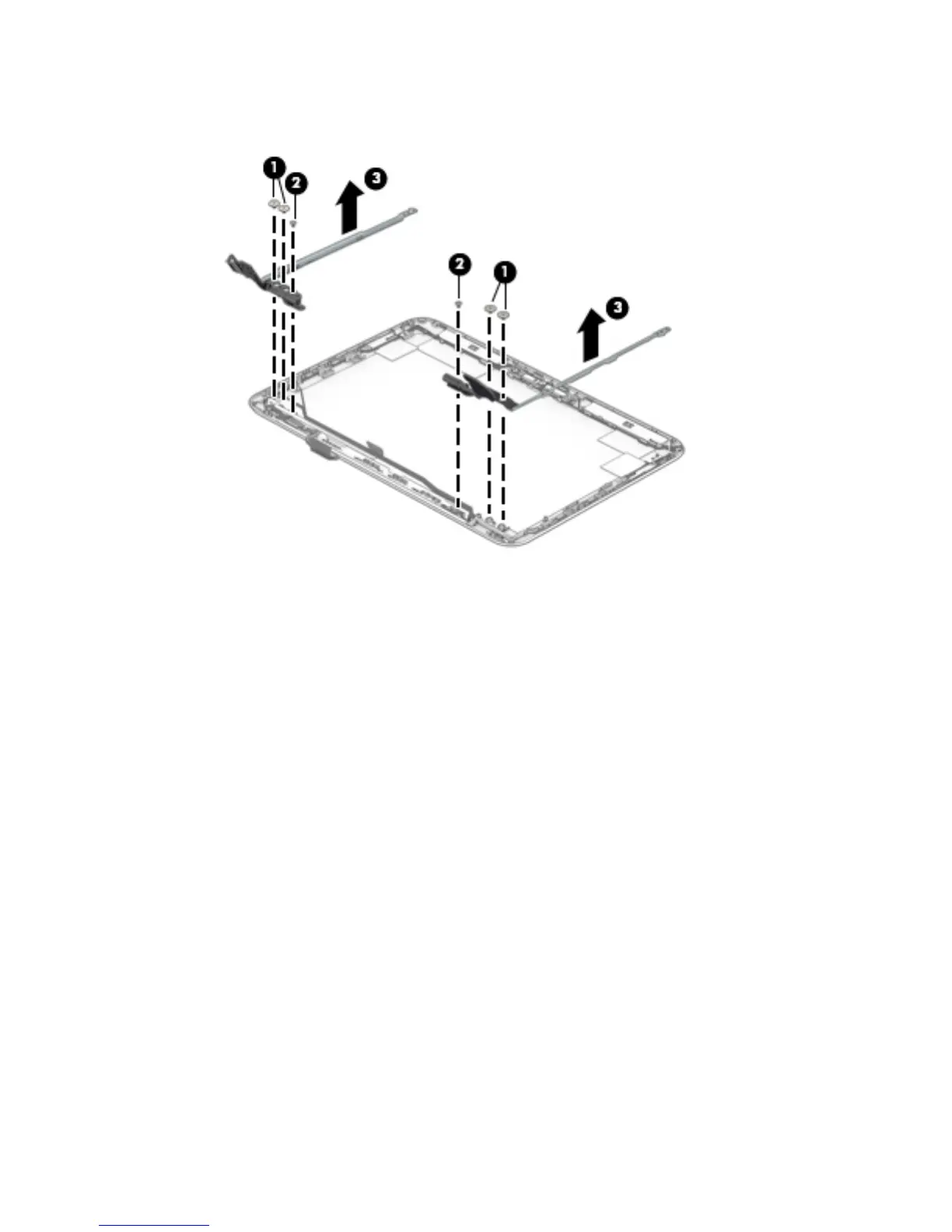

d. Remove the display hinges (3).
The display hinges are included in the Display Hinge Kit, spare part number 792893-001.
11. If it is necessary to replace the WWAN antenna:
a. Remove the display bezel.
b. Remove the display panel.
c. Remove the display hinges.
d. Detach the WWAN antenna transceivers (1) from the display enclosure. (The WWAN antenna
transceivers are attached to the display enclosure with double-sided adhesive.)
52 Chapter 5 Removal and replacement procedures
