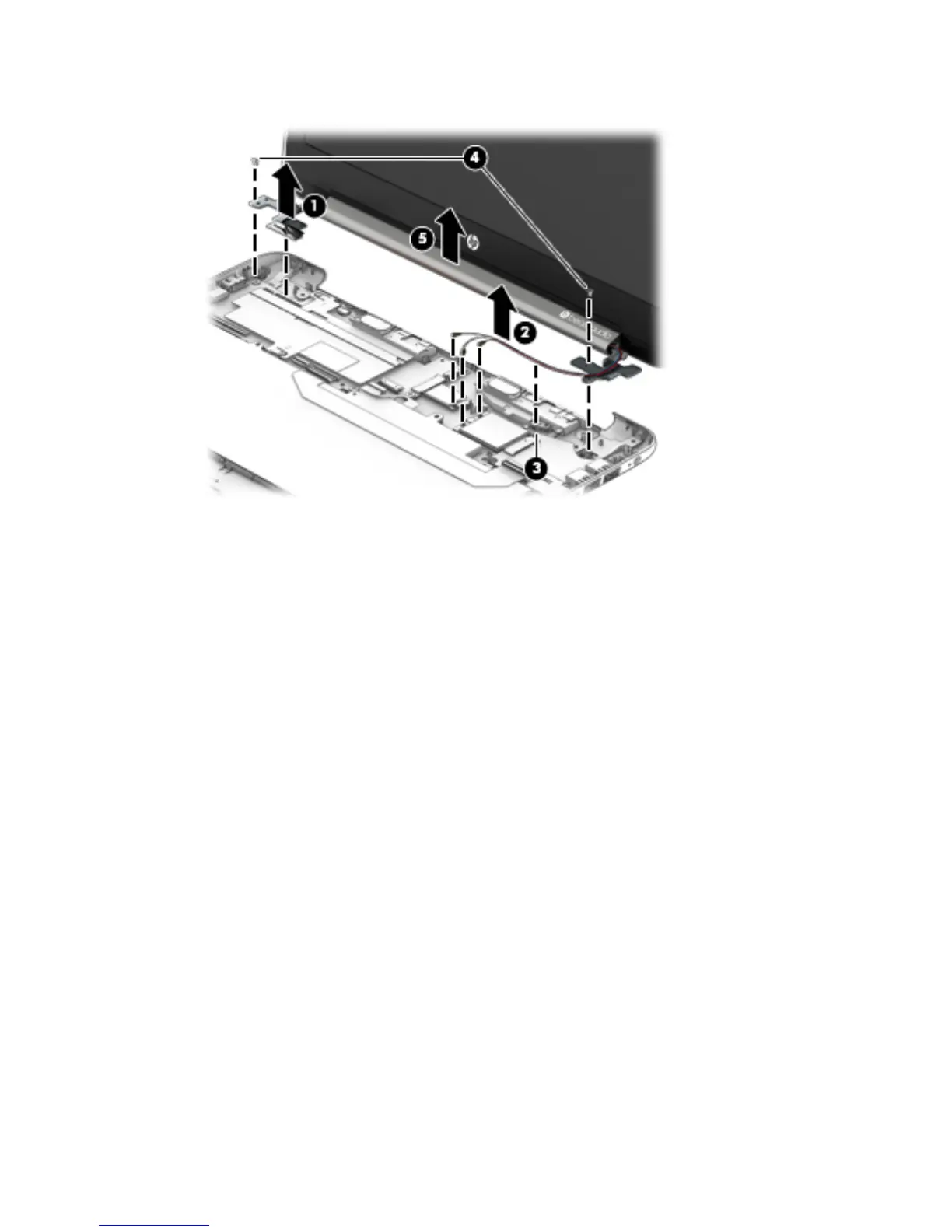

5. Remove the display assembly (5).
6. If it is necessary to replace the display bezel:
The display bezel is available using the following spare part numbers:
783043-001: Silver finish
786041-001: Purple finish
788087-001: Green finish
a. Remove the display panel screw covers (1).
The display panel screw covers are included in the Rubber Kit, spare part number 784533-001.
b. Remove the two Phillips PM1.9×2.1 broad head screws (2) that secure the display panel to the
display assembly.
c. Flex the inside edges of the bottom (3), left and right sides (4), and top (5) of the display bezel
until it disengages from the display enclosure.
7. If it is necessary to replace the raw display panel:
a. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display panel to the display
assembly.
Display assembly 37
