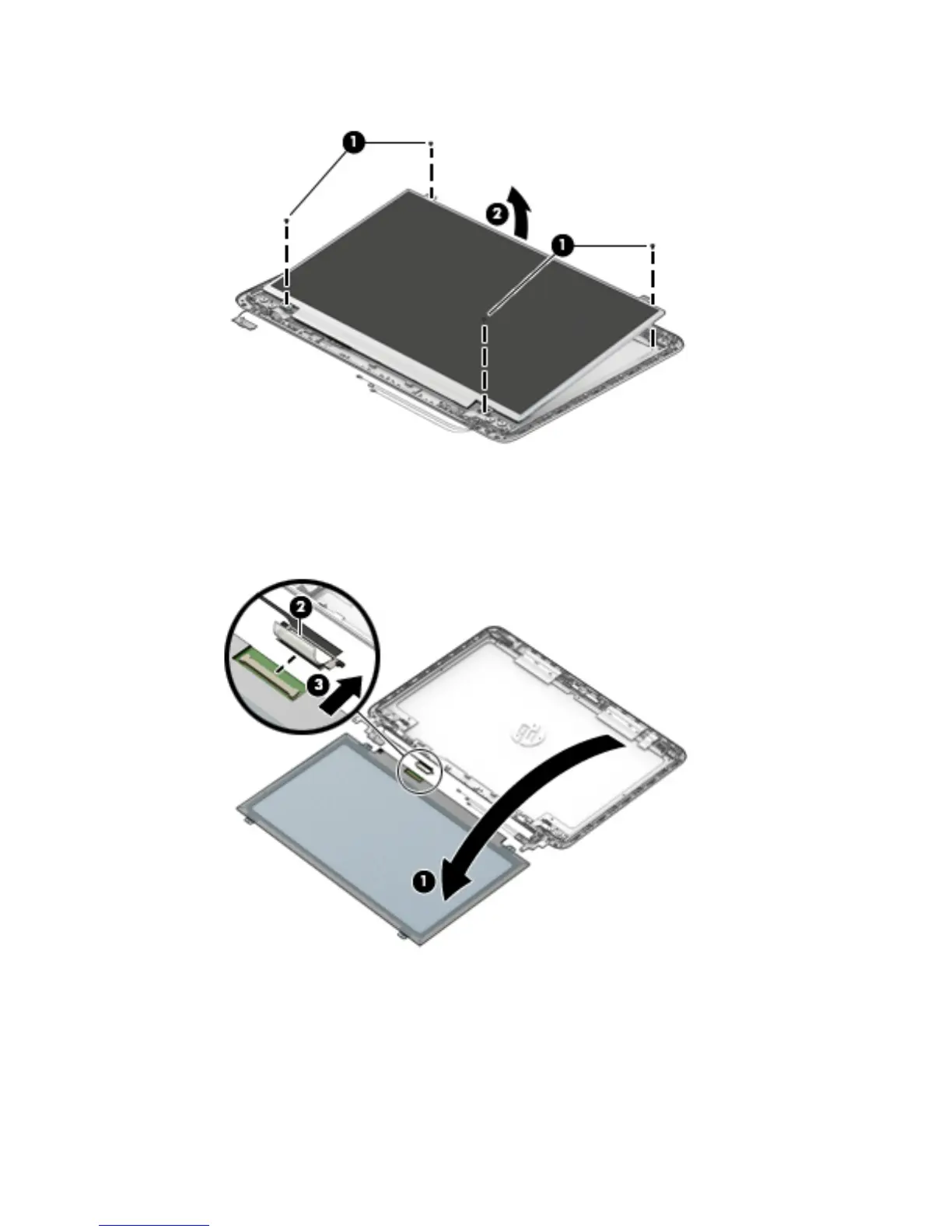

b. Lift the top edge of the display panel (2).
c. Swing the display panel up and forward until it rests upside down in front of the display enclosure
(1).
d. Release the adhesive strip (2) that secures the display panel cable connector to the display panel.
e. Disconnect the display panel cable (3) from the display panel.
The display panel is available using spare part number 783052-001.
8. If it is necessary to replace the webcam/microphone module:
a. Release the webcam/microphone module cable from the clip (1) built into the display enclosure.
b. Detach the webcam/microphone module (2) from the display enclosure. (The webcam/
microphone module is attached to the display enclosure with double-sided adhesive.)
38 Chapter 4 Removal and replacement procedures for Authorized Service Provider parts
