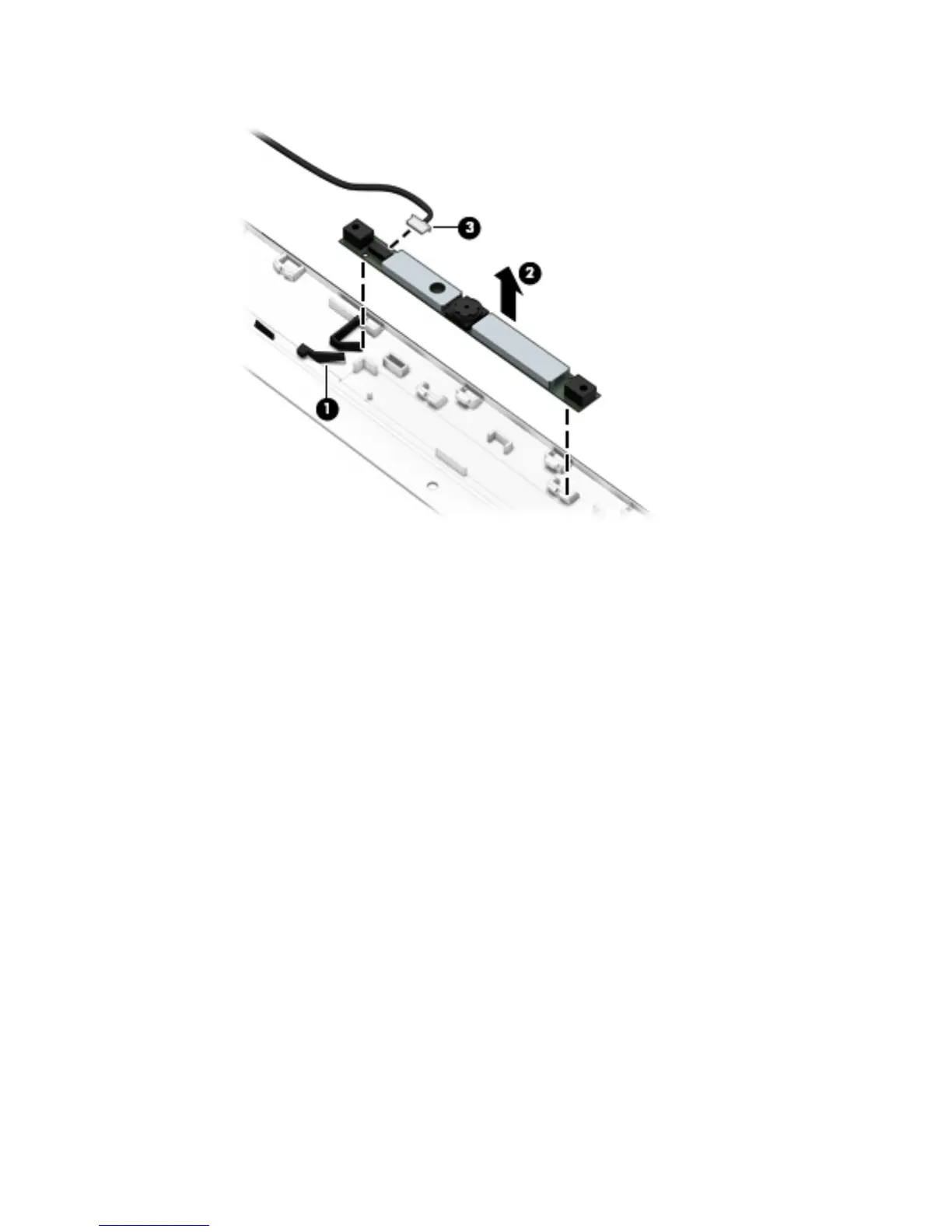

c. Disconnect the webcam/microphone module cable (3) from the webcam/microphone module.
d. Remove the webcam/microphone module.
The webcam/microphone module is available using spare part number 784986-001.
9. If it is necessary to replace the display hinges:
a. Remove the following screws that secure the display hinges to the display enclosure:
(1) Two Phillips PM1.9×2.8 screws at the top of the display hinge bracket
(2) Four Phillips PM2.4×3.2 broad head screws on the inside edge of each display hinge
(3) Four Phillips PM2.4×3.7 screws on the outside edge of each display hinge
Display assembly 39
