Removal and Replacement Procedures
3-6 HP TFT5110R Maintenance and Service Guide
HP CONFIDENTIAL Codename: Pug Part Number: 292490-001 Last Saved On: 10/23/02 10:13 AM
To remove the monitor:
1. Remove the rear cover.
2. Remove the screw securing the grounding clip and cable to the metal controller cover.

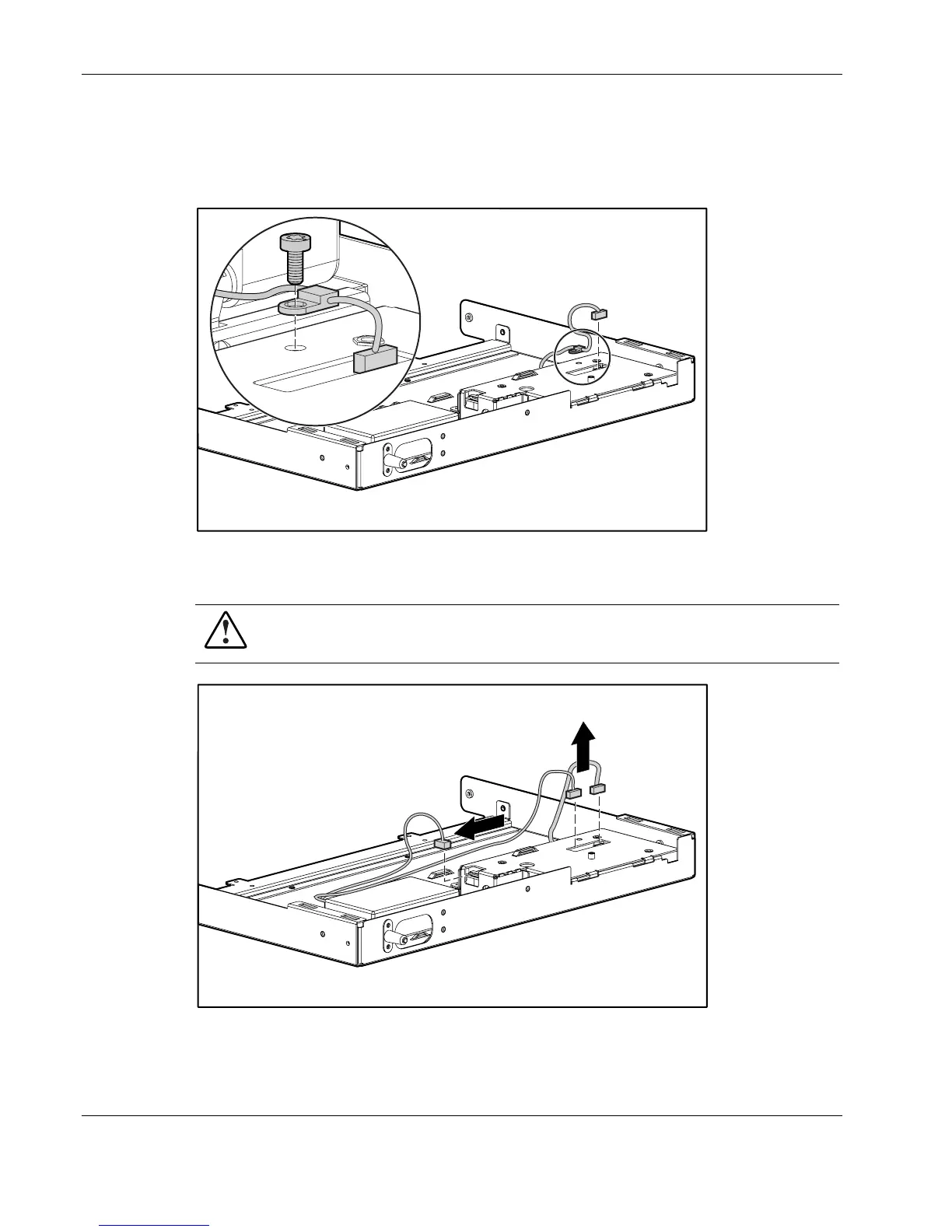

Figure 3-4: Removing the grounding clip
3. Unplug the three cables connecting the monitor to the controller board.
WARNING: Do not pull on the exposed wires. Pull only on the plastic shroud
connectors attached to the wires.
Figure 3-5: Disconnecting the cables
