Removal and Replacement Procedures
HP TFT5110R Maintenance and Service Guide 3-7
HP CONFIDENTIAL Codename: Pug Part Number: 292490-001 Last Saved On: 10/23/02 10:13 AM
4. Cut the tie wrap securing the cables to the metal tray.
5. Remove the four screws (1) securing the monitor to the metal tray, and then remove the
monitor (2).
NOTE: The cables attached to the monitor are not shown in the figure below.
1
2
1

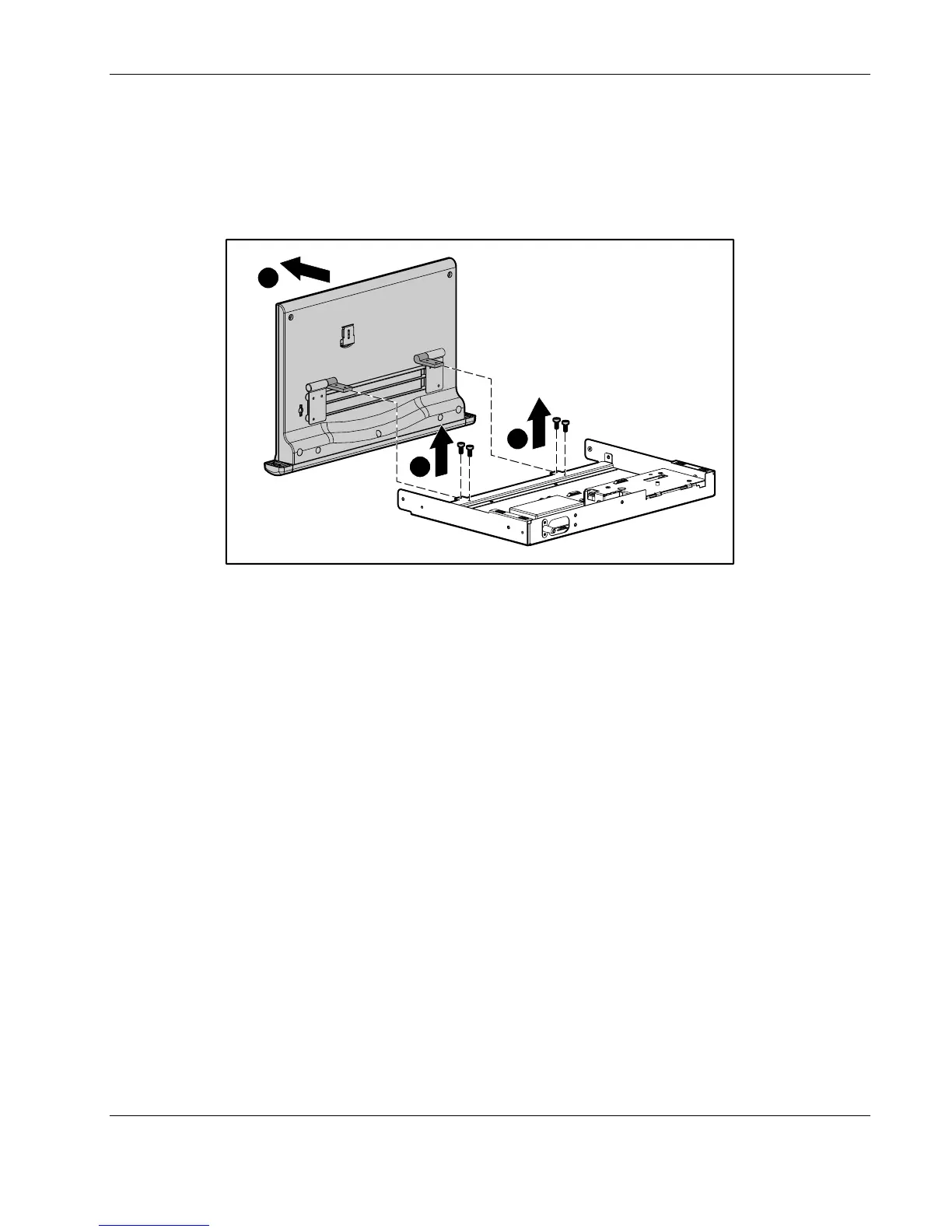

Figure 3-6: Removing the screws securing the monitor
To replace the monitor, reverse the above procedure.
