(3): CMOS header/jumper

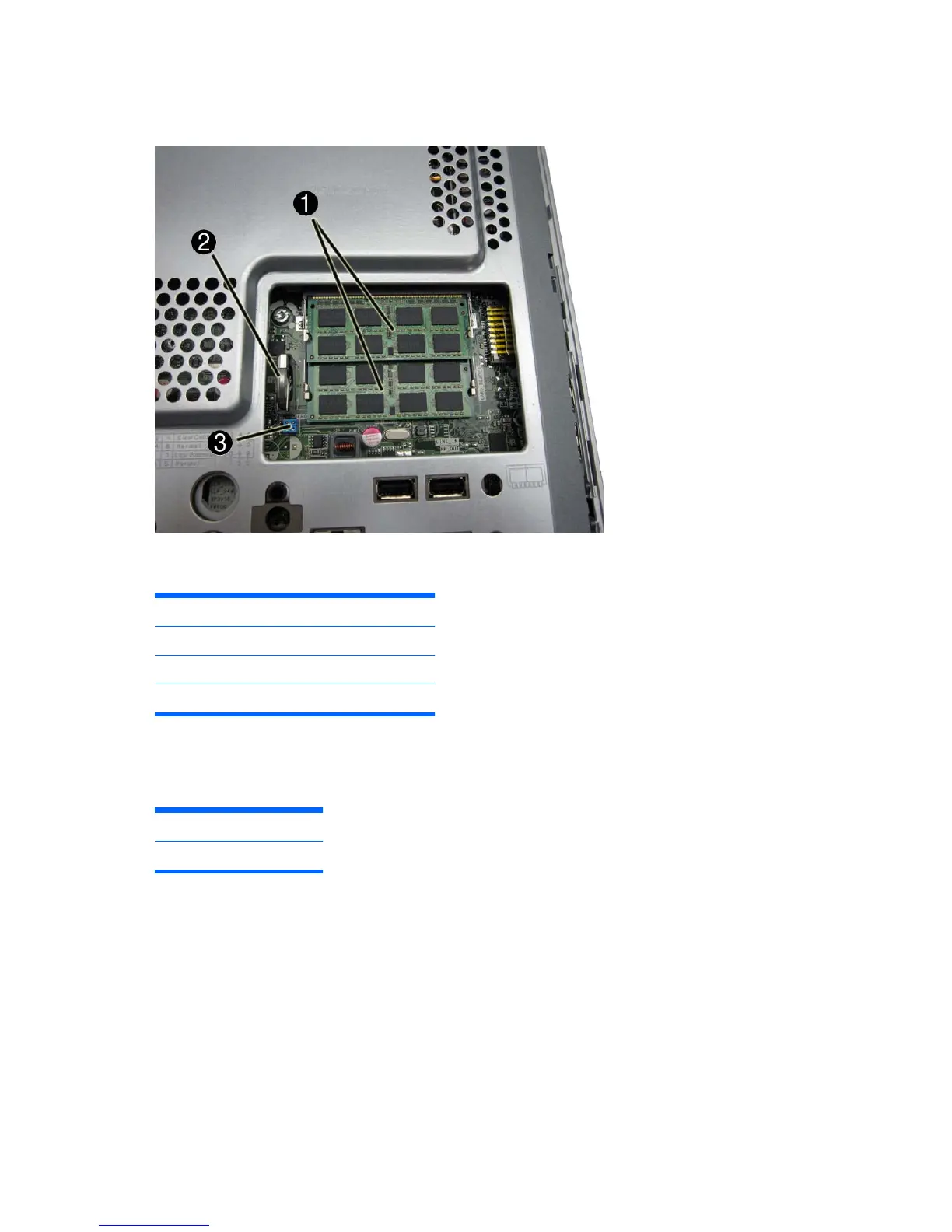

Figure 7-4 Memory cover components
A jumper settings table is printed on the sheet metal to the left of the memory cover.
Table 7-1 Jumper settings
24Clear CMOS
46Normal
13Clear Password
35Normal
The following table shows pin number locations for the header.
Table 7-2 Pin numbers
135
246
To replace the memory cover, reverse the removal procedures.
