System Board
Description Spare part number
System board 671547-001
The system board is secured with nine screws.

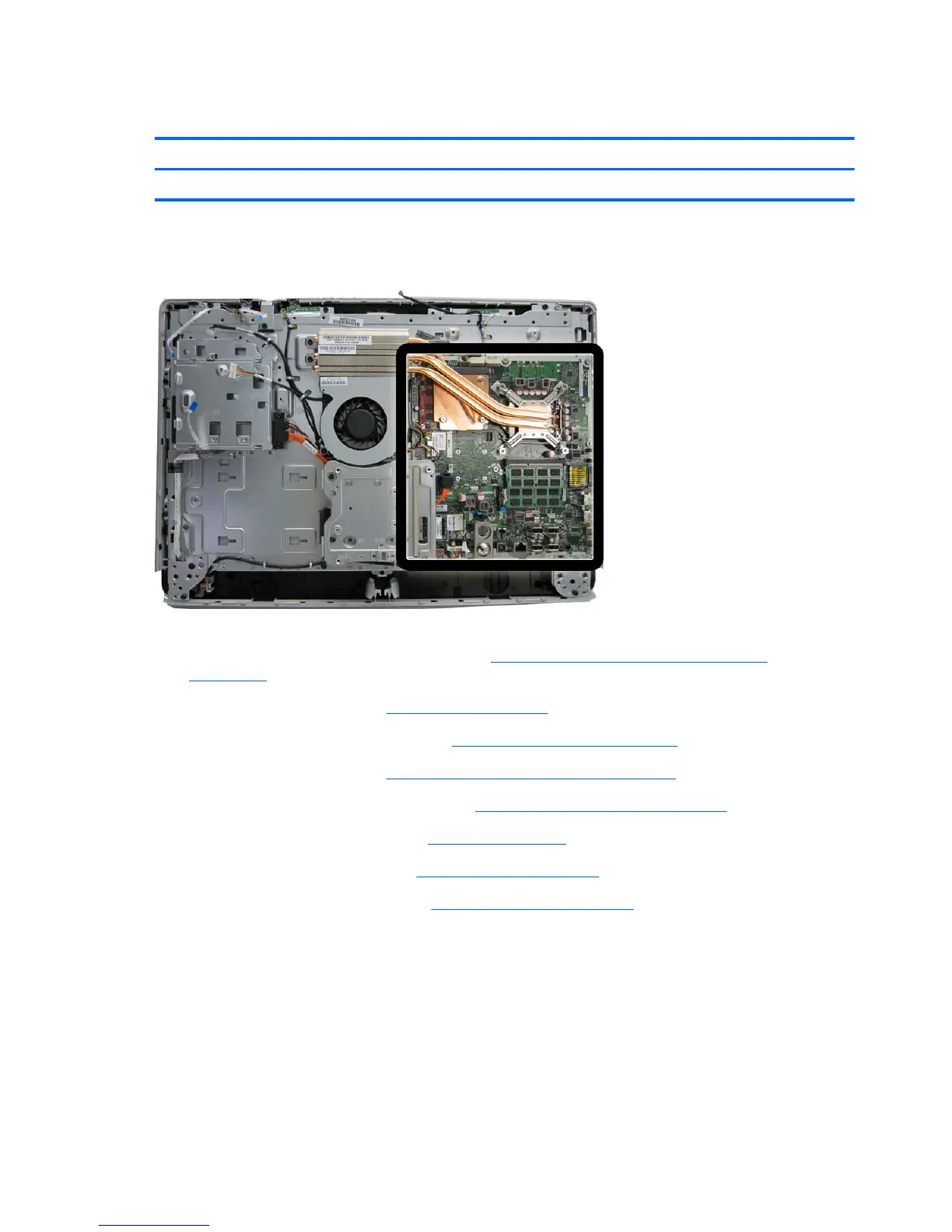

Figure 7-47 System board location
To remove the system board:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 40).
2. Remove the rear cover (see
Rear Cover on page 41).
3. Remove the system board cover (see
System Board Cover on page 60).
4. Remove the heat sinks (see
Heat sinks (Thermal Modules) on page 66).
5. Remove the coaxal cable connector (see
Coaxal Cable Connector on page 78).
6. Remove the memory module (see
Memory on page 45).
7. Remove the WLAN module (see
WLAN Module on page 62).
8. Remove the TV tuner module (see
TV Tuner Module on page 64).
9. Disconnect all cables from the system board, noting their location for reinstallation.
80 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
