Converter Board
Description Spare part number
Converter board 671569-001
Converter cable 671599-001
The converter board is located on the left side of the computer. It is secured with 2 screws and has 2
connectors.

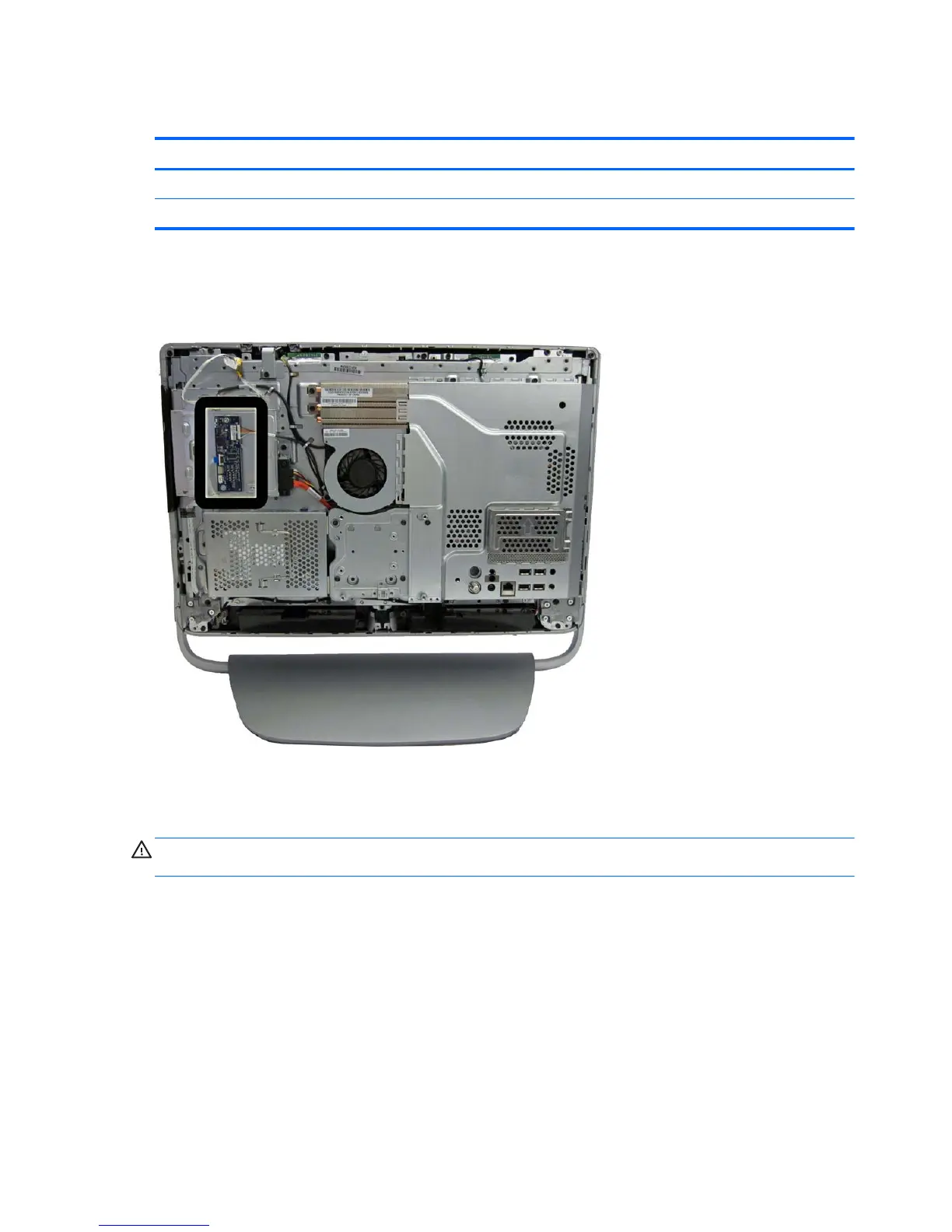

Figure 7-12 converter board location
The backlight cable differs depending on the display panel vendor.
All display panel use the same converter board. You must properly set the jumper on the converter
board based on the vendor that produced the display panel.
CAUTION: Failure to properly set the converter board jumper can result in damage to the converter
board.
See the following image for display panel jumper settings. This information is also printed on the
computer next to the converter board.
52 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
