3. Remove the memory cover (see Memory Cover on page 43).
4. To remove a memory module, press outward on the two latches on each side of the SODIMM
(1), allow the module to lift up to about a 45-degree angle, and then pull the SODIMM out of the
socket (2).

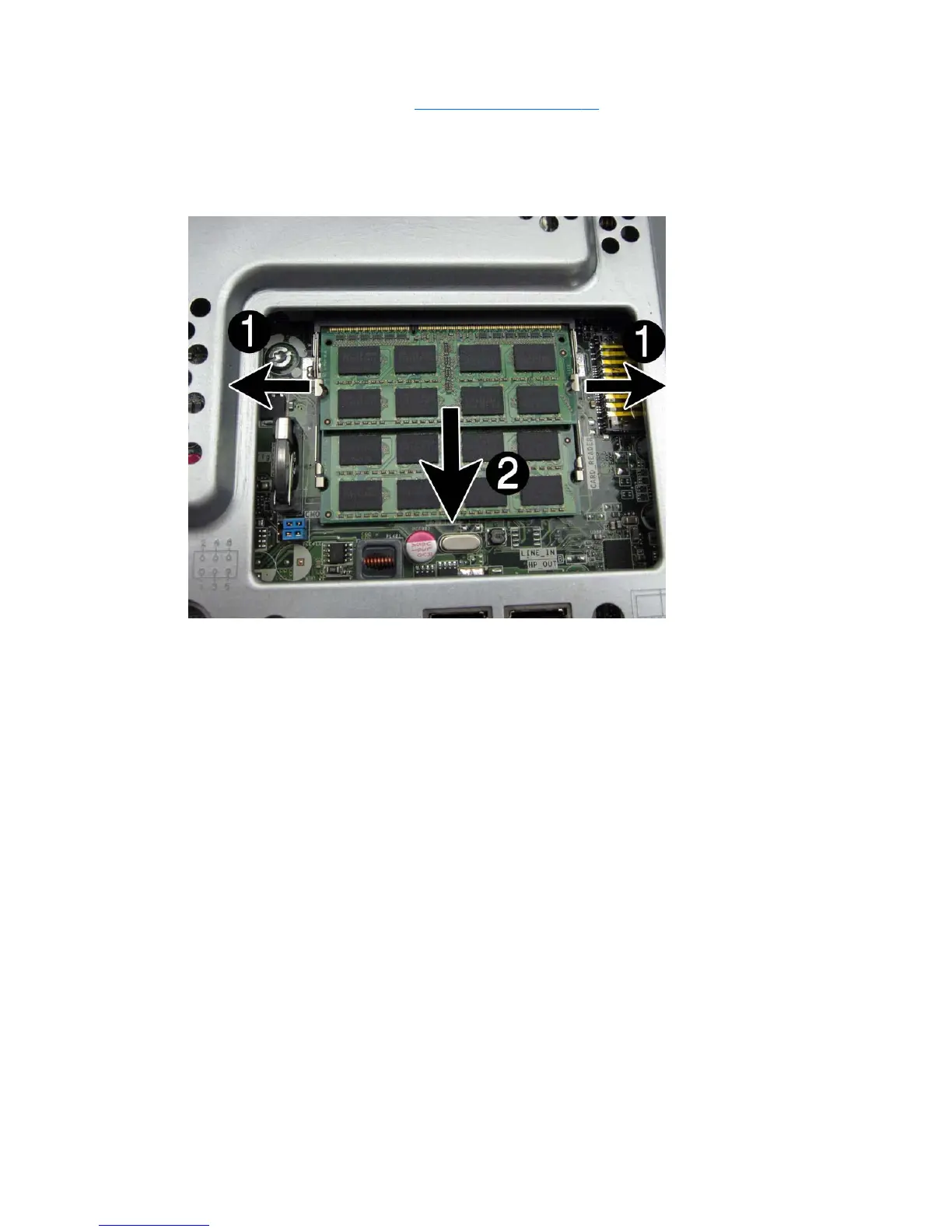

Figure 7-5 Removing a memory module
The computer automatically recognizes the additional memory when you turn on the computer.
46 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
