5. Remove the 2 Phillips screws (2) that secure the module to the computer.

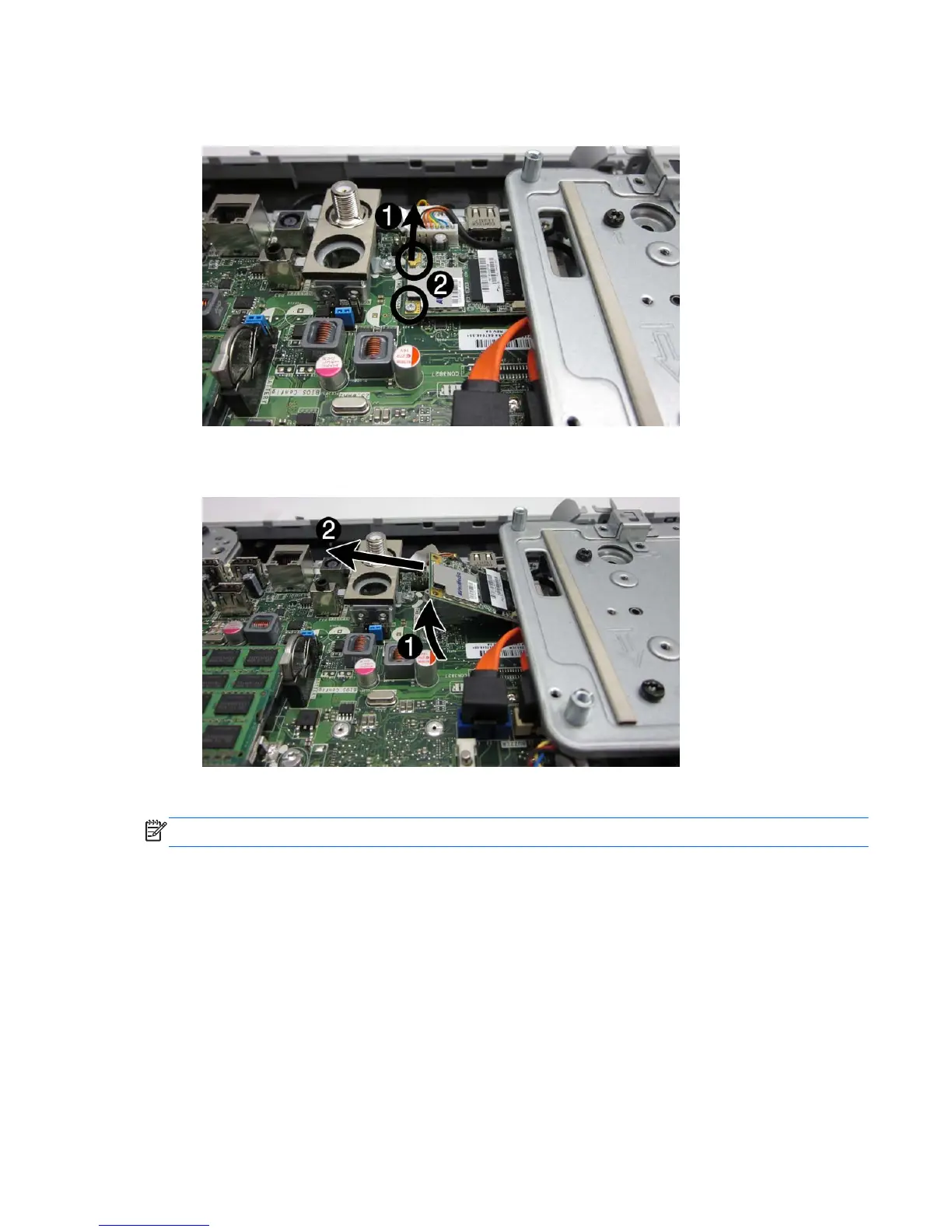

Figure 7-30 Removing the TV tuner module antenna and screws
6. Lift the module to a 45-degree angle (1), and then pull it away to remove it from the socket (2)
Figure 7-31 Removing the TV tuner module
To install the TV tuner module, reverse the removal procedures.
NOTE: TV tuner modules are designed with a notch to prevent incorrect insertion.
TV Tuner Module 65
