6. Lift the processor heat sink off the computer (3).

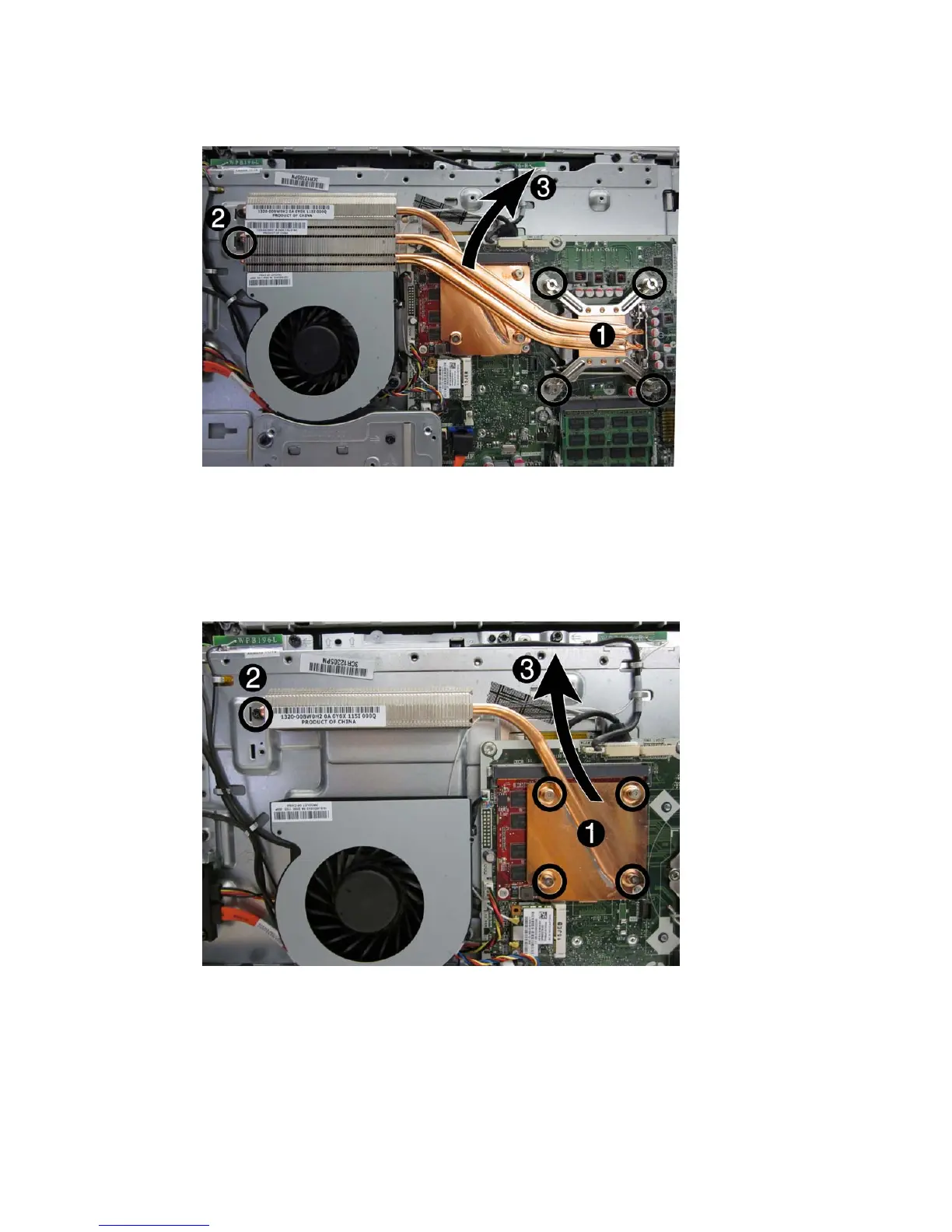

Figure 7-33 Removing the processor heat sink
7. If you need to remove the graphics heat sink, loosen the 4 captive Torx screws (1) that secure
the heat sink to the computer.
8. Remove the 1 non-captive Torx screw (2) that secures the heat sink to the computer.
9. Lift the graphics heat sink off the computer (3).
Figure 7-34 Removing the graphics heat sink
To install the heat sinks, reverse the removal procedures.
Heat sinks (Thermal Modules) 67
