Upgrading and Replacing PC Hardware

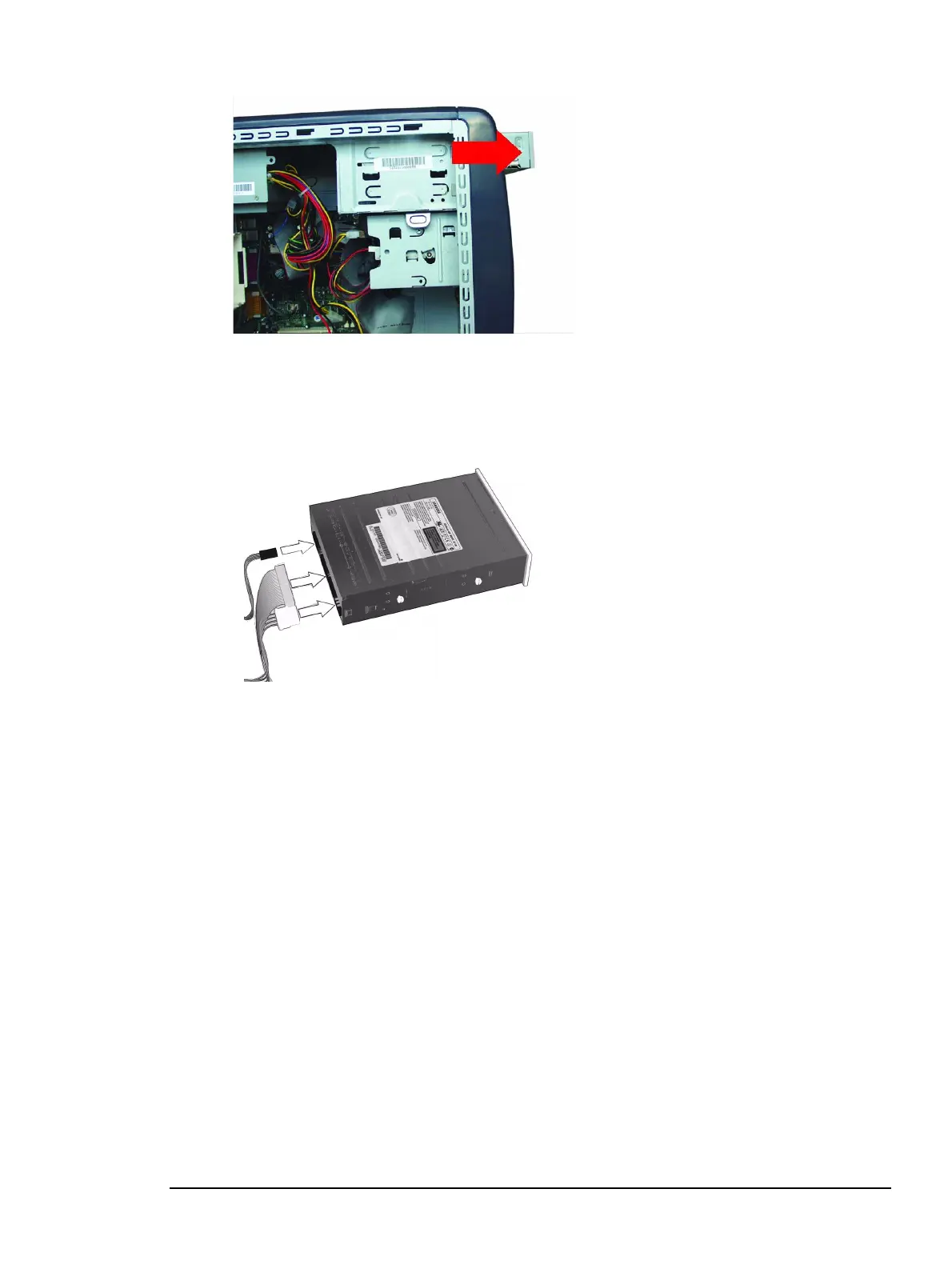

4 Slide the old drive out of the front of the PC.
5 Check that the jumpers on the rear of the new drive are set to CS (cable select) mode.
6 Slide the new drive in from the front of the PC.
7 Replace the two screws.
8 Replace the audio, data and power cables.
9 Replace the PC’s side panel and air flow guide (refer to “Removing and Replacing the Side Panel & Air
Flow Guide” on page 12).
10 Reconnect the power cord.
23
