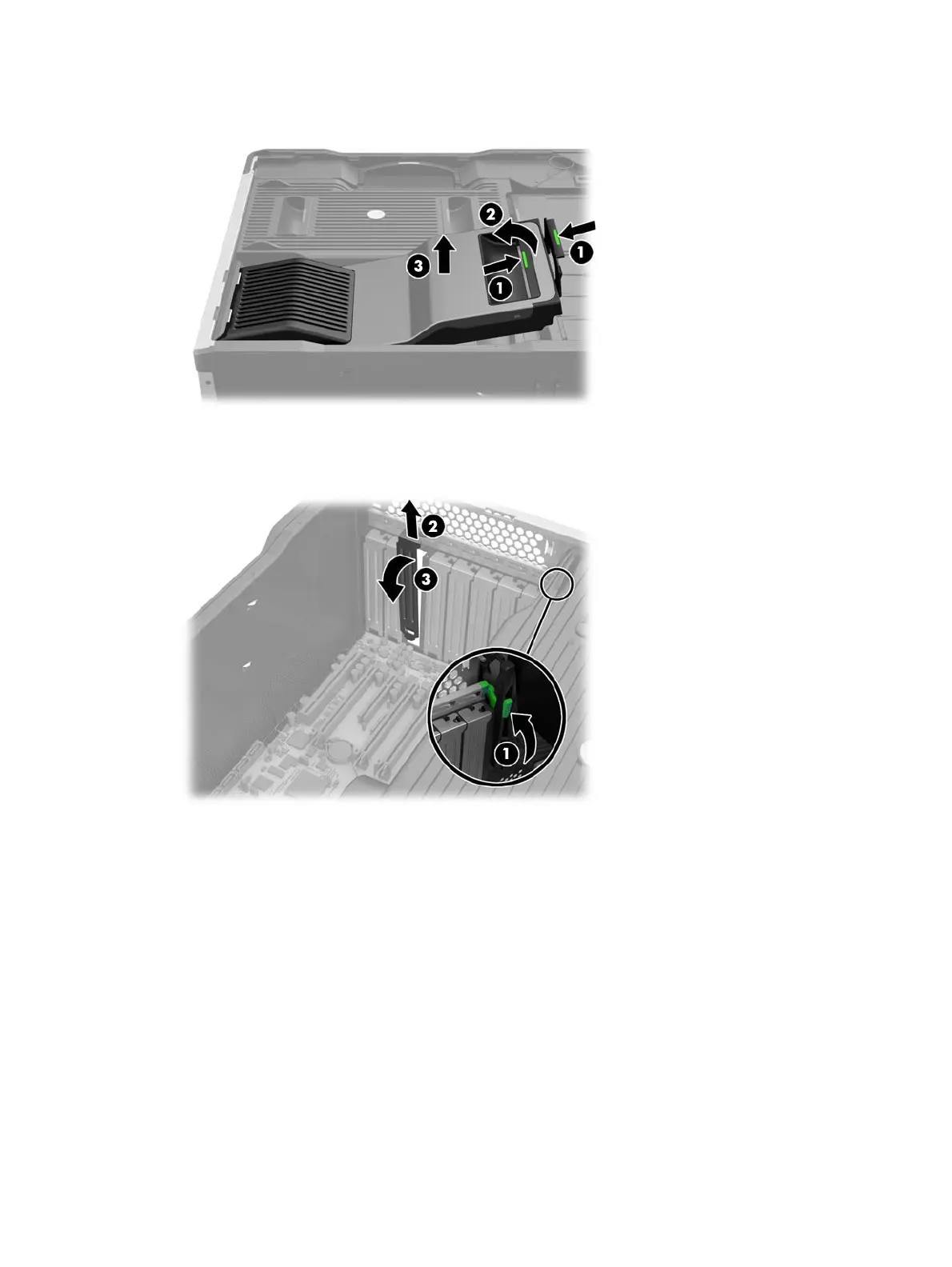

2. Lift the green lever to rotate the retention bracket (1) out of the way, raise the slot cover (2), and then
rotate the slot cover towards the inside of the chassis (3) to access either PCIe slot 1, slot 3, slot 4, or
slot 6.
14 HP Z Turbo Drive installation
