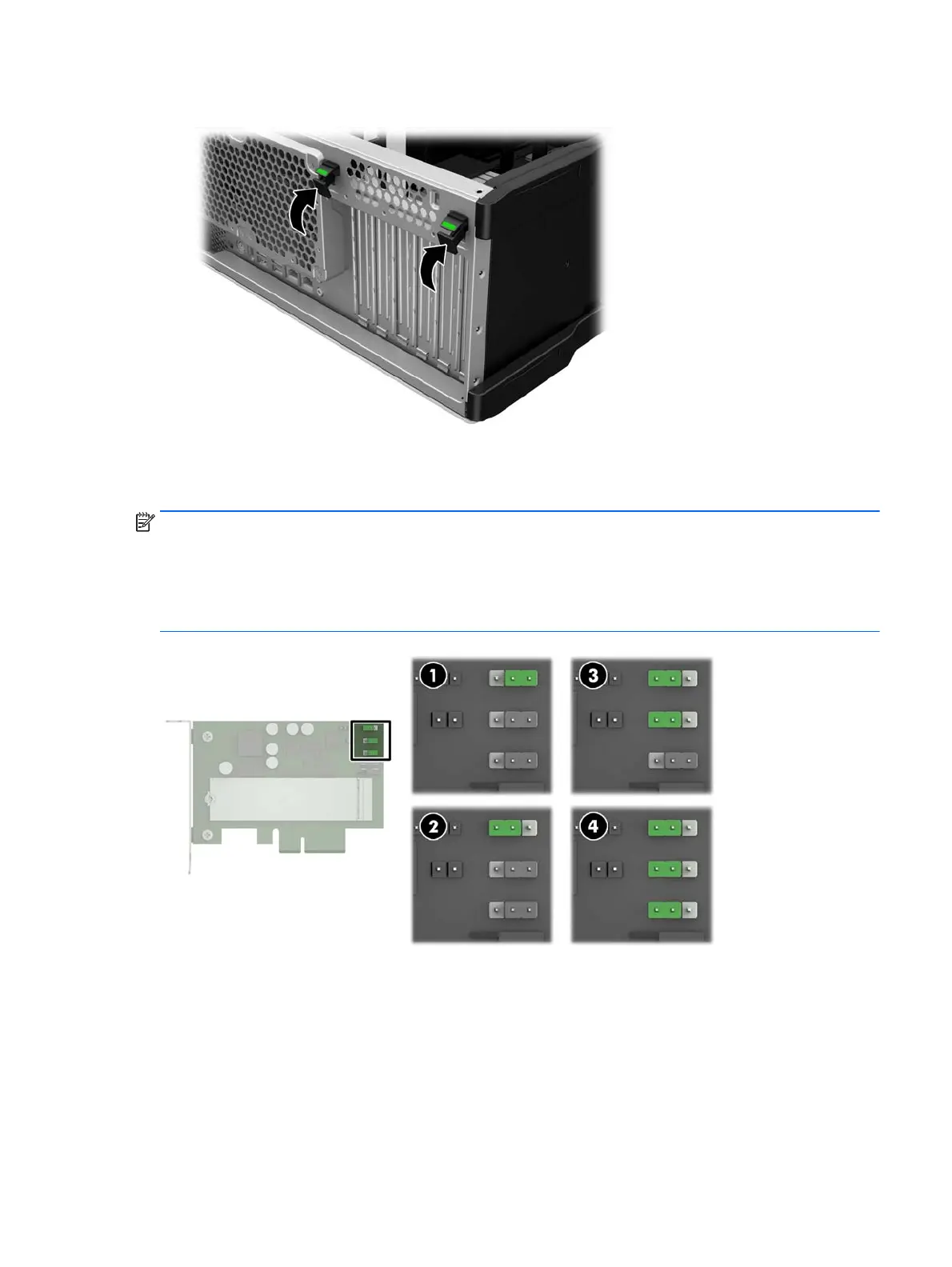

5. Press the two green PCI retention clamp tabs on the rear of the chassis up until they lock into place.
Installing the drive in an HP Z820 or HP Z840 Workstation
NOTE: If more than one HP Z Turbo Drive is installed in a workstation, the J2 jumper on one of the drives (1)
must be moved to the other position (2).
Eight drives can be identified uniquely with the three jumpers, and all drives in the workstation must be
unique.
The HP Z820 and HP Z840 support four drives only.
1. Squeeze the two green tabs together to release the retainer (1), rotate the PCI retainer (2) up, and lift it
out of the chassis (3).
Installing the drive in an HP Z820 or HP Z840 Workstation 13
