HP Z Turbo Drive - Workstation Installation Procedures; HP Z230 CMT Workstation Installation Steps

Installing the drive in an HP Z230 CMT Workstation

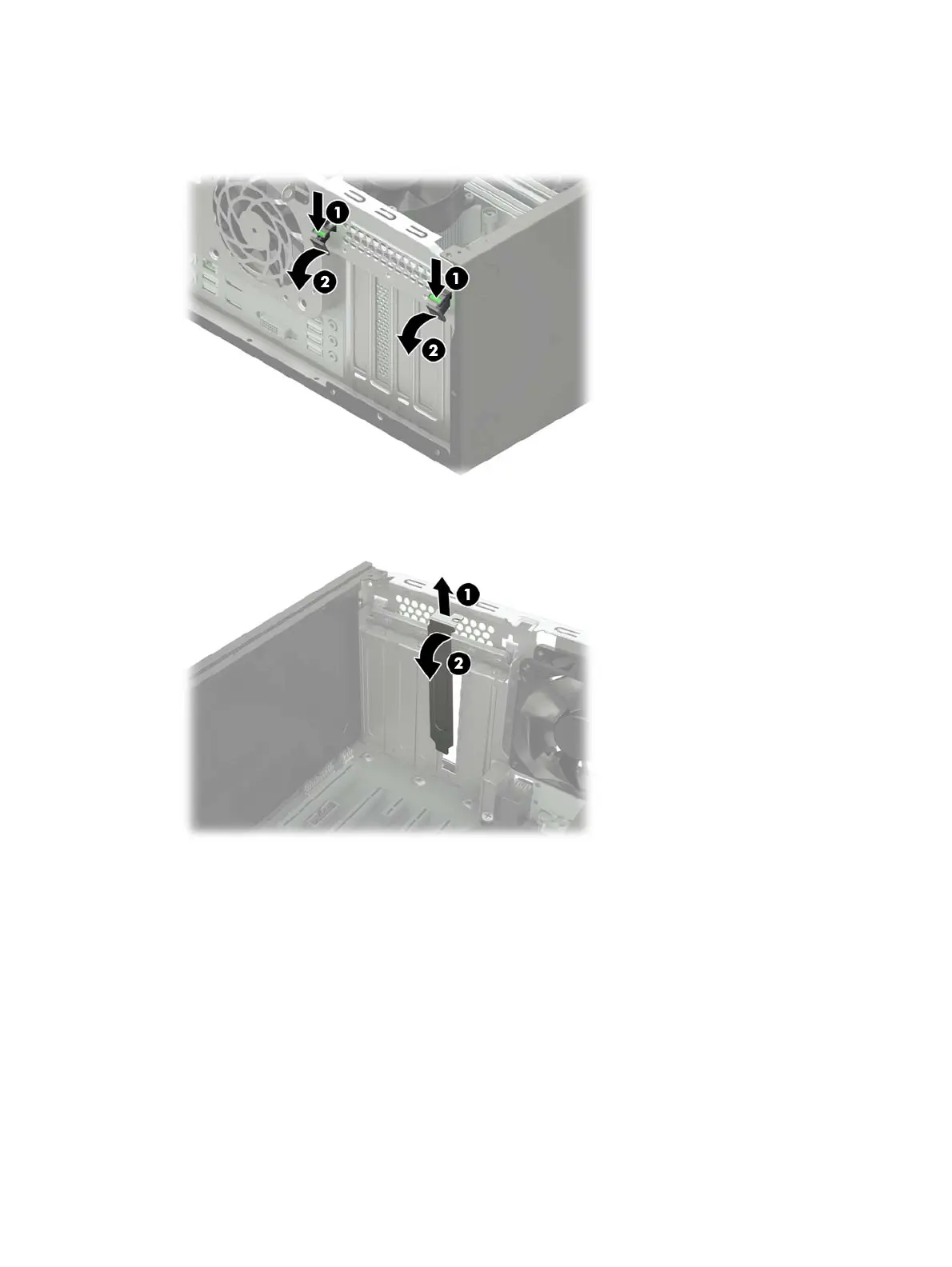

1. Press down on the two green PCI retention clips (1) located inside the workstation until they release (2).
2. Remove the slot cover to access PCIe slot 4.
4 HP Z Turbo Drive installation
