HP Z1 G3 User Manual

System board components

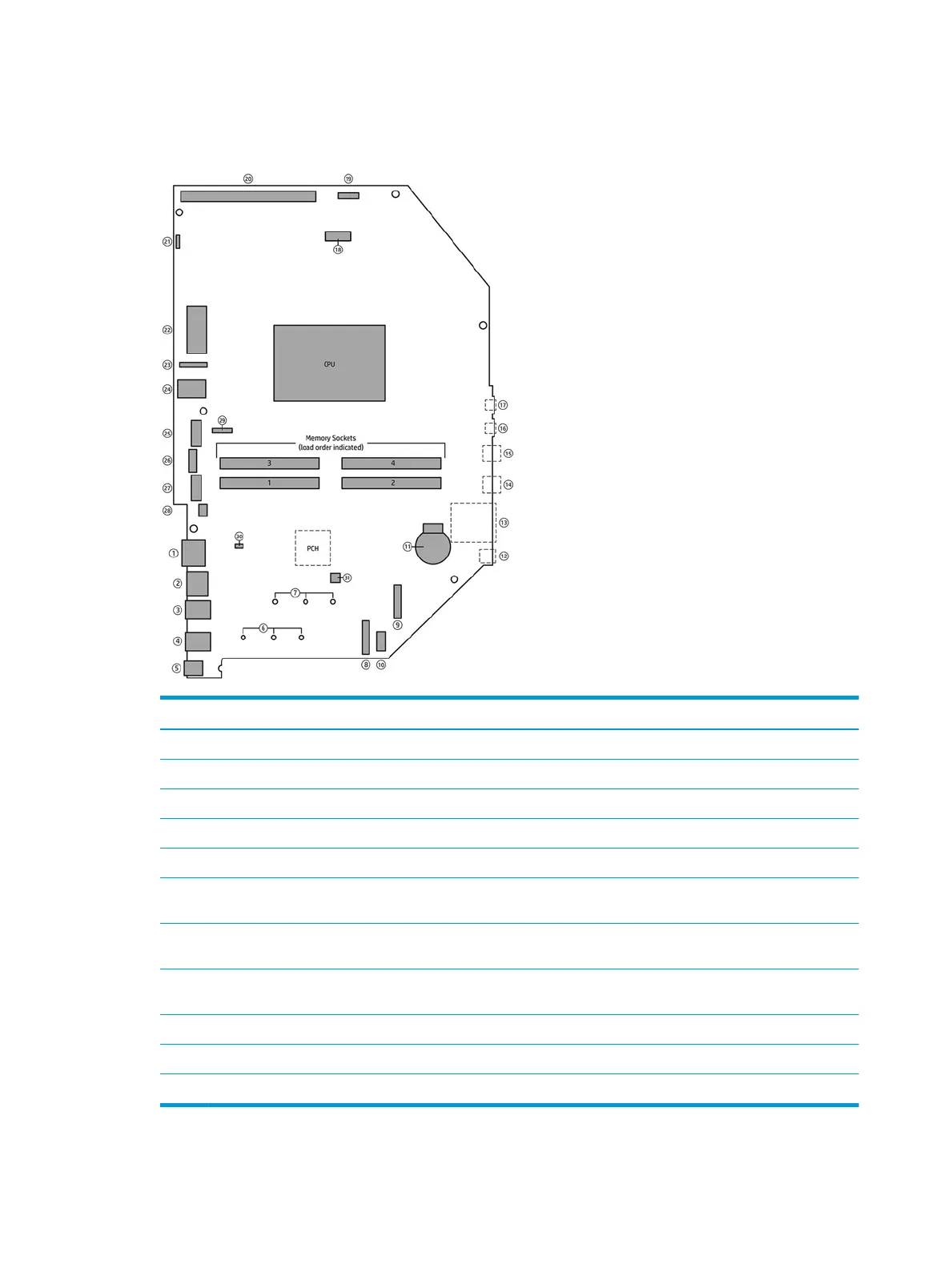

The following gure and table describe the system board component layout.
Component Component Component
1 DisplayPort 12 Headphones 22 Main power
2 RJ-45 13 Card reader 23 eDP for internal display
3 USB 3.0 (2) 14 USB 3.0 battery charging 24 USB 2.0
4 USB 3.0 (2) 15 USB 3.0 25 Hard drive 0 (SATA 3.0)
5 Rear audio 16 Type C TBT/USB 3.1 26 SATA power
6 Mounting holes for M.2
card hold-down
17 Type C TBT/USB 3.1 27 Hard drive 1 (SATA 3.0)
7 Mounting holes for M.2
card hold-down
18 M.2 2230 WLAN 28 Hood sensor
8 M.2 SSD1 socket 19 Internal display backlight
power
29 System fans
9 M.2 SSD2 socket 20 MXM 30 E49 password jumper
10 Speakers 21 Webcam 31 Clear CMOS button
11 RTC battery
System board components 5
