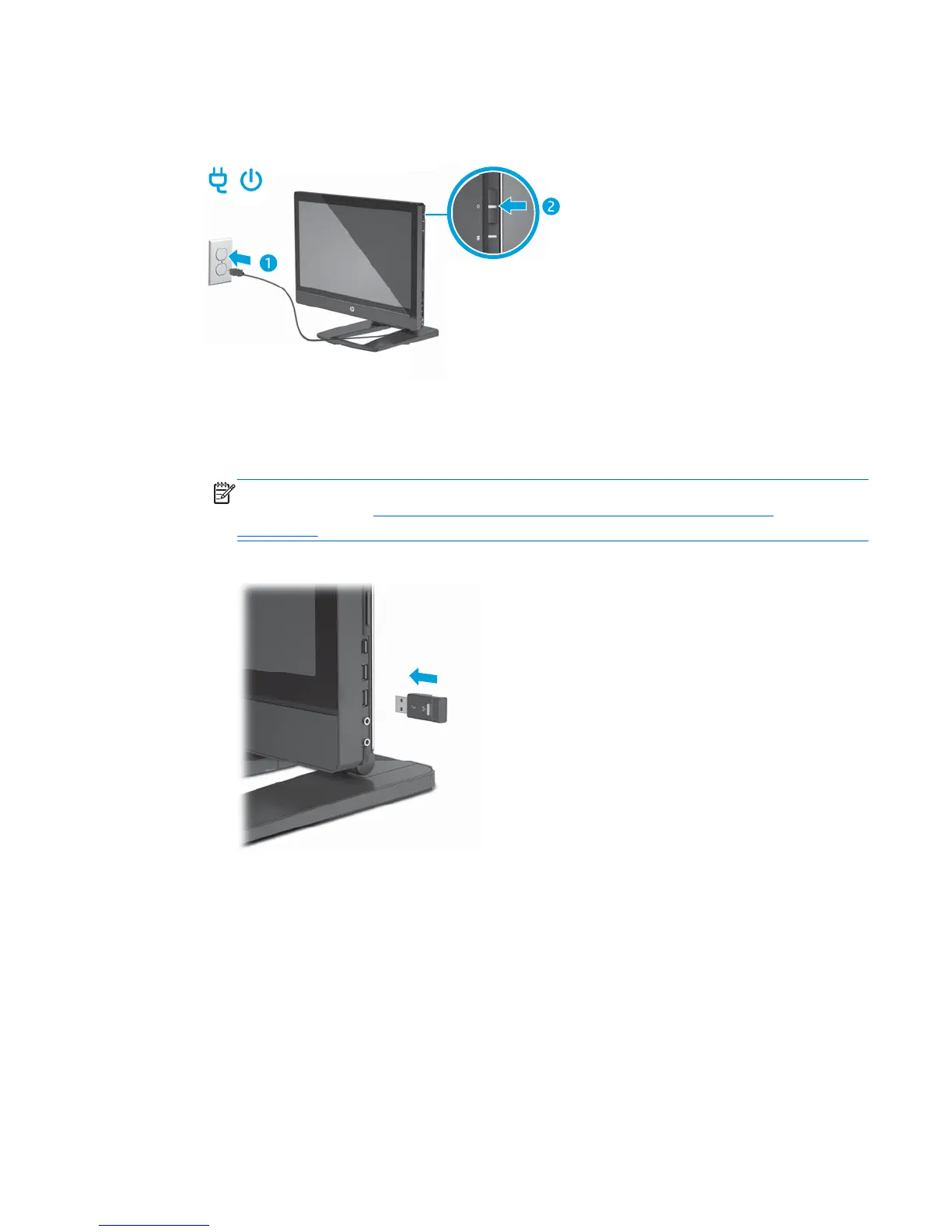

8. Connect the workstation to a grounded AC power outlet (1) and power on the unit (2).
Figure 3-7 Power on the workstation
9. If you order a wireless mouse/keyboard as an after-market option, you can connect the wireless
mouse and wireless keyboard using the following steps.
a. Insert the wireless dongle into a side USB port.
NOTE: You also have the option of installing the wireless dongle in a internal USB port. For
instructions, refer to
Installing the USB wireless dongle into the internal USB port
on page 17.
Figure 3-8 Insert dongle in unit side USB port
Setting up the workstation
15
